Description

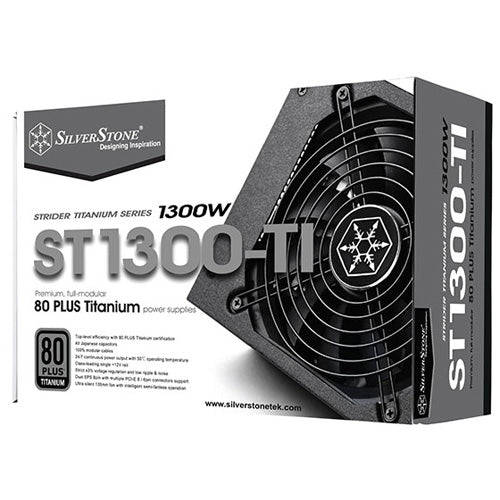

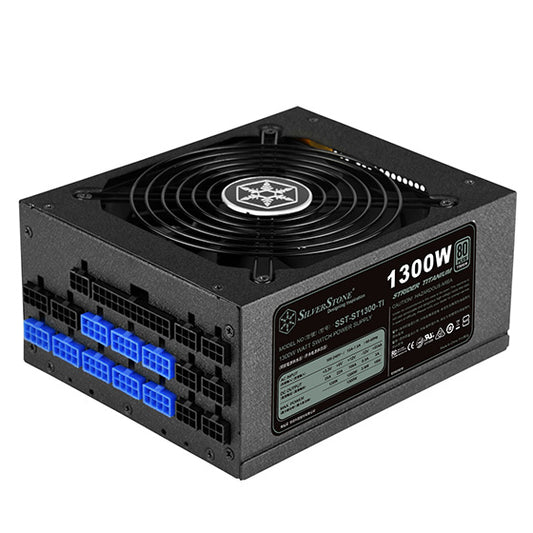

SilverStone Strider Titanium Series SST-ST1300-TI 80+ Titanium Fully Modular PSU (1300 Watt)
Features:
- Top-level efficiency with 80 PLUS Titanium certification
- All Japanese capacitors
- 100% modular cables
- 24/7 continuous power output with 50℃ operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support

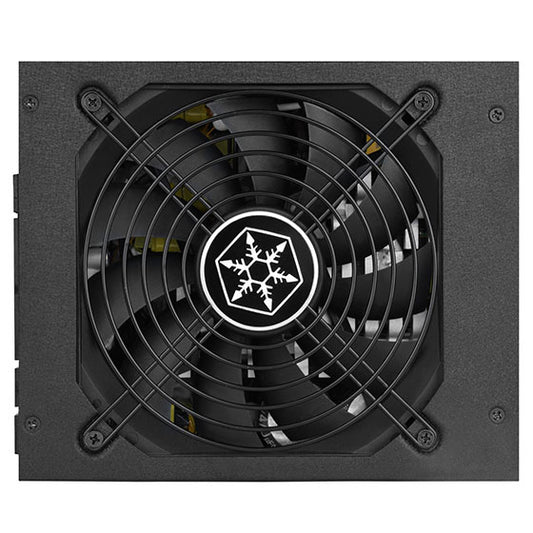

- Ultra silent 135mm fan with intelligent semi-fanless operation
Specifications:
| Model No. | SST-ST1300-TI |
| Max. DC Output | 1300W (Peak 1400W) |
| Power density | 560W per liter |
| Color | Black (lead-free paint) |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 1296W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 90% ~ 94% at 10% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0 ~ 50°C |
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
| Connectors |

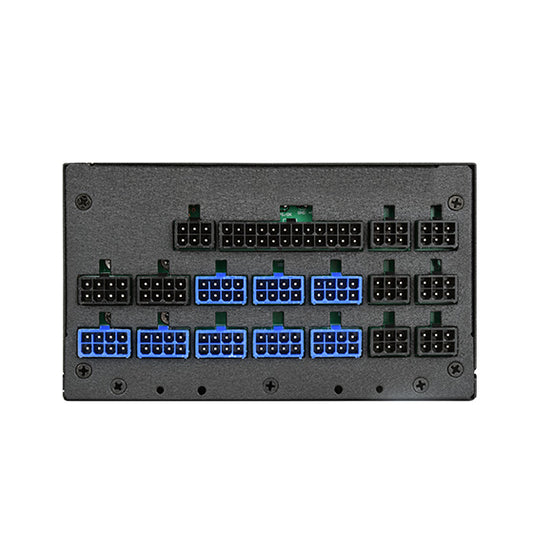

1 x 24 / 20-Pin motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 8 x 8 / 6-Pin PCIE connector ("550mm" x 8) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm) |
| Cooling System | Single 135mm silent fan |
| Form factor | ATX |
| Noise Level | 0 ~ 36 dBA |
| Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) |
| Weight | 3.96 kg |
| Certification | 80 PLUS Titanium |
| Other |
GPU Support list Compatible with ATX12V v2.4 |
