- SILVERSTONE ST 1000 PTS 1000W 80+ Platinum Fully Modular ATX 2.0 Power Supply
Description
Features of SILVERSTONE ST 1000 PTS
The SILVERSTONE ST 1000W Power Supply is Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity

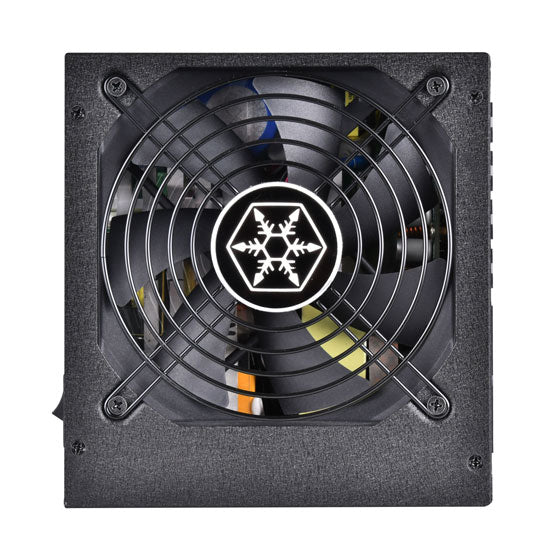

The SilverStone Power Supply has Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use
±3% regulation and low ripple & noise performance for high stability.
Strider Gold S PSUs are the first power supply models in the world to include flat 24pin cables. This cable offers much greater flexibility for tighter folding and superior cable management.
140mm depth sets new standard for high wattage PSUs with modular cables
100% modular cable design for easy removal
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
The included FF122 fan filter can help reduce dust buildup; and with its built-in magnets, it’s also extremely easy to attach and remove.
- Compact design with a depth of 140mm for easy integration
- High efficiency with 80 PLUS Platinum certification
- 100% modular cables
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Built-in silent & durable HYB fan
- FF122 magnetized fan filter included
Get the best 80 Plus Platinum computer SMPS price from us today!
Specifications of SILVERSTONE ST 1000 PTS
| Model No. | SST-ST1000-PTS |
| Max. DC Output | 1000W |
| Power density | 554W per liter |
| Color | Black（Lead-Free Paint） |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 996W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz~63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89%~92% at 20%~100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection |
Over power protection Over current protection Over voltage protection Over Temperature protection Under voltage protection Short circuit protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector（”600mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”） 1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”） 8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4） 8 x SATA connector（"600mm /150mm / 150mm / 150mm" X2） 6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2） 2 x 4-Pin Floppy connector（”150mm” X2） |
| Cooling System | Single 120mm HYB fan |
| Form factor | ATX |
| Noise Level | 18 dBA minimum |
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.98kg |
| Certification | 80 PLUS Platinum |
| Other |
GPU Support list Compatible with ATX12V v2.4 |
