- SLIVERSTONE ST85F GS 850W 80+ Gold Fully Modular ATX 2.0 Power Supply
Description
Features of SLIVERSTONE ST85F GS 850W

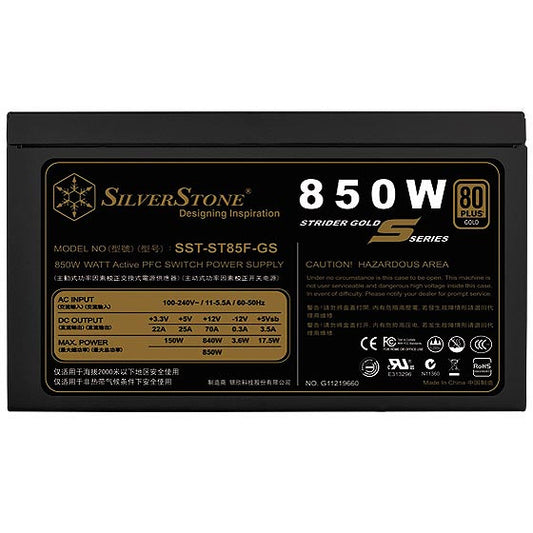

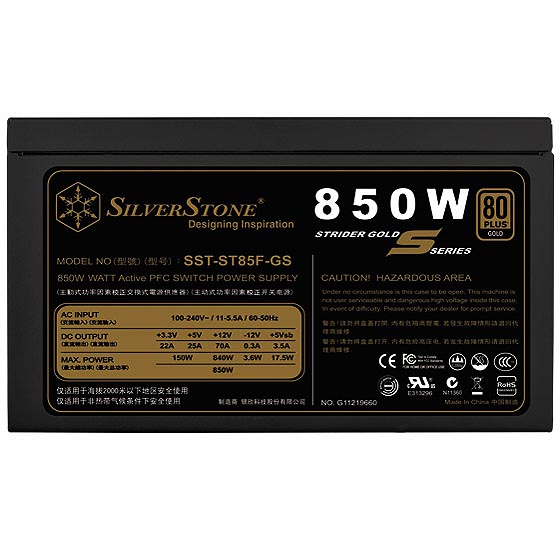

SILVERSTONE Strider Gold ST85F-GS 850W PSU is a product of Silverstone brand which is known for its amazing products with its excellent quality. SILVERSTONE Strider Gold ST85F-GS 850W Full Modular PSU is one of the most ideal power supply which supports the standard SFX form factor and ATX via the bracket which is included in it. It is the fully modular power supply which has 80 PLUS GOLD certification with 850W of wattage. It comes with 100% modular cables and comes with 3 types of power supplies that is the AT power supply, the ATX power supply and the ATX-2 power supply. First the AT power supply which were used in the old systems, second is the ATX power supply are still being used in some of the pc and the third is ATX-2 power supply which is the most common in today life.

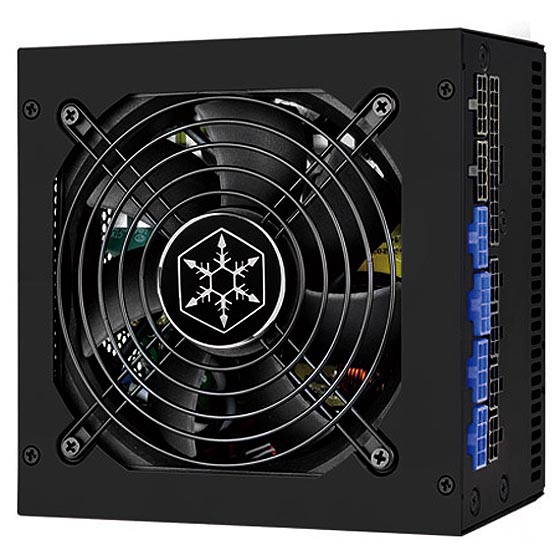

Silverstone Power Supply comes with a 92mm FDB fan with 18 dBA and a silent operation which has very low noise perfect for office environments. . It has a single class leading +12V rail with an active PFC Circuit. The MTBF is 100,000 hours with efficiency ranging from 87% - 90% at 20% - 100% of loading. It comes with strict +/- 3% (V1.0) and +/- 2.5% (V2.0) voltage regulation with low ripple and low noise. The maximum DC output is 850W with 471W per liter of power density. The dimensions of the PSU are 150mm (Weight) x 86 mm (height) x 150 mm (depth) with 2.5 kg of weight with input voltage 90 – 264 V.
- Compact design with a depth of 140mm for easy integration (V2.0)
- Compact design with a depth of 150mm for easy integration (V1.0)
- Strict ±2.5% voltage regulation and low ripple & noise (V2.0)
- Strict ±3% voltage regulation and low ripple & noise (V1.0)
- 24/7 continuous power output with 40℃ operating temperature
-
80 PLUS Gold certification
- 100% modular cables
- Class-leading single +12V rail
- Silent running 120mm fan with 18dBA minimum
Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
4 x 8 / 6-Pin PCIE connector(550mm)
8 x SATA connector(600mm / 150mm / 150mm / 150mm x 2)
6 x 4-Pin Peripheral connector (600mm / 150mm / 150mm x 2)
2 x 4-Pin Floppy connector(600mm / 150mm / 150mm / 150mm x 2)
Protection
- Over current protection
- Over power protection
- Over voltage protection
- Over Temperature Protection
- Under voltage protection
- Short circuit protection
- Compact design with a depth of 150mm for easy integration
- 80 PLUS Gold certification
- 100% modular cables
- 24/7 continuous power output with 40 degreeC operating temperature
- Class-leading single 12V rail
- Strict /-3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA minimum
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SLIVERSTONE ST85F GS 850W
Type : | ATX |
Maximum Power : | 850W |
Fans : | Single 120mm silent fan |
PFC : | Active |
Main Connector : | 24 / 20-Pin |
12V Rails : | Single |
PCI-Express Connector : | 4 x 8 / 6-Pin |
SATA Power Connector : | 8 |
Modular : | Full Modular |
Efficiency : | 87%~90% at 20%~100% loading |
Energy-Efficient : | 80 PLUS GOLD Certified |
Over Voltage Protection : | Yes |
Input Voltage : | 90 – 264 V |
Input Frequency Range : | 47 – 63 Hz |
Output : | 3.3V@22A, 5V@25A, 12V1@70A, 5VSB@3.5A, -12V@0.3A |
MTBF : | >100,000 Hours |
Dimensions : | 150 mm (W) x 86 mm (H) x 150 mm (D) |
Weight : 2.5 kg | 2.5 kg |
