- SILVERSTONE ST60F-ES230 80+ White Non Modular Power Supply (600 W)
Description
Features of SILVERSTONE ST60F ES230
The SILVERSTONE SST ST60F ES230 is 80 PLUS 230V EU 600W Power Supply
The Silverstone Power Supply has Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

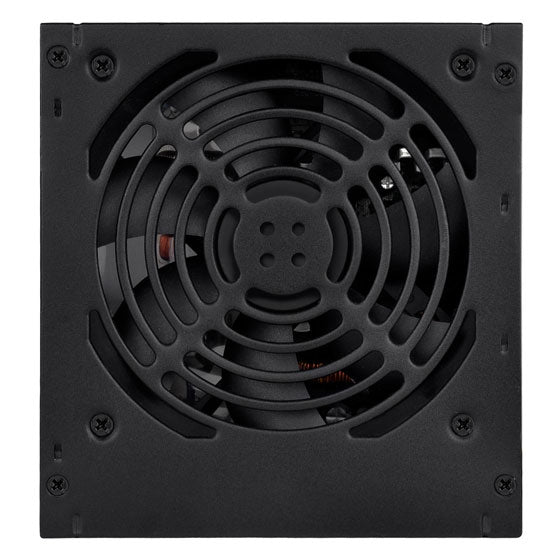

Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- PCI-E 8pin and PCI-E 6pin connector support
- Silent running 120mm fan with 18dBA
Get the best 80 Plus White computer SMPS price from us today!
Specifications of SILVERSTONE ST60F ES230
Model No. | SST-ST60F-ES230 |
Max. DC Output | 600W |
Power density | 332W per liter |
Color | Black(Lead-Free Paint) |
Combined +3.3V & +5V | 120W |
Combined +12V | 552W |
Input Voltage | 180V~264V |
Input Frequency Range | 47Hz~63Hz |
PFC | Active PFC(PF>0.9 at full load) |
Efficiency | 82% ~ 85% at 20% ~ 100% loading |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 40°C |
Protection |
Over power protection Over voltage protection Short circuit protection |
Connectors |
1 x 24 / 20-Pin motherboard connector(500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 2 x 8 / 6-Pin PCIE connector("500mm / 150mm") 4 x SATA connector("500mm / 150mm" x 2) 3 x 4-Pin Peripheral connector(500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm) |
Cooling System | Single 120mm silent fan |
Form factor | ATX |
Noise Level | 18 dBA minimum |
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
Weight | 1.41 kg |
Certification | 80 PLUS |
Other |
GPU Support list Compatible with ATX12V v2.4 |
