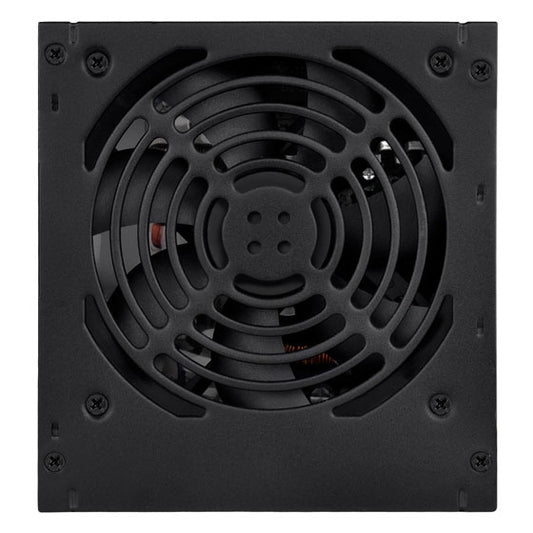

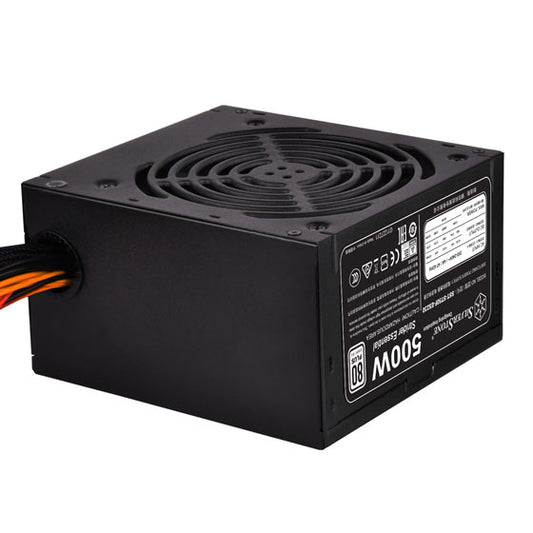

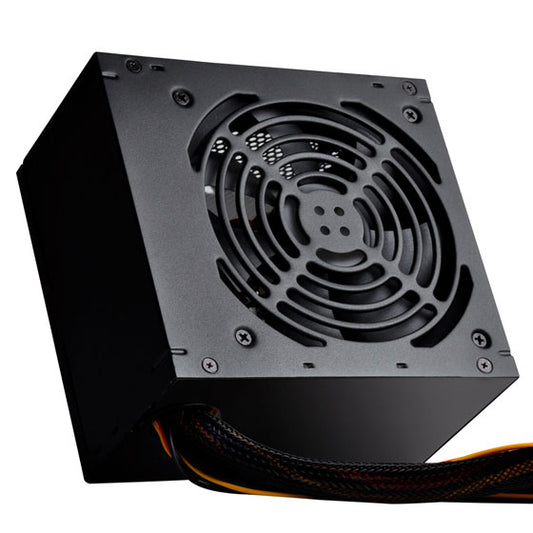

- SILVERSTONE ST50F ES230 500W Non Modular ATX 2.0 Power Supply
Description
Features of SILVERSTONE ST50F ES230
The stunning and SILVERSTONE ST50F-ES230 500 Watt computer SMPS has four SATA Connectors. Along with 2* (6+2) PCIe Connectors. The Mean Time Between Failures (MTBF) of a fascinating 100,000 hours is provided. SilverStone ST50F-ES230 500 Watt PSU is equipped with a silent 120mm fan for smooth and quiet operations. It offers more stability and reliability as it provides better cooling to the system. It is designed and tested to accurate standards for trouble-free installation and smooth operation. The dimensions of SilverStone ST50F-ES230 500W Power Supply are 150 mm (W) x 86 mm (H) x 140 mm (D). The amazing Silverstone Power Supply comes with a warranty of five years.
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- PCI-E 8pin and PCI-E 6pin connector support
- Silent running 120mm fan with 18dBA
Specifications of SILVERSTONE ST50F ES230
| Model No. | SST-ST50F-ES230 |
| Max. DC Output | 500W |
| Power density | 277W per liter |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 456W |
| Input Voltage | 180 ~ 264Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC.（PF>0.9 at Full Load） |
| Efficiency | 82%~85% @ 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection |
Over power protection Over voltage protection Short circuit protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector（500mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（750mm） 2 x 8 / 6-Pin PCIE connector（"500mm / 150mm"） 2 x SATA connector and 1 x 4-Pin Peripheral connector and 1 x 4-Pin Floppy connector （500mm / 150mm / 150mm / 150mm） 2 x SATA connector and 2 x 4-Pin Peripheral connector（500mm / 150mm / 150mm / 150mm） |
| Cooling System | Silent 120mm fan |
| Noise Level | 18 dBA minimum |
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
| Weight | 1.31kg |
| Certification | 80 PLUS |
| Other |
GPU Support list Compatible with ATX12V v2.4 |
