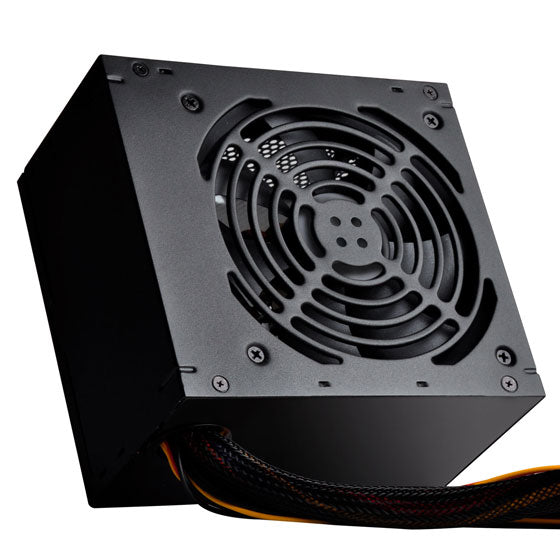

- SILVERSTONE ST45F-ES230 450 80+ Bronze Non Modular Power Supply (450 W)
Description
Features of SILVERSTONE ST45F-ES230
To reduce the clutter of cables on your desk and make it clean and tidy, the SILVERSTONE ST45F-ES230 450W Power Supply is designed with the Full modular cable design. The efficient cooling system has a Single 92mm silent fan and a Single 80mm silent fan. The fabulous SilverStone ST45F-ES230 450 Watt 80 Plus Certified PSU is specially designed to reduce heat wastage and save electricity.
SilverStone ST45F-ES230 450 Watt 80 Plus Certified PSU comes with a warranty of three years.
The Silverstone Power Supply has Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
Compact 140mm depth design for easier installation in small from factor.
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Active PFC Circuitry
- PCIe 8pin and PCIe 6pin connector support
- Silent running 120mm fan with 18dBA
Get the best 80 Plus Bronze computer SMPS price from us today!
Specifications of SILVERSTONE ST45F-ES230
Model No. | SST-ST45F-ES230 |
Max. DC Output | 450W |
Power density | 249W per liter |
Color | Black(Lead-Free Paint) |
Combined +3.3V & +5V | 100W |
Combined +12V | 408W |
Input Voltage | 180 ~ 264 Vrms |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | Active PFC.(PF>0.9 at Full Load) |
Efficiency | 82%~85%(20% to 100% loading) |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 40°C |
Protection |
Over power protection Over voltage protection Short circuit protection |
Connectors |
1 x 24 / 20-Pin motherboard connector(500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(600mm) 2 x 8 / 6-Pin PCIE connector(500mm / 150mm) 6 x SATA connector("500mm / 150mm" x 3) 3 x 4-Pin Peripheral connector(500mm / 150mm / 150mm) |

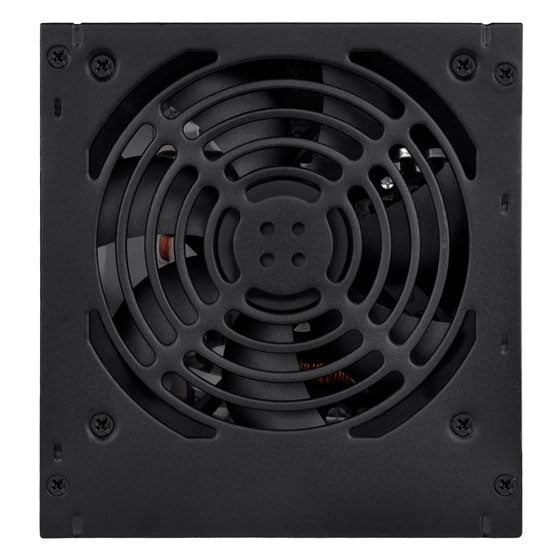

Cooling System | Single 120mm silent fan |
Form factor | ATX |
Noise Level | 18dBA minimum |
Dimension |
150 mm (W) x 86 mm(H) x 140 mm(D) 5.91" (W) x 3.39" (H) x 5.51" (D) |
Weight | 1.29 kg |
Other |
GPU Support list Compatible with ATX12V v2.4 |
