- SILVERSTONE SST-SX600-G 600W SFX 80+ Gold Fully Modular Power Supply (600 W)
Description
Features of SILVERSTONE SST-SX600-G
SILVERSTONE SST-SX600-G 600W SFX GOLD 600W Power Supply is an intelligent semi fan-less operation PSU which supports the standard SFX form factor and ATX via the bracket which is included in it. SILVERSTONE SST-SX600-G 600W SFX GOLD Full Modular PSU is the fully modular power supply which has 80 GOLD certification with 600W of wattage. Silverstone is a brand that is known for its amazing products with its excellent quality. SilverStone Power Supply one of the most ideal which has 3 types of power supplies that is the AT power supply, the ATX power supply and the ATX-2 power supply. First the AT power supply which were used in the old systems, second is the ATX power supply are still being used in some of the pc and the third is ATX-2 power supply which is the most common in today life.
They are equipped with cables which are flat and provides a greater flexibility with semi modular cables and give a better cable management. It can work continuously 24 x 7 with a continuous power output at 40 degree C temperature. It has 80 PLUS certification with a high efficiency which can work 24 x 7 in a continuous power output with the maximum temperature of 40 degree C. it has a single class leading +12V rail with an active PFC Circuit with PF > 0.95 at the full load. The PSU supports dual PCIe 8 or 6 pin connector with input voltage of 90V – 264V. The MTBF is 100,000 hours with efficiency ranging from 87% - 90% at 20% - 100% of loading. The maximum DC output is 600W with 756W per liter of power density.
- Intelligent semi-fanless operation
- Supports standard SFX form factor and ATX via included bracket
- High efficiency with 80 PLUS Gold certification
- 100% modular cables
- All cables made with flexible flat arrays
- 600W continuous power output at 40? operating temperature rated for 24/7 operation
- Class-leading single 12V rail with 50A
- Strict ±3% voltage regulation and low ripple & noise
- Supports dual PCI-E 8/6pin connectors
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SILVERSTONE SST-SX600-G
Brand | SILVERSTONE |
Model | SST-SX600-G |
Series | SFX |
Type | ATX12V / EPS12V |
Maximum Power | 600W |
Fans | Single 80mm silent fan |
PFC | Active PFC (PF>0.95 at full load) |
Main Connector | 20 4Pin |
12V Rails | Single |
PCI-Express Connector | 2 x 6 2-Pin |
SATA Power Connector | 4 |
Haswell Support | Yes |
Efficiency | 87% – 90% (20% to 100% loading) |
Energy-Efficient | 80 PLUS GOLD Certified |
Over Voltage Protection | Yes |
Overload Protection | Yes |
Input Voltage | 90 – 264 V |
Input Frequency Range | 47 – 63 Hz |

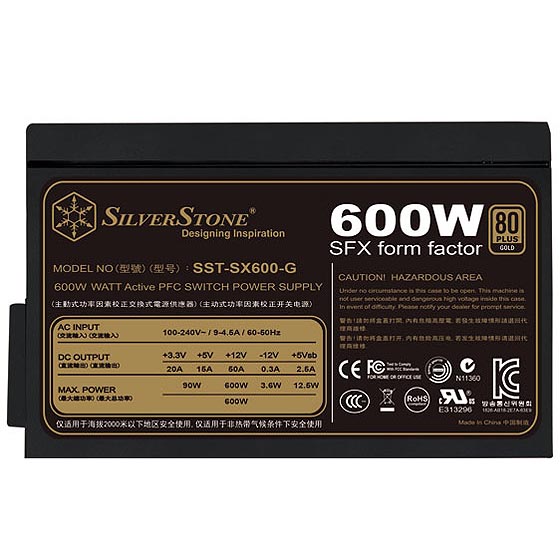

Output | 3.3V@20A, 5V@15A, 12V@50A, 5VSB@2.5A, -12V@0.3A |
MTBF | >100,000 Hours |
Dimensions | 2.50″ x 4.92″ x 3.94″ (H x W x D) |
Weight | 3.20 lbs. |
Connectors | 1 x 24 / 20-Pin motherboard connector (300mm) |
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) | |
2 x 8 / 6-Pin PCIE connector (400mm / 150mm) | |
4 x SATA connector (300mm / 200mm / 100mm / 100mm) | |
2 x 4-Pin Peripheral connector (300mm / 200mm) | |
1 x 4-Pin Floppy connector (300mm / 200mm / 200mm) |
