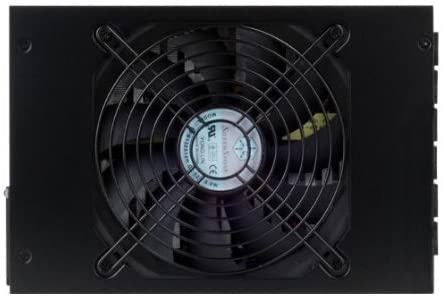

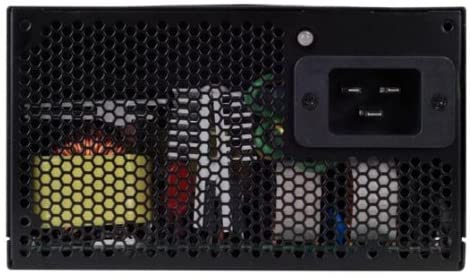

- SILVERSTONE SST ST 1500W 80+ Silver Fully Modular ATX 2.0 Power Supply
Description
Features of SILVERSTONE SST ST 1500W
The SILVERSTONE SST-ST1500 1500W Power Supply is a product of Silverstone brand which is known for its amazing products with its excellent quality. Silverstone SST-ST1500 1500W Power Supply has a 100% modular cable design which can used with the short cable kit such as the Silverstone PP05-E or for an easy removal in a case in which the cables are routed and tied down. It comes with a powerful class leading eight +12V rail design with 110A (peak up to 120A) which is perfect of future high end component upgrades or the overclocking and also has a strict +/- 3% voltage regulation with low ripple and low noise for high stability and greater performance. It can work continuously on 1500W 24 x 7 with a continuous power output at 40 degree C temperature and supports ATX 12V 2.3 & EPS 12V.
It has 135mm fan with air penetration and a semi-fanless operation with an intelligent RPM control which gives cool performance and silent operation with minimum 19 dBA and has 100% modular cable design which can used with the short cable kit such as the Silverstone PP05-E or for an easy removal in a case in which the cables are routed and tied down. The PSU supports Four PCIe 8 pin, eight PCIe 6 pin and twelve SATA connectors with an active PFC. Its maximum DC output is 1500W (peak 1600W) with 529W per liter of power density. The input voltage ranges from 90V – 264V with 47 Hz – 63 Hz of input frequency. The dimensions of the PSU are 150mm (Weight) x 86 mm (height) x 220 mm (depth) with 4.2 kg of weight . SilverStone Power Supply has 5 years of manufacturer warranty.
- 1500W continuous and 1600W peak power
- 100% modular cables with cable bag
- Efficiency 85%~88% at 20%~100% loading with 80 PLUS Silver certification
- Class-leading eight 12V rails with 110A (Peak up to 120A)
- 1500W continuous power output with 40°C operating temperature
- Strict ±3% voltage regulation
- Silent running 135mm fan with 19dBA minimum
- Japanese main capacitors
- Four PCI-E 8pin, eight PCI-E 6pin, and twelve SATA connectors support
- Supports ATX 12V 2.3 & EPS 12V
- Active PFC
Get the best 80 Plus Silver computer SMPS price from us today!
Specifications of SILVERSTONE SST ST 1500W
Color | Black (Lead-Free Paint) |
Combined 3.3V & 5V | 280W |
Combined 12V | 1320W/110A (Peak 120A) |
Input Voltage | 90V~264V |
Input Frequency Range | 47Hz ~ 63Hz |
PFC | Active PFC(PF>0.95 at Full Load) |
Efficiency | 85%~88% at 20%~100% loading |
MTBF | 100,000 hours at 25℃(at Full Load) |
Operating temperature | 0°C ~ 40°C |
Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection No Load Protection |
Connectors |
1 x 24 / 20-Pin Motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8-Pin EPS 12V connector (750mm) 4 x 8/6-Pin PCIE connector (550mm) 4 x 6-Pin PCIE connector (550mm / 150mm) 12 x SATA connector (500mm / 250mm / 250mm) 12 x 4-Pin Peripheral connector (500mm / 250mm / 250mm) 4 x 4-Pin Floppy connector (500mm / 250mm / 250mm / 150mm) |
Cooling System | Silent 135mm fan |
Form factor | ATX PS/2 |
Noise Level | 19dBA-34dBA |
Dimension |
150 mm (W) x 86 mm (H) x 220 mm (D) 5.91" (W) x 3.39" (H) x 8.66" (D) |
Weight | 4.2Kg |
Certification | 80 PLUS Silver |
Other | GPU Support list Compatible with ATX12V v2.4 |
Note | Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. |
