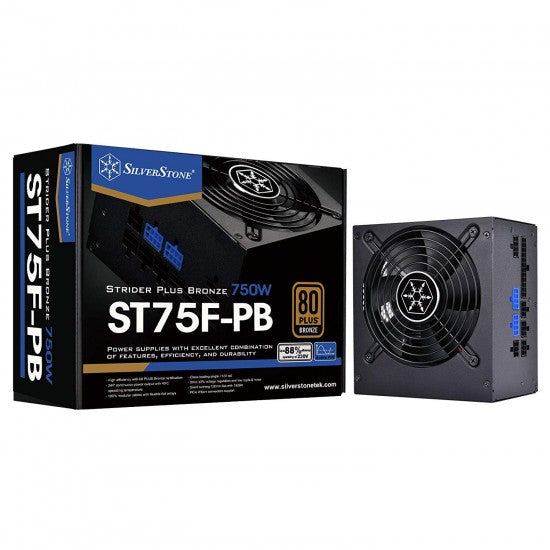

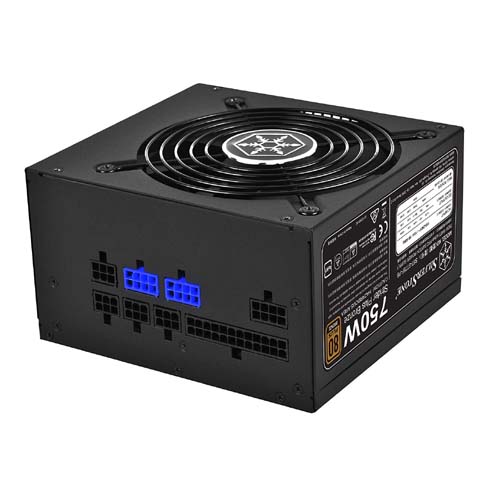

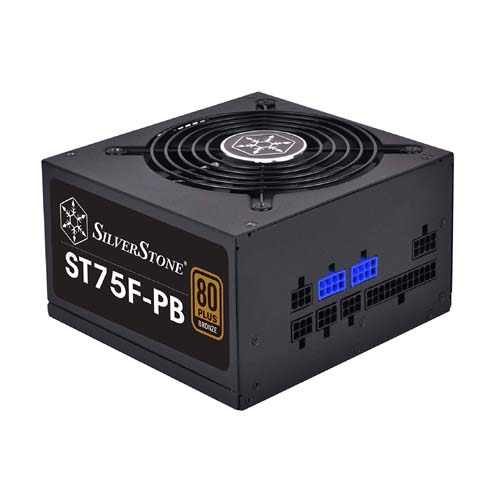

- SILVERSTONE ST75F-PB 80+ Bronze Fully Modular Power Supply (750 W)
Description
Features of SILVERSTONE ST75F-PB
SILVERSTONE Strider plus ST75F-PB 750W Power Supply is 100% modular and comes with a built in fan of 120 mm size which has 18 dBa with an excellent flow of air and a very low noise level which is perfect for house and office fields. Silverstone Strider plus ST75F-PB 750W Bronze Full Modular PSU is improved to increase the effectiveness of the residual heat dissipation. It is designed with 80 Plus gold level of efficiency which reduces the wasted heat and saves the maximum amount of electricity. It also has a single and powerful +12V rail design with 3% of voltage regulation and low ripple which enables the users for a non-stop usage of the PSU with a stable and very reliable performance which is perfect for future component upgrades or the overclocking.
They are equipped with cables which are flat and provides a greater flexibility with semi modular cables and give a better cable management. It can work continuously 24 x 7 with a continuous power output at 40 degree C temperature. The PSU supports multiple one on one PCIe 8 or 6 pin connectors has also has 5 years of manufacturer warranty. The dimensions are 16 cm of length x 15 cm of width x 8.6 cm of height and weighs 2 kg. The maximum DC output for this PSU is 750W with 415 W per liter of power density. The input voltage is 103 ~ 264 Vrms with MTBF of 100,000 hours. It has an Active PFC with PF > 0.9 at full load and efficiency ranging from 82% - 85% at 20% - 1000% of loading.
Designed for 80 PLUS Bronze level of efficiency to reduce wasted heat and save on electricity.
The Silverstone Power Supply has 100% moudlar cable design for use with short cable kit such as SilverStone’s PP05-E or for easy removal in a case with cable routed and tied down.
Flexible flat array cables have much greater flexibility to allow for tighter folding and management of cables.
140mm depth for easy integration into nearly any PC.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.

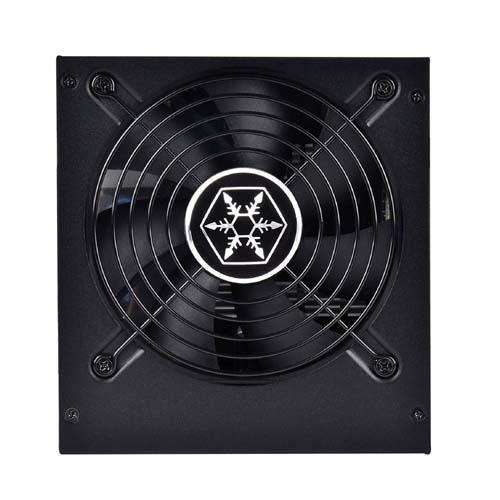

Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 40℃ operating temperature
- 100% modular cables with flexible flat arrays
- Class-leading single 12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Silent running 120mm fan with 18dBA
- PCIe 8/6pin connectors support
Get the best 80 Plus Bronze computer SMPS price from us today!
Specifications of SILVERSTONE ST75F-PB
Model No. | SST-ST75F-PB |
Max. DC Output | 750W |
Power density | 415W per liter |
Load Range | |
3.3V 5V 12V 5VSB -12V Max.(Amps) 18A 18A 59.2A 2.5A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0.2A 0.1A 0A 0A Range (%) ±3% ±3% ±3% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 50mV 50mV 80mV 50mV 100mV |
|
Color | Black(Lead-Free Paint) |
Combined 3.3V & 5V | 100W |
Combined 12V | 710W |
Input Voltage | 103 ~ 264 Vrms |
Input Frequency Range | 47Hz~63Hz |
PFC | Active PFC(PF>0.9 at full load) |
Efficiency | 82%~85% at 20% ~ 100% loading |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 40°C |
Protection |
Over power protection Over current protection Over voltage protection Over temperature protection Under voltage protection Short circuit protection |
Connectors |
1 x 24 / 20-Pin motherboard connector(600mm) 2 x 8 / 4-Pin EPS / ATX 12V connector(750mm / 150mm) 4 x 8/6-Pin PCIe connector(”550mm / 150mm” x 2) 8 x SATA connector(”600mm / 150mm / 150mm / 150mm” x 2) 3 x 4-Pin peripheral connector (600mm / 150mm / 150mm) 1 x 4-Pin floppy connector(150mm) |
Cooling System | Single 120mm silent fan |
Form factor | ATX |
Noise Level | 18 dBA minimum |
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) 5.91″ (W) x 3.39″ (H) x 5.51″ (D) |
Weight | 1.51 kg |
Certification | 80 PLUS Bronze |
Other | GPU Support list Compatible with ATX12V v2.4 |
