- SilverStone DA750 80+ Gold Fully Modular Power Supply (750 W)
Description

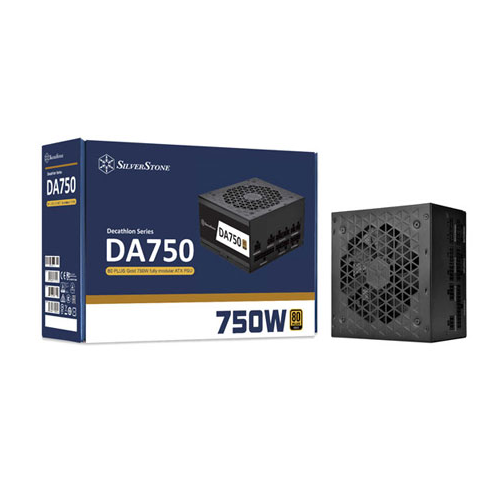

SilverStone DA750 Gold Fully Modular PSU (750 Watt)
Features :
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm FDB fan with 18 dBA minimum
- Japanese electrolytic capacitors
- Specially designed cover increases effectiveness of residual heat dissipation
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise
Specifications :
| Product No. | SST-DA750-G |
| Max. DC Output | 750W |
| Power density | 415W per liter |
| Model (safety certification) | SST-AX0750MCGD-A |
| Color | black (lead-free paint) |
| Combined +3.3V & +5V | 110W |
| Combined +12V | 744W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | 0.9 at full load)"}">Active PFC (PF>0.9 at full load) |
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0 ~ 40°C |
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Over temperature protection |
| Connectors |
1 x 24 / 20-Pin motherboard connector (600mm) 2 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 2) 2 x 8 / 6-Pin PCIe connector (“650mm” x 2) 2 x 8 / 6-Pin PCIe connector (“650mm / 150mm”) 8 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 2) 6 x 4-Pin Peripheral connector + 2 x 4-Pin Floppy adapter connector (“600mm / 150mm / 150mm / 150mm” x 2) |
| Cooling System | Silent 120mm FDB fan |
| Form factor | ATX (PS2) |
| Noise Level | 18 dBA minimum |
| Dimension |
150mm (W) x 86mm (H) x 140mm (D) 5.91″ (W) x 3.39″ (H) x 5.51″ (D) |
| Weight | 1.44 kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support list Compatible with ATX12V v2.4 |
Load Range
| +3.3V | +5V | +12V | +5VSB | -12V | |
| Max.(Amps) | 20A | 20A | 62A | 2.5A | 0.3A |
| Peak (Amps) | / | / | / | / | 3.0A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±3% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 40mV | 30mV | 40mV |
