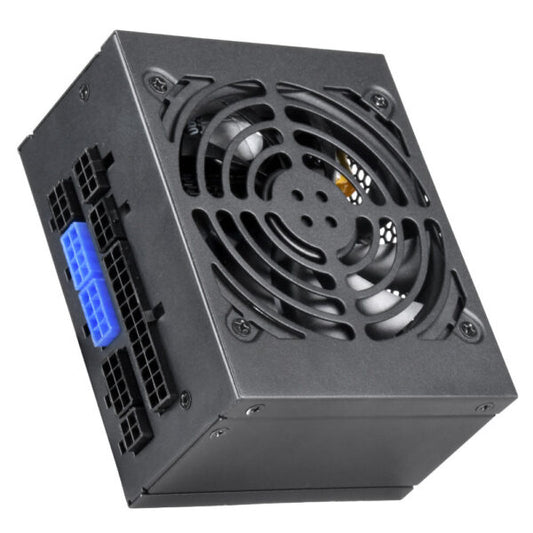

- SILVERSTONE SST-SX500-G 500W SFX 80+ Gold Fully Modular Power Supply (500 W)
Description
Features of SILVERSTONE SST-SX500-G
SILVERSTONE SST-SX500-G 500W Power Supply is the power supply which comes with a 92mm FDB fan with 18 dBA and a silent operation which has very low noise perfect for office environments. SILVERSTONE SST-SX500-G 500W SFX GOLD Full Modular PSU has the highest efficiency with 80 PLUS GOLD Certification. It has 100% modular cables and which supports standard SFX form factor and also ATX via an included bracket. It has a single class leading +12V rail with an active PFC Circuit of load > 0.9 percent at full load. The PSU supports dual PCIe 8 or a dual PCIe 6 pin connector with input voltage of 90V – 264V. They are equipped with cables which are flat and provides a greater flexibility with semi modular cables and give a better cable management.
It can work continuously 24 x 7 with a continuous power output at 40 degree C temperature. The MTBF is 100,000 hours with efficiency ranging from 87% - 90% at 20% - 100% of loading. It comes with strict +/- 3% voltage regulation with low ripple and low noise. The maximum DC output is 500W with 630W per liter of power density. Silverstone is a brand that is known for its amazing products with its excellent quality. It is one of the most ideal power supply with high efficiency and capacitors which are all Japanese. The dimensions of the PSU are 125mm (Weight) x 63.5 mm (height) x 100 mm (depth) with 1.35 kg of weight.
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use
The SilverStone Power Supply has 100% modular cable design for easy removal in a case with cable routed and tied down.
SilverStone’s flexible flat cables have much greater flexibility to allow for tighter folding and management of cables.
5.Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.
- Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
- Built-in 92mm fan has excellent airflow and low noise, perfect for quiet home or office use.
- 100% modular cable design for easy removal in a case with cable routed and tied down.
- SilverStone’s flexible flat cables have much greater flexibility to allow for tighter folding and management of cables.
- Powerful single 12V rail design, perfect for future high-end component upgrades or overclocking.
- /-3% regulation and low ripple & noise performance for high stability.
Get the best 80 Plus Gold computer SMPS price from us today!
Specifications of SILVERSTONE SST-SX500-G
Brand | SILVERSTONE |
Model | SST-SX500-G |
Type | SFX |
Maximum Power | 500W |
Fans | Single 92mm silent fan |
PFC | Active PFC (PF>0.9 at full load) |
Main Connector | 20 4Pin |
12V Rails | Single |
PCI-Express Connector | 2 x 6 2-Pin |
SATA Power Connector | 6 |
Modular | Full Modular |
Efficiency | 87%~90%(20% to 100% loading) |
Energy-Efficient | 80 PLUS GOLD Certified |
Over Voltage Protection | Yes |
Input Voltage | 90 – 264 V |
Input Frequency Range | 47 – 63 Hz |
Output | 3.3V@22A, 5V@22A, 12V1@41.7A, -12V@0.3A, 5VSB@2.5A |
MTBF | 100,000 hours |
Dimensions | 4.92″ x 3.94″ x 2.50″ |
Weight | 2.98 lbs. |
Connectors | 1 x 24 / 20-Pin motherboard connector (300mm) |
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm) | |
1 x 8 / 6-Pin PCIE connector (400mm) | |
1 x 8 / 6-Pin PCIE connector (550mm) | |
6 x SATA connector (“300mm / 220mm / 100mm” x 2) | |
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm) | |
1 x 4-Pin Floppy connector (100mm) |
