- SAPPHIRE Radeon RX 5700 XT Nitro+ 8GB AMD Graphic Card
Description
Features of SAPPHIRE Radeon RX 5700 XT Nitro+ 8GB AMD Graphic Card
The SAPPHIRE Radeon RX 5700 XT Nitro+ 8GB AMD Graphic Card delivers a maximized 4K gaming experience for the PC Gamer. Packed with SAPPHIRE’s renowned high-end quality components, including our award–winning Tri-X cooling solution and Shroud enhancements to strengthen the PCB; the NITRO + RX 5700 XT delivers the stunning performance and robust stability every gamer demands. Features including easily replaceable Quick Connect Fans combined with Intelligent Fan Control and advanced Tri-X Fan Cooling create supreme heat dissipation, minimum noise and maximum reliability.
AMP up the aesthetic design of your rig with the NITRO + RX 5700 XT’s elegant styling and all-new ARGB Lighting which can be customized with SAPPHIRE’s TriXX software. Boost the performance of your favorite games to get a winning advantage over your friends with the new TriXX Boost feature. Get NITRO Charged with the SAPPHIRE NITRO+ RX 5700 XT!

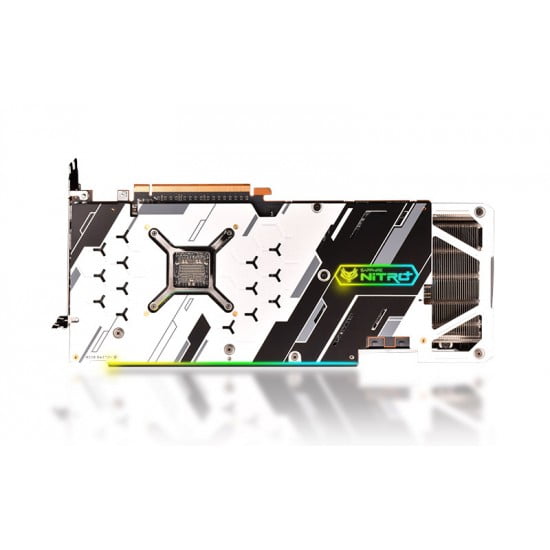

Backplate
Provides rigidity and helps cool your card by increasing heat dissipation.
ARGB
Personalize the look of your NITRO + card with its built-in ARGB and optional SAPPHIRE NITRO + ARGB fan accessories.
Cooling
Innovative cooling technologies to ensure optimal performance and airflow.
SAPPHIRE NITRO+ RX 5700 XT
An overview of the performance along with some of the awesome features that you get with SAPPHIRE NITRO+ branded models
An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections
Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system
Heat is dissipated by a trio of efficient fans – two, slightly bigger, on the sides, running anticlockwise, and a smaller middle fan running clockwise to ensure optimal airflow
- GPU: Boost Clock: Up to 2010 MHz.
- Memory: 8GB/256 bit GDDR6. 14 Gbps Effective.
- Stream Processors: 2560.
- 4K@120Hz.
- Tri-X Cooling Technology.
Specifications of SAPPHIRE Radeon RX 5700 XT Nitro+ 8GB AMD Graphic Card
GPU |
Radeon™ RX 5700 Graphics 2nd Gen 7nm GPU RDNA Architecture |
Engine Clock |
Boost Clock: Up to 2010MHz Game Clock: Up to 1905 MHz Base Clock: 1770 MHz Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). |
Stream Processors | 2560 |
Memory Size/Bus | 8GB/256 bit GDDR6 |
Memory Clock | 14 Gbps Effective |
Displays | Maximum 4 Displays |
Resolution |
HDMI™: 4096×2160@60Hz DisplayPort1.4: 5120×2880@60Hz |
Interface | PCI-Express 4.0 |
Output |
2x HDMI 2x DisplayPort |
BIOS Support | Dual UEFI |
API |
Vulkan® OpenGL® 4.6 OpenCL 2.0 DirectX® 12 Shader Model 6.4 |
Game Index | Extreme 1440P |
Sapphire Features |
TriXX Supported TriXX Boost Software BIOS Switch Max Boost Power Design ARGB LED Logo, Lightstrip & Backplate Logo Optional Fan Glow ARGB support NITRO Glow Fan Check Free Flow VR Friendly Intelligent Fan Control Precision fan control Robust VRM Cooling Robust Memory Cooling Tri-X Cooling Technology Backplate (Tough Metal Backplate) Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS |
AMD Features |
RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon™ Software Radeon™ Boost Radeon™ Image Sharpening Radeon™ Anti-Lag AMD FidelityFx Async Compute Radeon™ Rays Audio + True Audio Next Radeon™ FreeSync™ 2 HDR Radeon™ VR Ready Premium |
Cooling |
Tri-X Cooling Triple Fan Two-Ball Bearing |
Form Factor |
2.5 slot, ATX Dimension: 306x 135 x 49 (mm) |
Power Consumption | 265W |
OS |
Linux®, Windows® 10, Windows® 7 64bit operating system required |
System Requirement |
Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply). 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
Warranty | 2 Years |
Note | Price, feature and specifications are subject to change without notice. |
