- SAPPHIRE Radeon Pure RX 7700 XT 12GB AMD Graphic Card
Description
Features Of SAPPHIRE Radeon Pure RX 7700 XT 12GB
- GPU: Boost Clock: Up to 2584 MHz
- GPU: Game Clock: Up to 2226 MHz
- Memory: 12GB/192 bit DDR6. 18 Gbps Effective
- Stream Processors: 3456
- RDNA™ 3 Architecture
- Ray Accelerator: 54
Digital Power Design
SAPPHIRE Radeon Pure RX 7700 XT 12GB PURE AMD Radeon™ RX 7000 Series are designed with digital power which provides accurate power control and excellent power efficiency
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

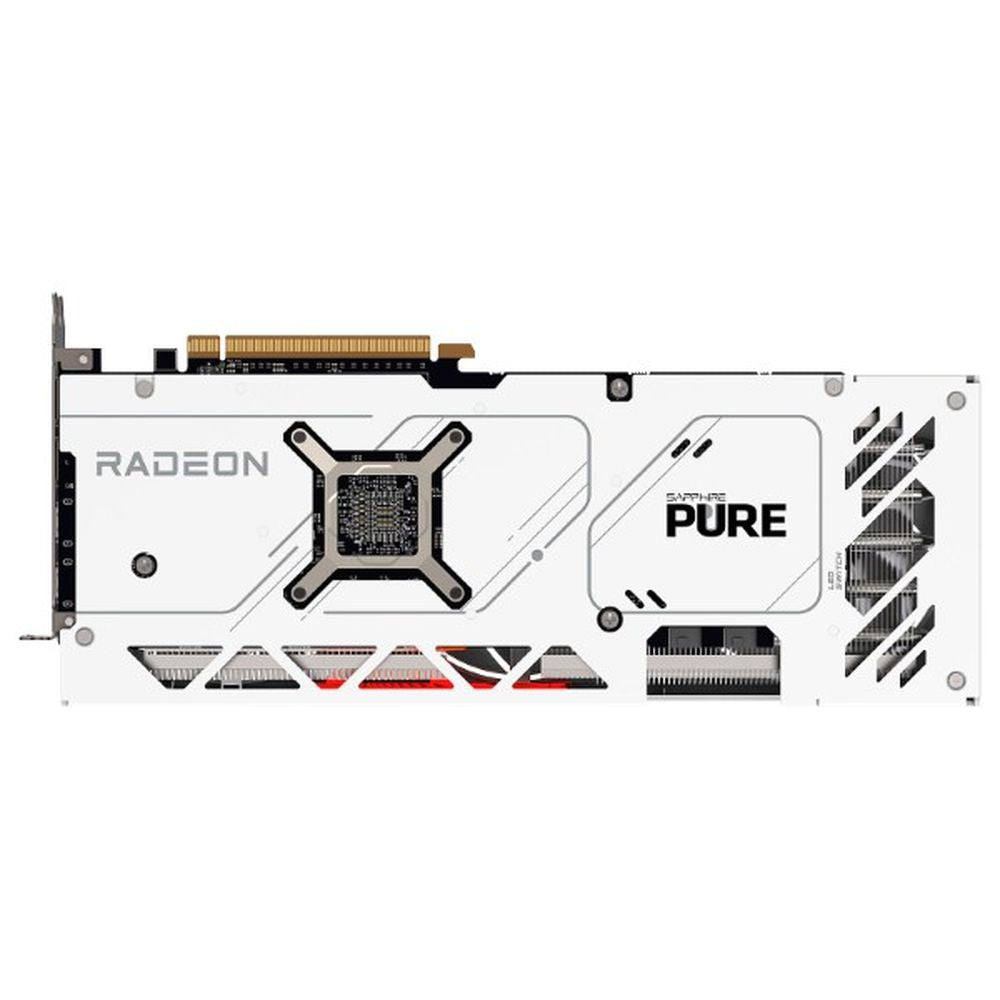

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Red LED SAPPHIRE Logo
Finishing off the beautiful look of these cards are the chic grey accents etched onto the exterior along with a Red LED SAPPHIRE logo with a hardware switch to turn the red lighting on and off at will.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
Specifications Of SAPPHIRE Radeon Pure RX 7700 XT 12GB
Brand | SAPPHIRE |
Series | PURE |
Model | 11335-03-20G |
Interface | PCI Express 4.0 x16 |
Chipset Manufacturer | AMD |
GPU Series | AMD Radeon RX 7000 Series |
GPU | Radeon RX 7700 XT |
Core Clock | 2226 MHz |
Boost Clock | 2585 MHz |
Stream Processors | 3456 Stream Processors |
Memory Size | 12GB |
Memory Interface | 192-Bit |
Memory Type | GDDR6 |
3D API | DirectX 12 Ultimate |
OpenGL | OpenGL 4.6 |
Ports | |
- Multi-Monitor Support | 4 |
- HDMI | 2 x HDMI 2.1 |
- DisplayPort | 2 x DisplayPort 2.1 |
Details | |
- Max Resolution | 7680 x 4320 |
- Cooler | Triple Fans |
- Thermal Design Power (TDP) | 240W |
- Recommended PSU Wattage | 700W |
Form Factor & Dimensions | |
- Form Factor | ATX |
- Max GPU Length | 320 mm |
- Slot Width | 2 Slots |
Warranty | 3 years |
