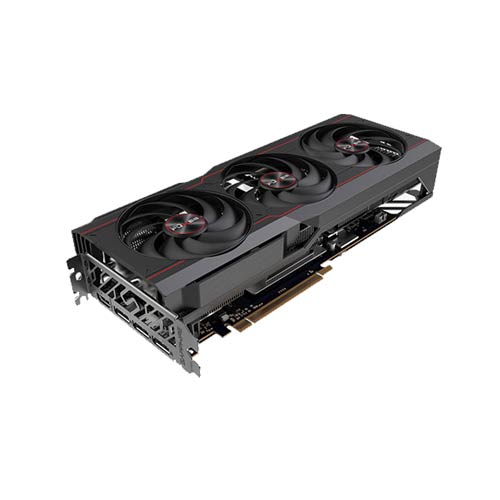

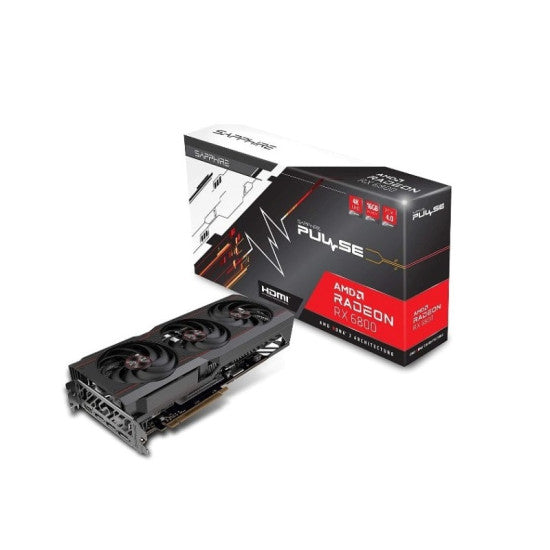

- SAPPHIRE Radeon RX 6800 Pulse 16GB AMD Graphic Card
Description
Features of SAPPHIRE Radeon RX 6800 Pulse 16GB AMD Graphic Card
The SAPPHIRE Radeon RX 6800 Pulse 16GB AMD Graphic Card yields robust 4K gaming performance at the optimal budget. Push your limits with high refresh rate competitive gaming and streamlined designs for incredible performance and efficiency powered by AMD’s visionary RDNA2 architecture. SAPPHIRE’s renowned components like the dual ball bearing fans, fuse protection and dual BIOS ensure a quality and reliability.
The remarkable SAPPHIRE Tri-X Cooling Technology powered by two fans on the outside and the middle fan with reverse spinning direction secures a low temperature and low noise solution. These efficient cooling solutions alongside the all-aluminum aesthetic backplate coupled with our SAPPHIRE exclusive TriXX Boost builds a mix of incredible performance and stability with the PULSE AMD Radeon™ RX 6800. Take your gaming to the next level with the PULSE AMD Radeon™ RX 6800 as the beating heart of your PC!
4K Visuals
4K gaming is now possible at smooth framerates and ultra-high settings, powered by up to 72 enhanced compute units, all new AMD Infinity Cache, and 16GB of GDDR6 memory. With a powerful blend of raytracing and rasterized effects, your 4K gaming experience is elevated to new levels of visual fidelity.
High Refresh Rate Gaming
Get competitive with ultra-high refresh rate gaming, with breakthrough AMD RDNA™ 2 architecture delivering the raw performance needed to display every frame.
GET A BOOST IN FRAMES FOR YOUR GAMES
AMD FidelityFX Super Resolution (FSR) boosts your frame rates in FSR-supported games, delivering a high-quality, high-resolution gaming experience.
AMD FidelityFX
Get pulled into the action with the latest AMD FidelityFX
feature set, enabling ultimate visual quality and new levels of rich detail, with minimal performance overhead, freeing up your graphics card to power intense and visually stunning gaming experiences.
DirectX® 12 Ultimate
DirectX® 12 Ultimate takes games to a new level of realism with support for features such as real-time lighting, shadow, reflection realism with DXR raytracing, and variable rate shading.
AMD Radeon™ Graphics Cards are Windows 11 Ready
AMD Radeon™ RX 6000 Series graphics card powered desktop PCs give you access to gaming features such as DirectX® 12 Ultimate, DirectStorage, and Auto HDR for the ultimate gaming experience with Windows 11.
Specifications of SAPPHIRE Radeon RX 6800 Pulse 16GB AMD Graphic Card
| GPU | Radeon™ RX 6800 Graphics |
| 7nm GPU | |
| RDNA 2 Architecture | |
| Engine Clock | Boost Clock: Up to 2170 MHz |
| Game Clock: Up to 1950 MHz | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 3840 |
| Infinity Cache | 128MB |
| Ray Accelerators | 60 |
| Memory Size/Bus | 16GB GDDR6 |
| Memory Clock | 16 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort1.4: 7680×4320 | |
| Interface | PCI-Express 4.0 |
| Output | 1x HDMI |
| 3x DisplayPort | |
| BIOS Support | Dual UEFI |
| Game Index | |
| 4K | |
| Sapphire Features | Dual BIOS |
| Digital Power Design | |
| Fuse Protection | |
| Tri-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Backplate | |
| Two-Ball Bearing Fans | |
| TriXX Supported | |
| TriXX Boost | |
| AMD Features | AMD RDNA™ 2 Gaming Architecture |
| DirectX® 12 Ultimate | |
| Hardware Raytracing | |
| 7nm GPU | |
| GDDR6 Memory | |
| PCI® Express 4.0 Support | |
| AMD FreeSync™ Technology | |
| DisplayPort™ 1.4 with DSC | |
| HDMI™ 2.1 VRR | |
| Video Streaming up to 8K | |
| Radeon™ VR Ready Premium | |
| AMD FidelityFX | |
| Radeon™ Image Sharpening | |
| Radeon™ Anti-Lag | |
| Radeon™ Software | |
| Game Driver Optimizations | |
| High Performance 4K Gaming | |
| Cooling | 3 Fans |
| Form Factor | 2.5 slot, ATX |
| Dimension: 303(L)X 127.3(W)X 53.8 (H)mm | |
| Power Consumption | 280W |
| OS | Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required |
| *Does not support all features including but not limited to Hardware Raytracing | |
| System Requirement | Minimum 650 Watt Power Supply |
| 2 x 8-pin Power Connector. | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. | |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |
