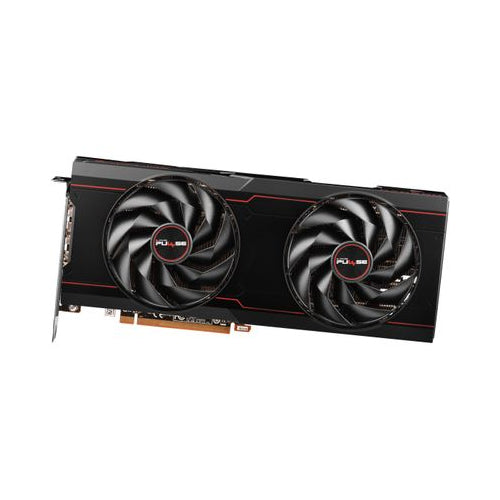

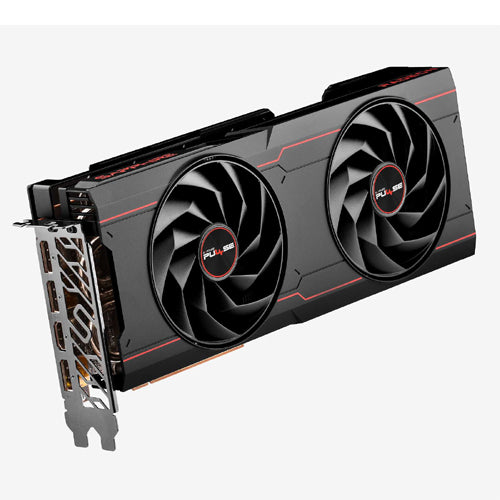

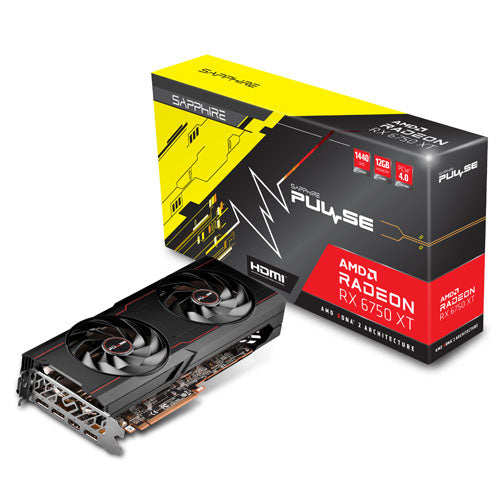

Sapphire Pulse AMD Radeon RX 6750 XT 12GB GDDR6 Graphics Card
Features:
SAPPHIRE PULSE AMD Radeon™ RX 6750 XT
The SAPPHIRE PULSE AMD Radeon™ RX 6750 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
Specifications:
| GPU | AMD Radeon™ RX 6750 XT Graphics Card |
| 7nm GPU | |
| AMD RDNA™ 2 Architecture | |
| Engine Clock | Boost Clock: Up to 2618 MHz |
| Game Clock: Up to 2512 MHz | |
| Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 2560 |
| Infinity Cache | 96MB |
| Ray Accelerators | 40 |
| Memory Size/Bus | 12GB GDDR6 |
| Memory Clock | 18 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort1.4: 7680×4320 | |
| Interface | PCI-Express 4.0 |
| Output | 1x HDMI |
| 3x DisplayPort | |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Sapphire Features | Premium Digital Power Design |
| Fuse Protection | |
| High TG Copper PCB | |
| Optimized Composite Heatpipe | |
| Dual-X Cooling Technology | |
| Intelligent Fan Control | |
| Precision Fan Control | |
| Metal Backplate with Thermal Pad | |
| Two-Ball Bearing Fans | |
| TriXX Supported | |
| TriXX Boost | |
| AMD Features | AMD RDNA™ 2 Gaming Architecture |
| DirectX® 12 Ultimate | |
| Hardware Raytracing | |
| GDDR6 Memory | |
| Smart Access Memory | |
| Infinity Cache | |
| 7nm GPU | |
| PCI® Express 4.0 Support | |
| AMD FreeSync™ Technology | |
| DisplayPort™ 1.4 with DSC | |
| HDMI™ | |
| Video Streaming up to 8K | |
| Radeon™ VR Ready Premium | |
| AMD FidelityFX | |
| AMD FidelityFX™ Super Resolution (FSR) | |
| AMD Radeon™ Super Resolution | |
| Radeon™ Image Sharpening | |
| Radeon™ Anti-Lag | |
| Radeon™ Software | |
| Game Driver Optimizations | |
| Cooling | Dual Fans |
| Form Factor | 2.7 slot, ATX |
| Dimension: 280(L)X 122.75(W)X 50.47(H)mm | |
| Power Consumption | 250W Total Board Power |
| OS | Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required |
| *Does not support all features including but not limited to Hardware Raytracing | |
| System Requirement | Minimum 650 Watt Power Supply |
| 1 x 8-pin + 1 x 6-pin Power Connector. | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. | |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |
