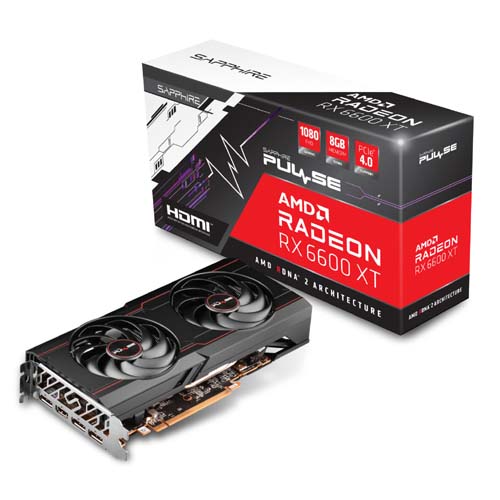

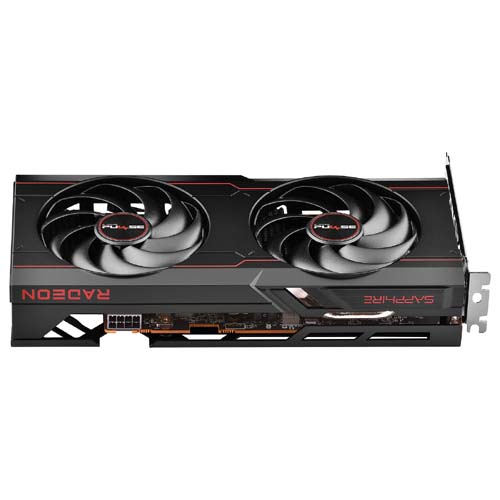

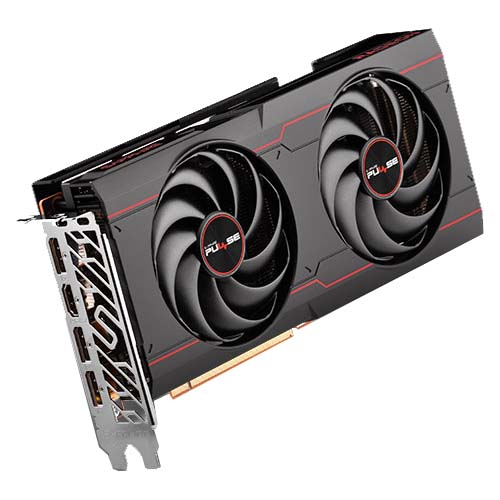

Sapphire Radeon RX 6600 XT Pulse 8GB Graphics Card

Sapphire Pulse AMD Radeon RX 6600 XT 8GB GDDR6 Graphics Card

Features:

SAPPHIRE PULSE AMD Radeon™ RX 6600 XT

The SAPPHIRE PULSE AMD Radeon RX 6600 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

GPU

AMD Radeon™ RX 6600 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture

Engine Clock

Boost Clock: Up to 2593 MHz
Game Clock: Up to 2382 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Resolution

HDMI™: 7680×4320
DisplayPort1.4: 7680×4320

Output

1x HDMI
3x DisplayPort

Sapphire Features

Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Metal Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost

AMD Features

AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
Smart Access Memory
Infinity Cache
7nm GPU
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations

Form Factor

2.2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm

OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 500 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

Specifications:
