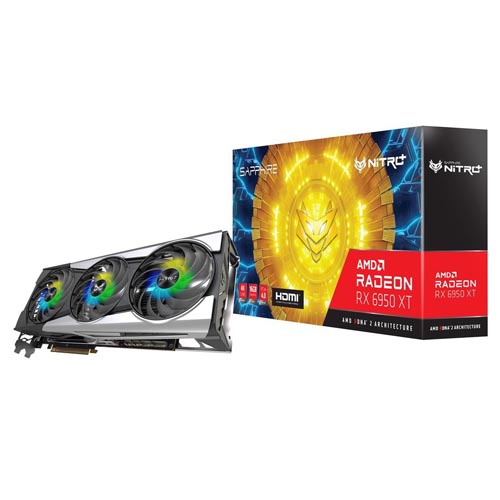

- SAPPHIRE Radeon RX 6950 XT Nitro+ 16GB AMD Graphic Card
Description
Features of SAPPHIRE Radeon RX 6950 XT Nitro+ 16GB AMD Graphic Card
The NITRO+ AMD Radeon™ RX 6950 XT delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience.
The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6950 XT components icy cool.
The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low.
Incredible ARGB Lighting across the graphics card using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6950 XT is a stunning addition to every enthusiast gamer’s PC.
NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6950 XT and elevate your gaming experience to the next level!
ARGB
Personalize the look of your NITRO + card with its built-in ARGB and ARGB fans.
Cooling
Innovative cooling technologies to ensure optimal performance and airflow.
Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Hybrid Fan Blade
The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
Specifications of SAPPHIRE Radeon RX 6950 XT Nitro+ 16GB AMD Graphic Card
| Brand | SAPPHIRE |
| Series | NITRO+ |
| Model | 11317-02-20G |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | AMD |
| GPU | Radeon RX 6950 XT |
| Architechture | RDNA 2 |
| Game Clock | 2116 MHz |
| Stream Processors | 5120 Stream Processors |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort 1.4 |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| System Requirements |
PCI Express compatible motherboard with one x16 PCIe slot Minimum 850W or greater power supply Minimum 8GB of system memory. Recommended 16GB Installation software requires a keyboard, a mouse, and a display A display with HDMI, or DisplayPort is required Supported operating systems include Linux, Windows 7/10/11. 64-bit operating system required * Windows 7 does not support all features including by not limited to Hardware Raytracing DirectX 12 and Vulkan support For information on AMD Radeon VR Ready Premium visit amd.com/VRready |
| Recommended PSU Wattage | Minimum 850W or greater power supply |
| Power Connector | 2 x 8-Pin + 1 x 6-Pin |
|
Features
|
NITRO+ Product Features: |
| Software BIOS Switch | |
| NITRO Glow ARGB | |
| Fan Check | |
| Quick Connect Fan | |
| External RGB LED Synchronization | |
| Hybrid Fan Blade | |
| Wave Fin Design | |
| V-Shape Fin Design | |
| Integrated Cooling Module | |
| AMD Radeon Product Features: | AMD RDNA 2 Architecture |
| DirectX 12 Ultimate | |
| Hardware Raytracing | |
| 7nm GPU | |
| GDDR6 Memory | |
| PCI Express 4.0 Support | |
| AMD FreeSync Technology | |
| DisplayPort 1.4 w ith DSC | |
| HDMI | |
| Video Streaming up to 8K | |
| Radeon VR Ready Premium | |
| AMD FidelityFX | |
| Radeon Image Sharpening | |
| Radeon Anti Lag | |
| Radeon Software | |
| Game Driver Optimizations | |
| High Performance 4K Gaming | |
| Form Factor & Dimensions | |
| Form Factor | ATX |
| Max GPU Length | 320 mm |
| Card Dimensions (L x H) | 12.60″ x 5.31″ |
| Slot Width | 2.7 Slot |
| ACCESSORIES: | Graphics card supporter |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |
