Description

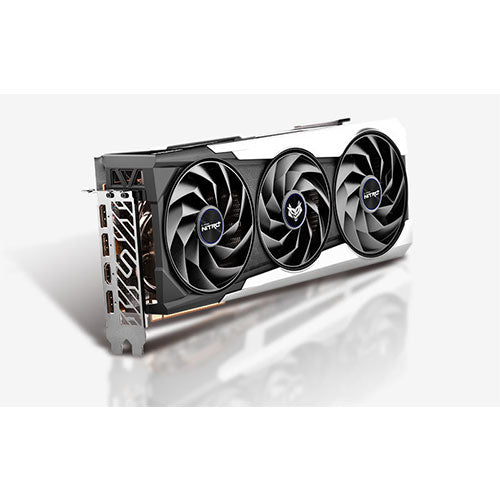

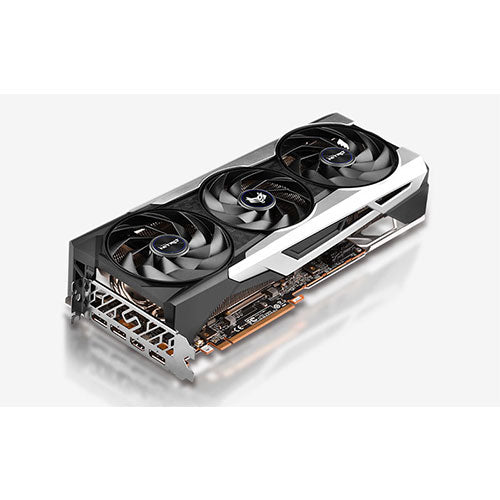

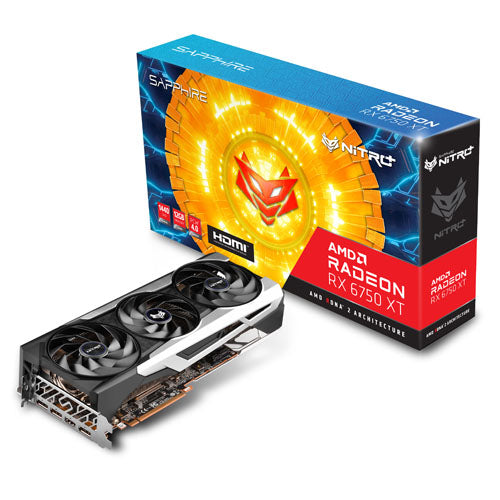

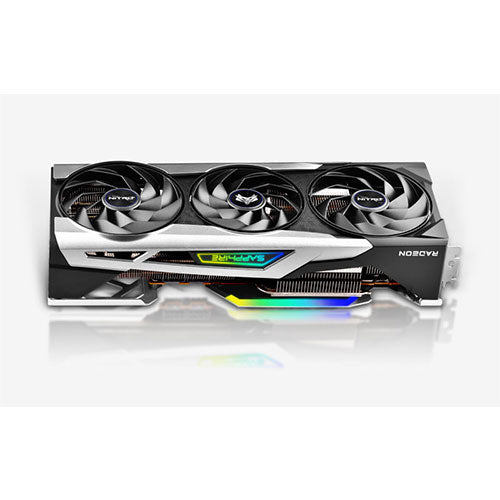

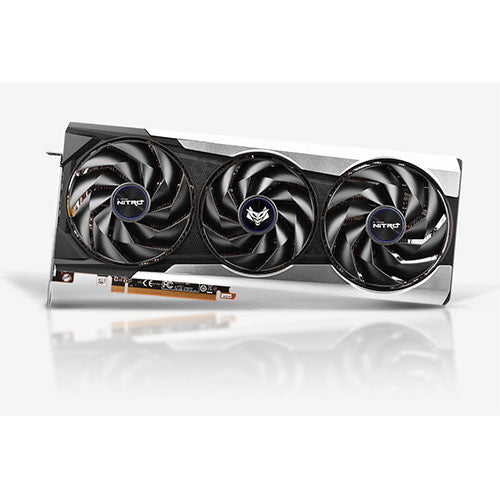

Sapphire NITRO+ AMD Radeon RX 6750 XT 12GB GDDR6 Graphics Card
Features:
SAPPHIRE NITRO+ AMD Radeon™ RX 6750 XT
The SAPPHIRE NITRO+ AMD Radeon™ RX 6750 XT Graphics Card for the ultimate 1440p gamer seeking to harness breakthrough graphics with vivid visuals and excellent quality cooling solutions. Rigged with superior components to handle AAA game scenarios, the NITRO+ AMD Radeon™ RX 6750 XT Graphics card is a crucial component for an incredible gaming experience. The aesthetic design will be a beautiful integration into any PC build.
SAPPHIRE NITRO+ Graphics Card FEATURES
Explore all the incredible features that come with the SAPPHIRE NITRO+ AMD Radeon™ RX 6750 XT Graphic Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

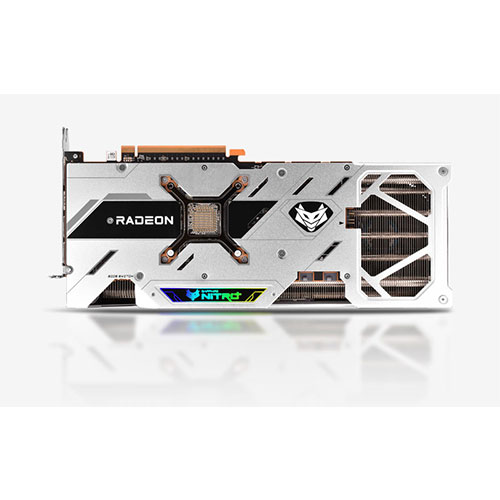

Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Fan Quick Connect
If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.
Technical Details
Brand : Sapphire
Model : RX 6750 XT
Technical Specs
GPU | AMD Radeon™ RX 6750 XT Graphics Card |
7nm GPU | AMD RDNA™ 2 Architecture |
Engine Clock | Boost Clock Up to 2623 MHz, Game Clock Up to 2554 MHz |
Stream Processors | 2560 |
Infinity Cache | 96MB |
Ray Accelerators | 40 |
Memory Size/Bus | 12GB GDDR6 |
Memory Clock | 18 Gbps Effective |
Displays | Maximum 4 Displays |
Resolution | HDMI™ 7680×4320, DisplayPort1.4 7680×4320 |
Interface | PCI-Express 4.0 |
Output | 1x HDMI , 3x DisplayPort |
BIOS Support | Dual UEFI |
Game Index | 1440P |
OS | Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required |
Power Consumption | 273W Total Board Power |
Cooling | 3 Fans |
Sapphire Features
Dual BIOS
TriXX Software BIOS Switch
Premium Digital Power Design
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate with ARGB
Metal Backplate with Thermal Pad
Two-Ball Bearing Fans
Angular Velocity Fan Blade
Wave Fin Design
V Shape Fin Design for GPU Cooling
Integrated Cooling Module
TriXX Supported
Fan Check
Fan Quick Connect
Graphics Card Supporter
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
GDDR6 Memory
Smart Access Memory
Infinity Cache
7nm GPU
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
AMD FidelityFX™ Super Resolution (FSR)
AMD Radeon™ Super Resolution
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
Form Factor
3 slot, ATX
Dimension: 310(L)X 130.75(W)X 62.19 (H)mm
System Requirement
Minimum 650 Watt Power Supply
1 x 8-pin + 1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
Specifications:
Model | |
Brand | Sapphire |
Model | RX 6750 XT |
Form Factor | ATX |
Interface | |
Interface | PCI Express 4.0 |
Chipset | |
GPU | AMD Radeon™ RX 6750 XT |
Core clock | Boost Clock: Up to 2623 MHz, Game Clock: Up to 2554 MHz |
Stream Processors | 2560 |
Memory | |
Memory Clock | 18 Gbps |
Memory Size | 12GB |
Memory Type | GDDR6 |
3D API | |
OpenGL | N/A |
Ports | |
HDMI | 1 x HDMI |
DisplayPort | 3 x DisplayPort |
General | |
Max Resolution | 7680x4320 |
Cooler | Triple fans |
Power Connector | 1 x 8-pin + 1 x 6-pin |
