Description

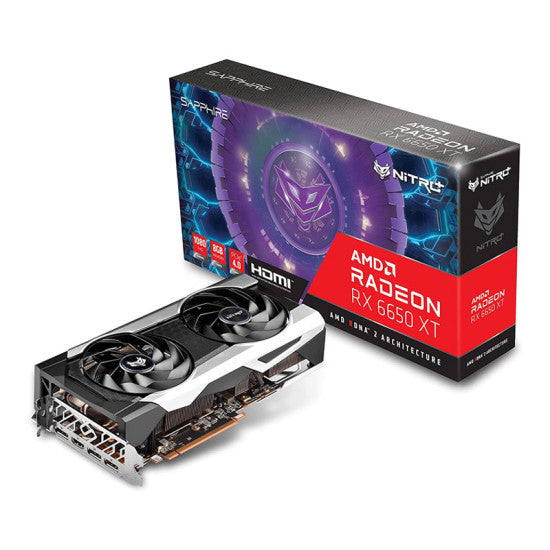

Sapphire Nitro+ AMD Radeon RX 6650 XT Gaming OC 8GB GDDR6 Graphics Card
Features:
SAPPHIRE NITRO+ AMD Radeon™ RX 6650 XT
The SAPPHIRE NITRO+ AMD Radeon™ RX 6650 XT Graphics Card for the ultimate 1080P gamer seeking to harness breakthrough graphics with vivid visuals and excellent quality cooling solutions. Rigged with superior components to handle AAA game scenarios, the NITRO+ AMD Radeon™ RX 6650 XT Graphics card is a crucial component for an incredible gaming experience. The aesthetic design will be a beautiful integration into any PC build.
SAPPHIRE NITRO+ Graphics Card FEATURES
Explore all the incredible features that come with the SAPPHIRE NITRO+ AMD Radeon™ RX 6650 XT Graphic Card. We’ve split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you
Software BIOS Switch
Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Metal Backplate with Thermal Pad
The high quality aluminum backplate is not just for styling. It also protects the components on the backside of the PCB and helps dissipate the heat from the PCB with a high performance thermal pad in between.
WAVE Fin Design
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Fan Quick Connect
If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
Specifications:
| GPU | AMD Radeon™ RX 6650 XT Graphics Card |
| AMD RDNA™ 2 Architecture | |
| Engine Clock | Boost Clock: Up to 2694 MHz |
| Game Clock: Up to 2523 MHz | |
| Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads. | |
| Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary. | |
| Stream Processors | 2048 |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| Memory Size/Bus | 8GB GDDR6 |
| Memory Clock | 17.5 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI™: 7680×4320 |
| DisplayPort1.4: 7680×4320 | |
| Interface | PCI-Express 4.0 |
| Output | 1x HDMI |
| 3x DisplayPort | |
| BIOS Support | Dual UEFI |
| Game Index | 1080P |
| Sapphire Features | Dual BIOS |
| TriXX Software BIOS Switch | |
| Premium Digital Power Design | |
| Fuse Protection | |
| Optimized Composite Heatpipe | |
| Dual-X Cooling Technology | |
| Intelligent Fan Control | |
| Metal Backplate with Thermal Pad | |
| Two-Ball Bearing Fans | |
| Angular Velocity Fan Blade | |
| Wave Fin Design | |
| TriXX Supported | |
| Fan Check | |
| Fan Quick Connect | |
| TriXX Boost | |
| AMD Features | AMD RDNA™ 2 Gaming Architecture |
| DirectX® 12 Ultimate | |
| GDDR6 Memory | |
| Smart Access Memory | |
| Infinity Cache | |
| 7nm GPU | |
| PCI® Express 4.0 Support | |
| AMD FreeSync™ Technology | |
| DisplayPort™ 1.4 with DSC | |
| HDMI™ | |
| Video Streaming up to 8K | |
| Radeon™ VR Ready Premium | |
| AMD FidelityFX | |
| AMD FidelityFX™ Super Resolution (FSR) | |
| AMD Radeon™ Super Resolution | |
| Radeon™ Image Sharpening | |
| Radeon™ Anti-Lag | |
| Radeon™ Software | |
| Game Driver Optimizations | |
| Cooling | 2 Fans |
| Form Factor | 2.5 slot, ATX |
| Dimension: 260(L)X 130(W)X 57.57 (H)mm | |
| Power Consumption | 203W Total Board Power |
| OS | Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required |
| *Does not support all features including but not limited to Hardware Raytracing | |
| System Requirement | Minimum 500 Watt Power Supply |
| 1 x 8-pin Power Connector. | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Minimum 8GB of system memory. 16GB recommended. | |
| Note | **Features, Price and Specifications are subject to change without notice to customer. |
