- PHANTEKS P400 (Airflow) EATX Mid Tower Cabinet (Black)
Description
Features of PHANTEKS P400 (Airflow)
The Phanteks Eclipse P400A breathes performance with its full metal mesh front panel. Thanks to engineering improvements we have been able to create an Ultra-Fine Performace Mesh that brings the best possible performance while keeping dust from entering the system.

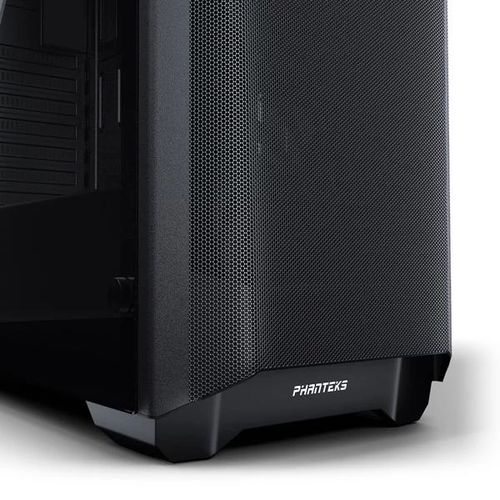

FULL-METAL MESH FRONT PANEL
The single-piece front panel is made from an Utra-Fine Steel Mesh. This mesh catches dust, adds structure, strength, and it part of the P400A's seamless design.
IMPROVED AIRFLOW
The P400A Chassis has improved airflow to keep your system cool. The optimized High Air-Flow Mesh Front Design offers maximum cooling performance.
COOLING CAPACITY
The Eclipse P400A has a range of possible fan and radiator locations up to 360mm for both 120mm and 140mm fans.
STORAGE CAPACITY
The P400A supports 2x 3.5" HDDs and 2x" SDD out of the box with easy to use trays and vibration dampening. There is space for an additional 4x drives with the optional PH-HDDKT_02 brackets.
Specifications of PHANTEKS P400 (Airflow)
CASE SPECIFICATIONS | |
Dimension (WxHxD) |
210mm x 465mm x 470mm 8.3in x 18.3 in x 18.5 in |
Form Factor | Mid-Tower |
Materials | Power Coated Steel Chassis, Tempered Glass side panel |
MB Support | ATX,Micro-ATX,Mini-ITX,E-ATX (up to 272 mm wide if optional HDD trays are used) |

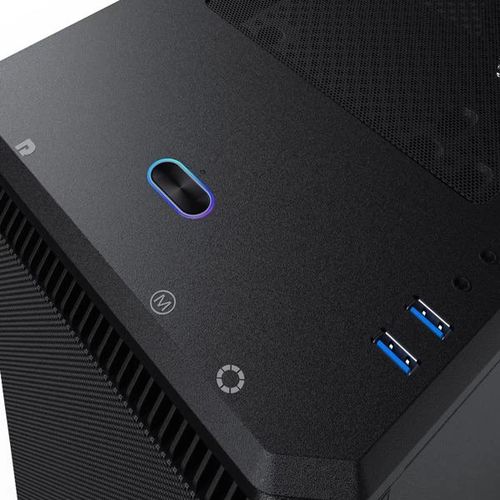

Front I/O | 2 x USB 3.0, Microphone, Headphone, Reset Button, Power Button |
Connetors | Power Switch, Reset Switch, HD-Audio, Power LED, HDD-LED, USB 3.0 |
Side Window | Yes, Tempered glass |
PCI SLOTS & DRIVE BAYS | |
PCI Slots | 7x |
Internal 3.5" | 2x (2x included) |
Internal 2.5" | 2x (2x included) |
FAN | |
Front | 120mm :3x ; 140mm : 2x |
Top | 120mm :2x ; 140mm : 2x |
Rear | 120mm :1x ; 140mm: - |
RADIATOR | |
Front |
120mm : Upto 360mm 140mm : Upto 280mm |
Rear | 120mm : 120 140mm : - |
CLEARENCE | |
CPU Cooler | 165 mm(6.3 in) |
Graphics Card length |
420 mm(16.7 in) 280 mm(11.0) When optional HDD brackets installed |
PSU (Including cable) | 270mm (10.7 in) |
Front Radiator |
240 : 122x315 mm 280 : 142x315 mm |
PACKAGING | |
Net Weight | 7 KG |
Gross Weight | 8 KG |
Package Dimension(WxHxD) |
300mm x 555mm x 520mm 11.8 in x 21.9 in x 20.5 in |
Warranty | 5 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
