- PHANTEKS NV5 ATX Mid Tower Cabinet (Satin Black)
Description
Features of PHANTEKS NV5

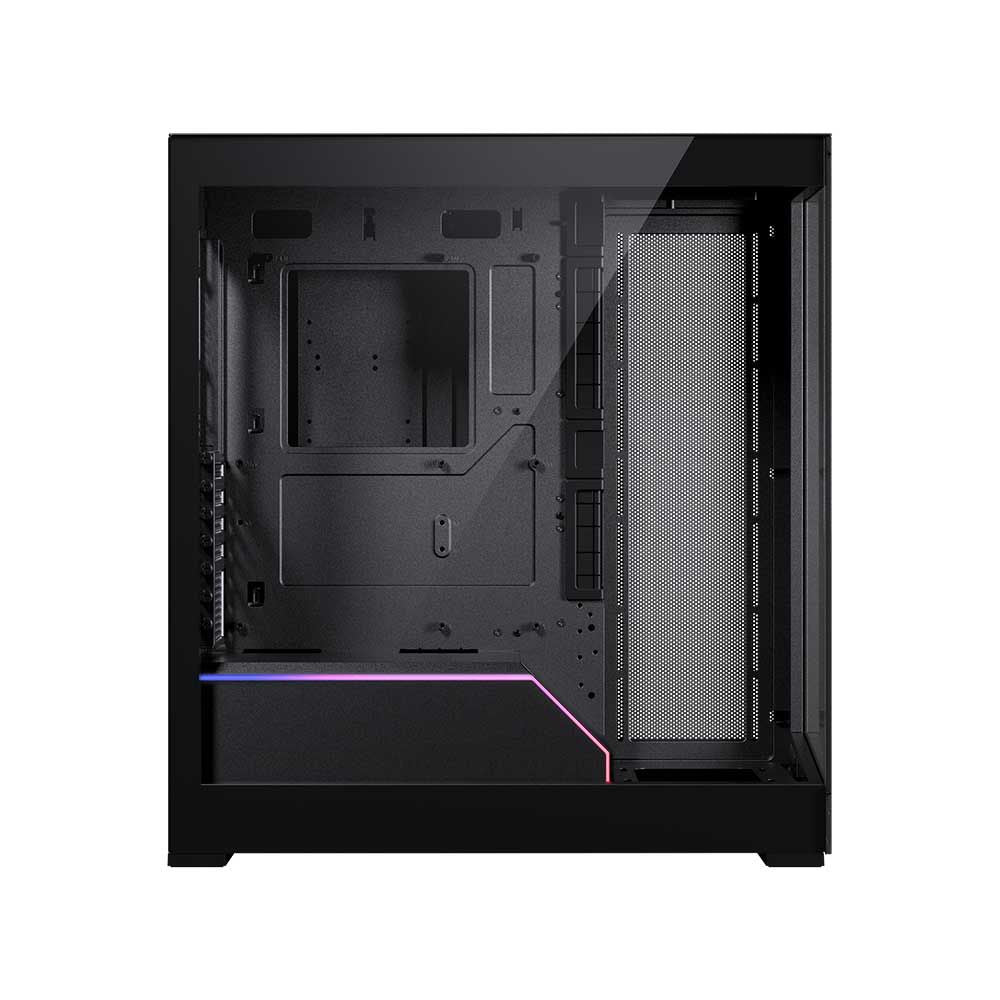

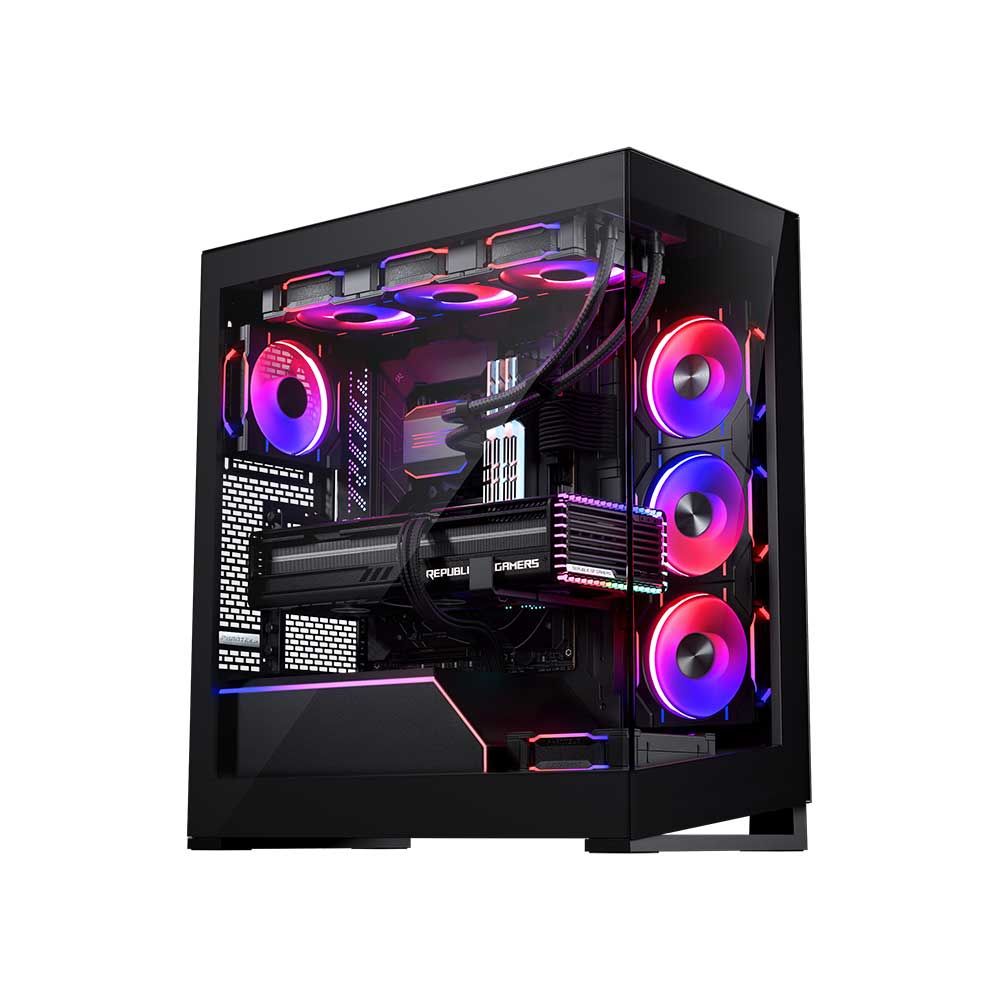

Meet the PHANTEKS NV5 mid-tower ATX Cabinet , featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.
Phanteks CPU Case cover opens for easy cable management, and its DRGB lighting system is customizable and easy to sync. With its sleek design and convenient features, the NV5 is the perfect choice for a high-performance PC build that looks as good as it performs.
- Create a picture-perfect PC with a seamless glass design.
- Increased chassis width to support wider GPUs and PCIe cables.
- Premium build quality throughout the strong and reinforced outer frame.
- High Airflow Performance with fine mesh, dust filter and 8x 120mm fan positions.
- Ready for ultimate water-cooling configurations with dual 360 radiator support.
- Integrated D-RGB lighting in the PSU Cover with built-in D-RGB Controller that works out of the box.
Perfect view of your system
Near-seamless glass panels for a perfect view of all your system components.
Top and side panel with Ultra-fine performance mesh for high airflow and good dust filtration.
A total of eight 120 mm fan positions for high-end cooling performance.
Dual 360 radiator support in the top and side.
Ready for modern GPUs
Increased chassis width to support wider GPUs and 12VHPWR cables.
GPU support bracket supports and holds the GPU securely to chassis and motherboard.
Dedicated GPU fan to provide direct airflow to the GPU from the bottom.
Removable PSU cover for easy access to power cables.
Integrated D-RGB lighting
Built-in Digital-RGB Controller.
Refined D-RGB lighting effects that just work, no software required.
Expand with more Digital-RGB lighting.
Optionally sync with motherboard and software.
Multiple storage options
Support for 4x 2.5″ SSD.
Support 3x 3.5″ HDDs.
Best cpu case with fan at affordable prices at Elitehubs!
Specifications of PHANTEKS NV5
Product Dimension (WxDxH) | 239 x 477 x 528 mm | 9.4 x 18.8 x 20.8 in |
Package Dimension (WxDxH) | 632 x 331 x 574 mm | 24.9 x 13.0 x 22.6 in |
Form Factor | Mid Tower |
Motherboard Support | ATX, Micro-Atx, Mini-ITX, E-Atx |
Materials | Steel Chasis | Tempered Glass |
Color | Satin Black |
Front I/O | 2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color |
Connectors | Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E |
D-RGB Controller Output | 7A |
Net Weight | 11.28KG | 24.9 lb |
Gross Weight | 13.97KG | 30.8 lb |
Expansion | |
PCI Slots | 7 |
Internal 3.5″ Bay | 3 |
Internal 2.5″ Bay | 4 |
Vertical GPU Support | Yes, with optional bracket PH-VGPUKT4.0_03R |
Fans | |
Top | 3 x 120mm |
Rear | 1 x 120mm |
Bottom | 1 x 120mm |
Side | 3 x 120mm |
Radiator | |
Top | up to 360 |
Rear | up to 120 |
Bottom | – |
Side | up to 360 |
Clearances | |
GPU Clearance | Length : 440mm / 17.32 in Width : 170mm / 6.69 in |
CPU Cooler Height | 180mm / 7.08 in |
PSU Length | 230mm / 9.05 in |
Side 360 Radiator | Maximum Size : 132 x 440mm |
Side 360 Radiator Thickness | 65mm (to GPU) |
Top 360 Radiator | Maximum Size : 430 x 134 x 62 mm |
Side 360 Radiator | Maximum Size : 412 x 130 x 62 mm |
Warranty | 5 Years |
Note** | **Prices, Specifications & Features are subject to change without notice |
