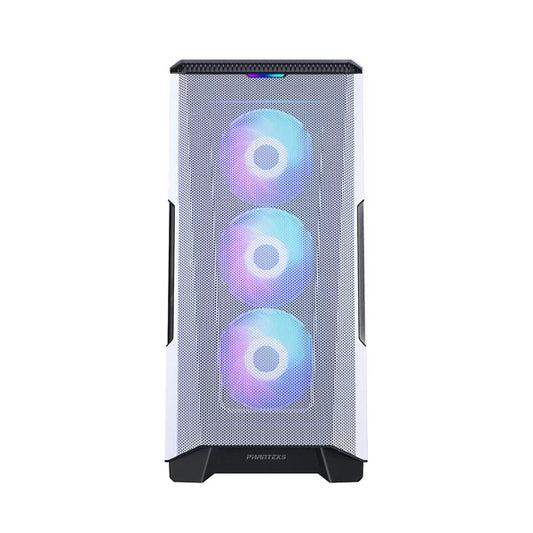

- PHANTEKS Eclipse P500A DRGB EATX Mid Tower Cabinet (Glacier White)
Description
Features of PHANTEKS Eclipse P500A DRGB (Glacier White)
The Phanteks CPU Case Eclipse P500A is a premium mid-tower case that combines high airflow performance with style. It features the 1 mm Ultra-fine Performance mesh front panel for optimal airflow with effective dust filtration. The P500A EATX Cabinet offers a versatile interior with high-end features such as extensive water-cooling support (up to 420 mm radiators), extensive storage possibilities (can be upgraded up to 10 HDD’s / 13 SSD’s), software-free D-RGB lighting solution, hinged tempered glass side panel, and dual-system support. With a rich feature set and a flexible interior, it’s the perfect chassis for people demanding more than the standard mainstream with options for future expansion. The P500A delivers quality and performance with exceptional value and high-end capabilities.

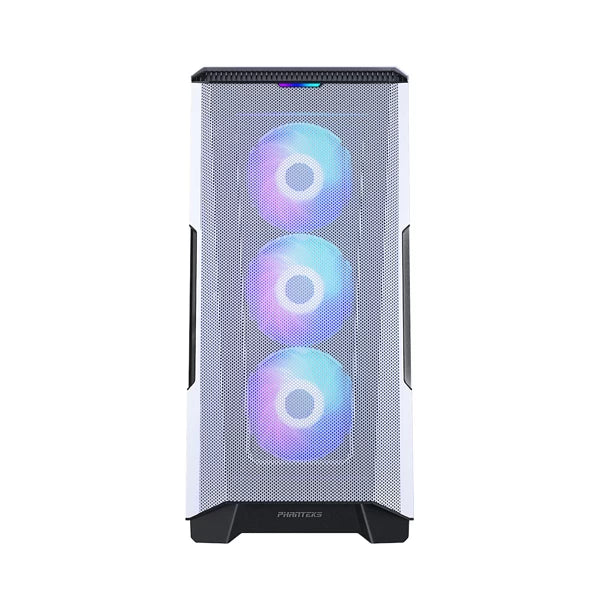

- Ultra Fine Performance Mesh
- Integrated D-RGB Lighting
- 3-Slot Vertical GPU Support
- Dual System Ready
- Optimize Cooling
Get the affordable cpu case with fan with the huge variety with us!
Specifications of PHANTEKS Eclipse P500A DRGB (Glacier White)
Model Name | Eclipse P500A D-RGB White |
Model No | PH-EC500ATG-DWT01 |
Case Dimensions (WxHxD) | 240 x 510 x 505 mm / 9.45 x 20.1 x 20.0 |
Form Factor | Mid Tower |
Materials | Steel Chassis, Tempered Glass |
Motherboard Support | E-ATX (Upto 280mm Wide), ATX, micro-ATX, mini-ITX |

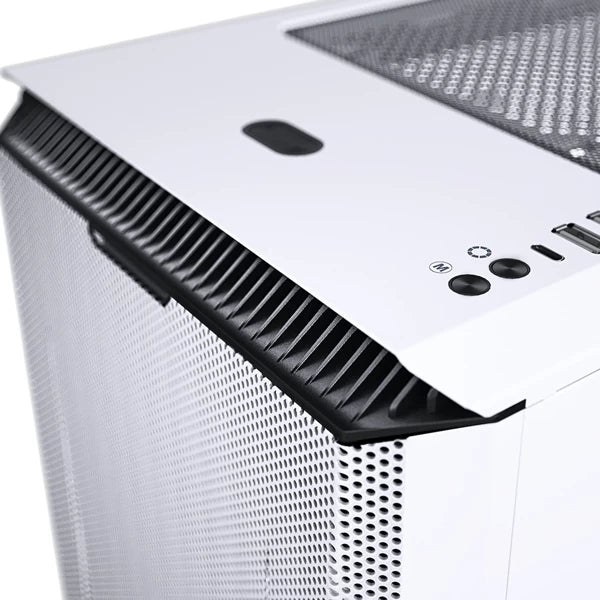

Front IO |
USB-C Gen2 2x USB 3.0 Microphone / Headphone Power Button LED Mode Button LED Color Button |
Connectors |
Power Switch power-LED (12V SATA) HDD-LED USB 3.0 USB 3.1 Gen2 D-RGB Expansion D-RGB Third Party D-RGB MB Adapter |

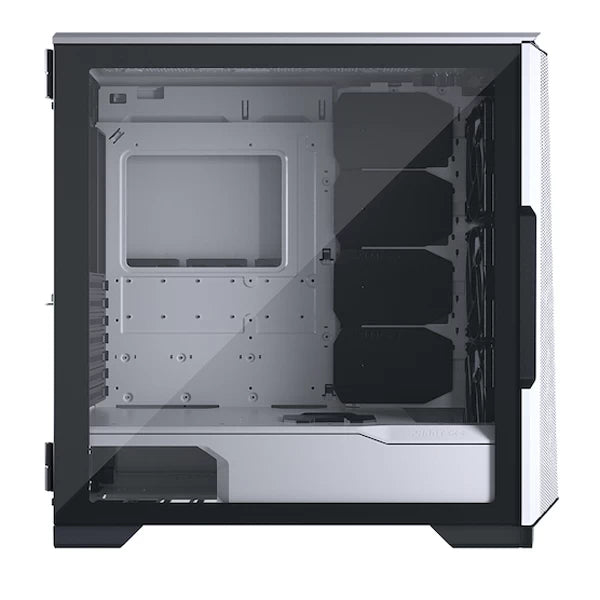

Side Window | Tempered Glass Window |
PCI Slots | 7 + 3 |
Vertical GPU | Yes 3-Slots, With Optional Riser Cable |
Internal 3.5" Bay | 10 (2x Included, Also Supports 2.5" Drives) |
Internal 2.5" Bay | 3 (3x Included) |
Total Fan Mounts | 7x 120mm / 6x 140mm (3x 140mm D-RGB Included) |
Front Fan | 3x 120mm / 3x 140mm |
Top Fan | 3x 120mm / 2x 140mm |
Rear Fan | 1x 120mm / 1x 140mm |
Dust Filters | Front (Integrated) / Top / Bottom PSU |
Front Radiator | Up to 360 / 420mm |
Top Radiator | Up to 360 / 280mm |
Rear Radiator | 120/140 mm |
Front Radiator Clearance | 95mm / 3.75 Inches |
Top Radiator Clearance | 65mm / 2.56 Inches |
GPU Length | 435mm / 17.2 In |
CPU Cooler Height | 190mm / 7.5 In |
Motherboard Width | 280mm / 11.0 in |
PSU Length | 195/250mm (4 HDD Bottom Brackets Used / 2 HDD Brackets Used) |
Cable Management | Velcro Strips / Slidable Cable Covers / Zip Tie Mounts |
Package Dimension | 325 x 610 x 610mm / 12.8 x 24 x 24 inches |
Net Weight | 8kg |
Gross Weight | 10kg |
Package Contents |
1x P500A Case 3x 140mm D-RGB Fans (SK 3-Pin Case Edition Fans) 3 x 2.5" SSD Brackets 2 x 3.5" HDD Bracket 1 x Anti-Sag Bracket 1 x Vertical GPU Mount 6 x Zip Ties 1 x Accessory Box With Necessary Screws and Standoffs |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
