- PHANTEKS Eclipse P360A DRGB EATX Mid Tower Cabinet (Glacier White)
Description
Features of PHANTEKS Eclipse P360A DRGB (Glacier White)

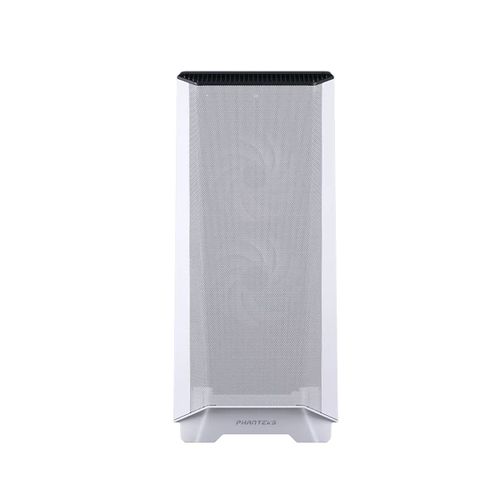

The new Phanteks Eclipse P360A ARGB White features our new Ultra-Fine Performance Mesh front panel that combines huge airflow performance with dust filtration. The ultra-fine 1mm mesh perforation maximizes airflow without compromising dust filtration, bringing the best of both worlds
-
The P360A features the Ultra-Fine Performance Mesh front panel that allows high airflow while functioning as a dust filter.
-
The P360A is equipped with a D-RGB controller that has been pre-programmed with a wide range of tasteful colors and lighting effects.
- The P360A chassis is “Vertical GPU ready”.
Specifications of PHANTEKS Eclipse P360A DRGB (Glacier White)
| SERIES | ECLIPSE SERIES |
| TYPE | MID TOWER |
| 3.5" BAY | S3 |
| 2.5" BAY | S2 |
| EXPANSION SLOTS | 7 |
| MAX RADIATOR SUPPORT | 280 |
| MAX FAN SUPPORT | 5 |
| COLOR | WHITE |
| SIDE PANEL | TRANSPARENT |
| MOTHERBOARD SUPPORT | E-ATX |
| WARRANTY | 5 Years |
Specifications:
| Model name | Eclipse P360A White |
| Model No | PH-EC360ATG-DWT01 |
| Case Dimensions | 455 x 200 x 465mm / 17.9 x 7.87 x 18.3 in |
| Form Factor | Mid Tower |
| Materials | Steel Chassis, Tempered Glass |
| Motherboard Support | E-ATX (Upto 280mm Wide), ATX, Micro-ATX, Mini-ITX |
| Front IO |
2x USB 3.0 Microphone Headphone Power Button Led Mode Button Led Color Button |
| Connectors |
Power Switch D-RGB Expansion D-RGB Third Party D-RGB MB Adapter HD-Audio USB 3.0 SATA Power |
| Slide Window | Tempered Glass Window |
| PCI Slots | 7 |
| Verticaal GPU | Yes, With Optical Vertical GPU Bracket |

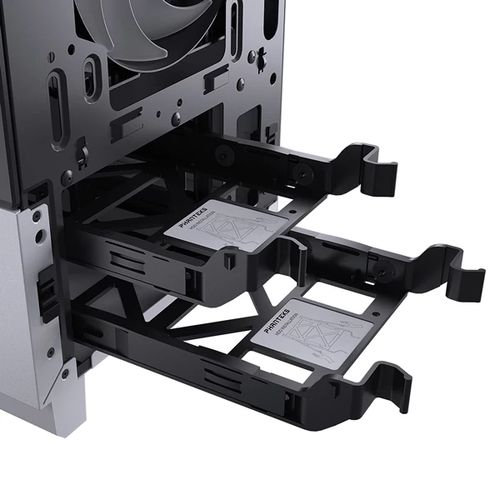

| Internal 3.5"bay | 2 (2x Included, Also Supports 2.5" Drives) |
| Internal 2.5"bay | 3 (2x Included) |
| Total Fan Mounts | 5 x 120mm / 4x 140mm |
| Front Fan | 2 x 120mm / 2x 140mm (2 x 120 D-RGB PWM Fans Included) |
| Top Fan | 2 x 120mm / 2x 140mm |
| Rear Fan | 1 x 120mm |
| Front Radiator | up to 240mm / up to 280mm (Max L: 315mm / W: 122mm / 142mm) |
| Top Radiator | Upto 240mm (Max Motherboard Component Height is 38mm) |
| Rear Radiator | 120mm |
| GPU Length | 400 mm / 15.7 in |
| CPU Cooler Height | 160mm / 6.3 in |
| Motherboard Size | Max 305 x 280 mm (E-ATX) |
| PSU | 250 mm / 9.8 in |
| Cable Management | 36mm / 1.4 in |
| Package Dimensions | 513 x 282 x 531 / 20.19 x 11.1 x 20.9 in |
| Net Weight | 6.7 kg / 14.8 lbs |
| Gross Weight | 7.9 kg / 17.4 lbs |
| Package Contents |
1 x Eclipse P360A Case 2 x 2.5" SSD Bracket 2 x 3.5 HDD Caddy 6 x Zip Ties 1 x Accessory Bag With Necessary Screws and Standoffs |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
