- PHANTEKS Eclipse P200A ITX Mini Tower Cabinet Performance Edition (Satin Black)
Description
Features of PHANTEKS Eclipse P200A Performance Edition (Satin Black)

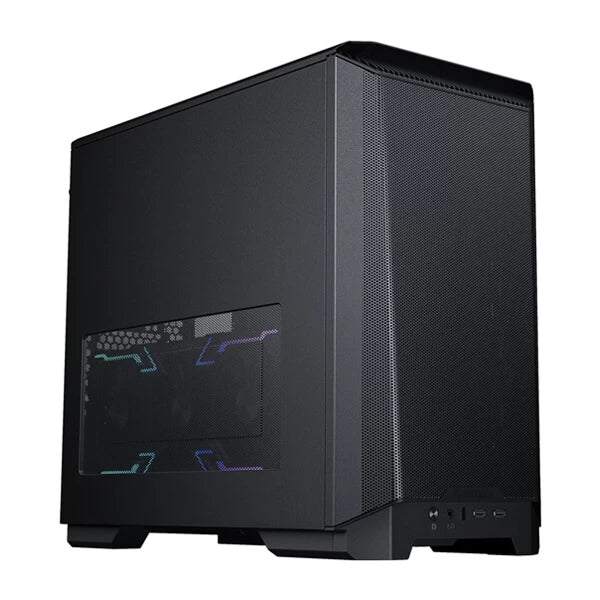

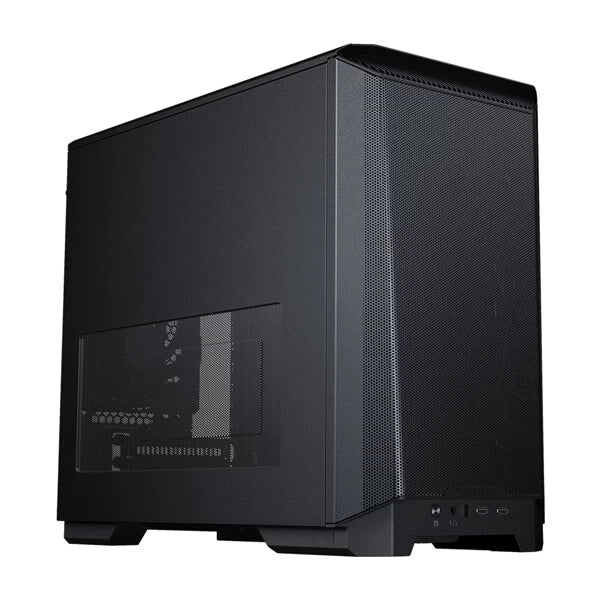

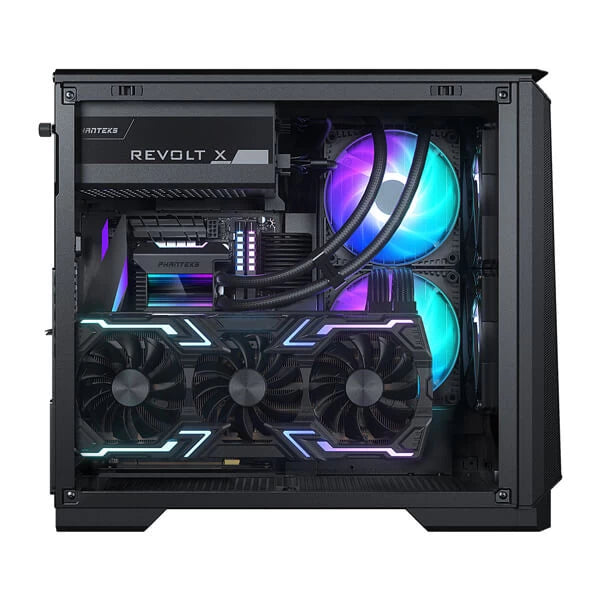

The PHANTEKS Eclipse P200A is a high airflow mini-ITX chassis featuring the Ultra-fine Performance Mesh to bring the highest cooling performance. The open interior offers plenty of space for standard ATX power supplies, triple slot Graphics Cards and plenty of 240/280 radiator options in the front and side of the chassis. The Eclipse P200A makes building a powerful yet compact ITX system a breeze.
- Features Ultra-fine Performance Mesh front and side panels for the highest cooling performance

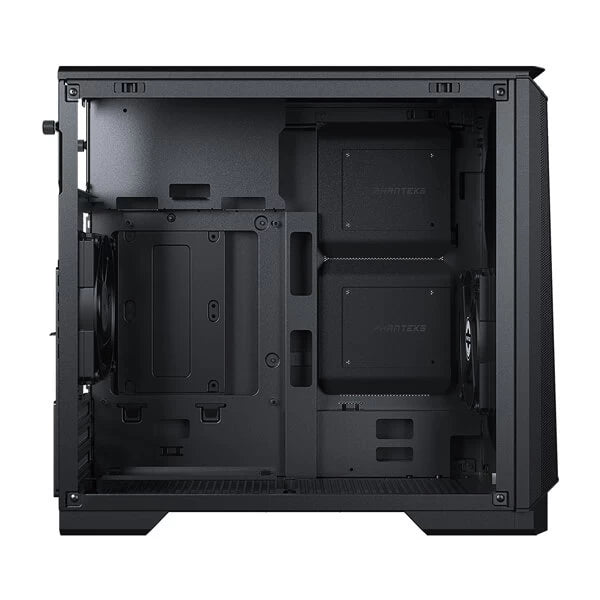

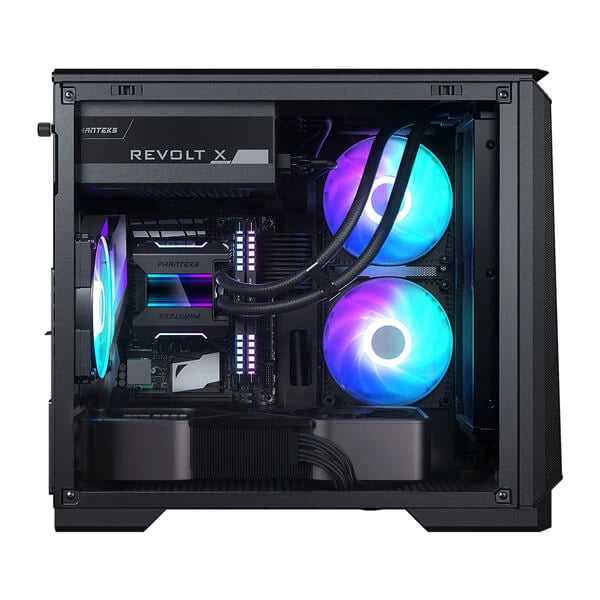

- Spacious open interior supports ATX power supplies, triple slot graphics cards, vertical GPU mounting support (with PH-CBRS-FL15) and up to 240/280mm front and 240mm side radiators

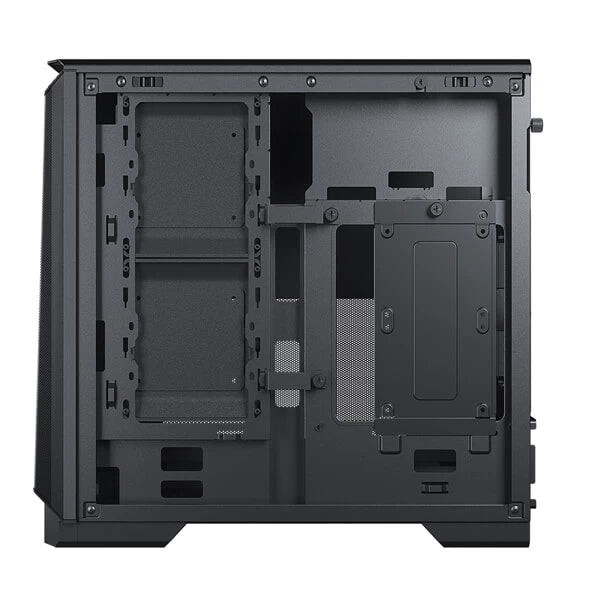

- Storage support for 2x 2.5” SSD and up to 4 HDD (with PH-HDDKT_03)
- Compact form-factor, within 30-liter volume
Specifications of PHANTEKS Eclipse P200A Performance Edition (Satin Black)
| Product Name | Eclipse P200A Performance |
| Model NO | PH-EC200AC-BK01 |
| UPC Code | 886523302179 |
| Dimension (WxHxD) | 205 mm x 365 mm x 400 mm / 8.07 in x 14.37 in x 15.75 in |
| Form Factor | Mini-ITX Tower |
| Material(s) | Steel Chassis |
| Motherboard Support | mini-ITX, mini-DTX |

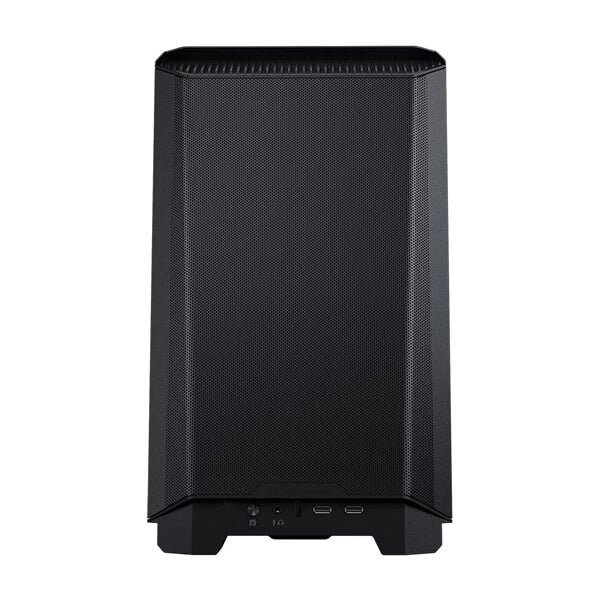

| Front I/O | 2x USB 3.0, Microphone/Headphone, Reset Button, Power Button |
| Internal Connectors | Power Switch, Reset Switch, Power LED, HD-audio, USB 3.0, Sata |
| Side Window | No |
| PCI slots & Storage Bays | |
| PCI slots | 3 |
| Vertical GPU | Yes 3-slots, Riser Cable sold separately |
| Internal 3.5” bay | 4 (Stackable 3.5” Bracket sold separately) |
| Internal2.5" bay | 4 (4x included) |
| Fan Positions | |
| Front |
2x(2x included)x120mm fan 2x140mm fan |
| Side | 2x120mm fan |
| Rear | 1x120mm fan |
| Bottom | 2x120mm fan |
| Radiator Positions | |
| Front |
Up to 240(120mm radiator) Up to 280(140mm radiator) |
| Side | Up to 240(120mm radiator) |
| Rear | 120(120mm radiator) |
| Clearances | |
| GPU length | 355 mm / 13.98 in |
| GPU thickness | 3-slot, 65mm |
| CPU cooler height | 165 mm / 6.5 in |
| CPU cooler height with V-GPU | 72mm or 92mm depending on Vertical PCI slot |
| Front Radiator Clearance | 140x325mm |
| Radiator Clearance behind front panel | 240 radiators only, 30mm thickness |
| Side Radiator Clearance | 120x279mm |
| PSU length | 205mm (190mm recommended) |
| Packaging | |
| Dimensions (WxHxD) | 415 x 285 x 485mm / 16.3 x 11.2 x 19.1 in |
| Net Weight | 5.3kg / 12lbs |
| Gross Weight | 6.4kg / 14lbs |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
