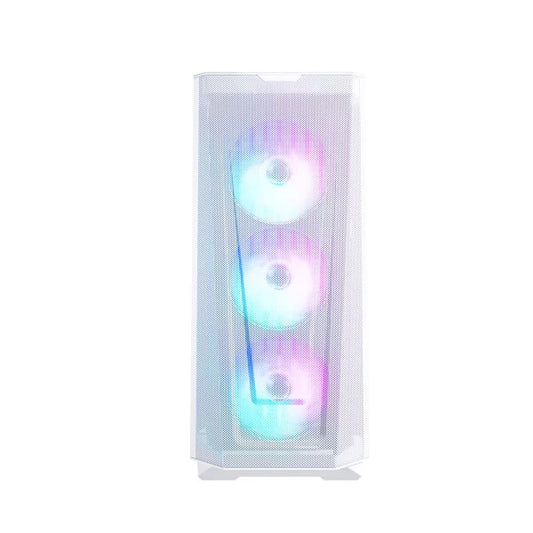

- PHANTEKS Eclipse G360A DRGB ATX Mid Tower Cabinet (White)
Description
Features of PHANTEKS Eclipse G360A DRGB (White)

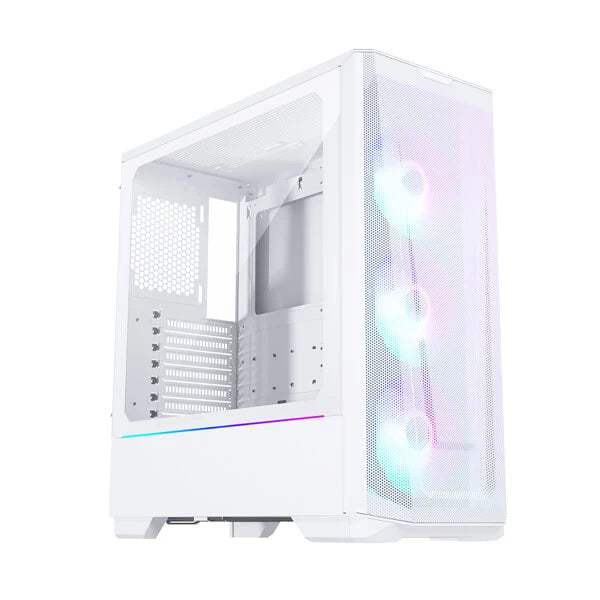

The metal front panel features Phanteks' Ultra-fine Performance Mesh design that combines high airflow performance with dust filtration, all-in-one. With its high-performance design, the G360A is ready for powerful gaming setups, offering 360 radiator options in the top and front while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
Like all Phanteks lighting products, the integrated D-RGB lighting is simple to control with pre-programmed lighting effects and requires no software. Optionally, the D-RGB controller can be synchronized with compatible motherboards and expanded with more D-RGB products.
High performance design

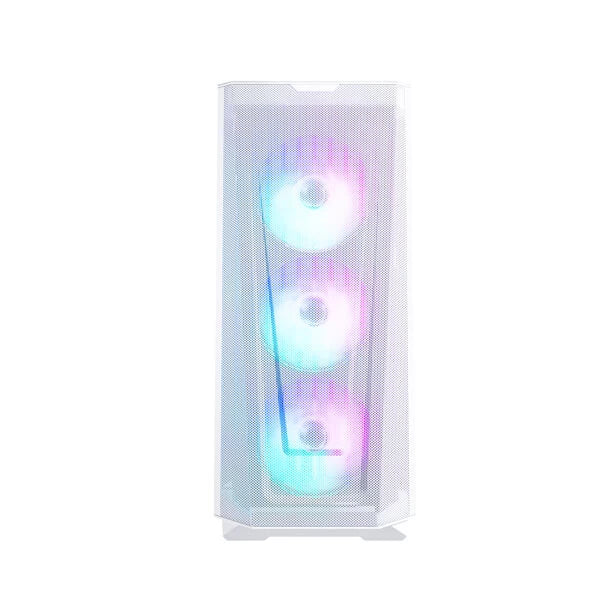

Equipped with the Ultra-fine Mesh front panel, the G360 was designed to meet next gen cooling demands. It brings high-end cooling capabilities with 360 radiator support in the front and top of the chassis, 7 fan locations and plenty of clearance for large GPUs.
Great value yet capable
The Eclipse Series from Phanteks is known for offering a great value across its lineup. The G360A brings unique capabilities and features to house even the highest end gaming systems in a compact ATX mid-tower chassis.
Integrated lighting

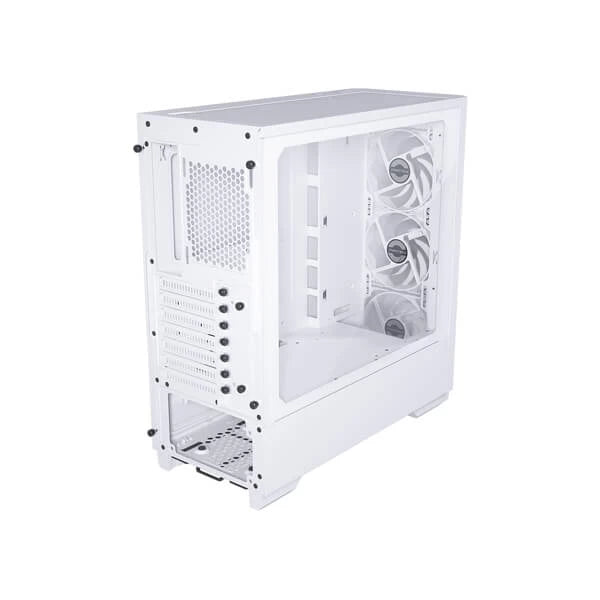

Equipped with its own Digital-RGB controller, the Eclipse G360A makes lighting easy. It’s software-free with manual control and programmed with tasteful lighting effects out of the box. Three Digital-RGB 120mm fans are pre-installed and a LED strip is integrated along the tempered glass panel. Like all of Phanteks’ lighting products, the Digital-RGB controller can be expanded with more lighting products and/or synced with motherboards to allow for software control.
The Eclipse G360A is ready for next-gen performance with incredible value.
Specifications of PHANTEKS Eclipse G360A DRGB (White)
Model Name | Eclipse G360A White |
Model No. | PH-EC360ATG-DMW02 |
Case Dimention | 455 x 200 x 465 mm/ 17.9 x 7.87 x 18.3 in |
Form Factor | Mid Tower |
Materials | Steel Chessis,Tempered Glass |
MotherBoard Support | E-ATX(up to 280mm wide), ATX, micro-ATX, mini-ITX |

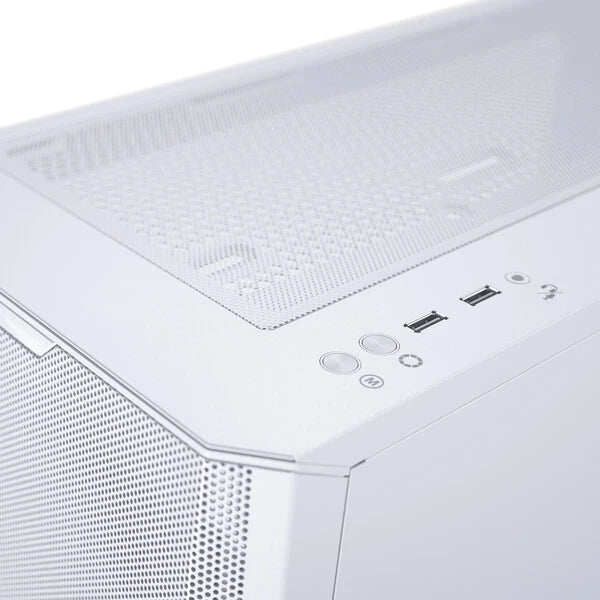

Front IO |
2x USB 3.0 Microphone/Headphone combo Power Button DRGB Mode Button DRGB Colour Button |
Connectors |
Power Switch D-RGB Expansion D-RGB Third Party D-RGB MD Adapter HD-Audio USB 3.0 SATA Power |

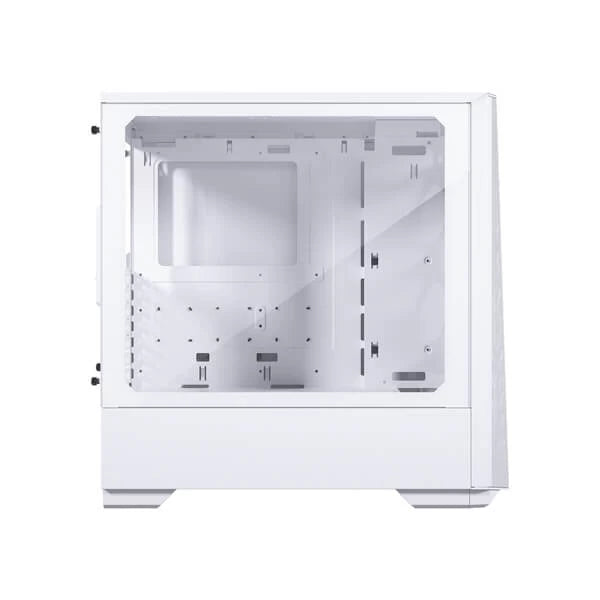

Side Window | Tempered Glass Side Panel |
PCle Slots | 7 |
Vertical GPU | Yes, With Optional Vertical GPU Bracket |
Internal 3.5'' bay | 2(2xincluded,also support 2.5" drive) |
Internal 2.5'' bay | 3(2xincluded) |
Total Fan Mounts | 7 x 120mm/ 4 x 140mm |
Front Fan | 3 x 120mm/ 2 x 140mm |
Top Fan | 3 x 120mm/ 2 x 140mm |
Rear Fan | 1 x 120mm |
Front Radiator | up to 360mm/ up to 280 mm |
Top Radiator | up to 360mm |
Rear Radiator | 120 |
GPU Length | 400mm/15.7in |
CPU Cooler Height | 162mm/6.3in |
Motherboard Size | Max 305 x 280mm (E-ATX) |
PSU | 220 mm or 280 mm/8.6in or 11in |
Cable Management | 36mm/1.4 in |
Package Dimension | 513 x 282 x 537 mm/ 20.19 x 11.1 x 20.14 in |
Net Weight | 6.51 Kg/14.35 Ibs |
Gross Weight | 7.84 Kg/17.28 Ibs |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
