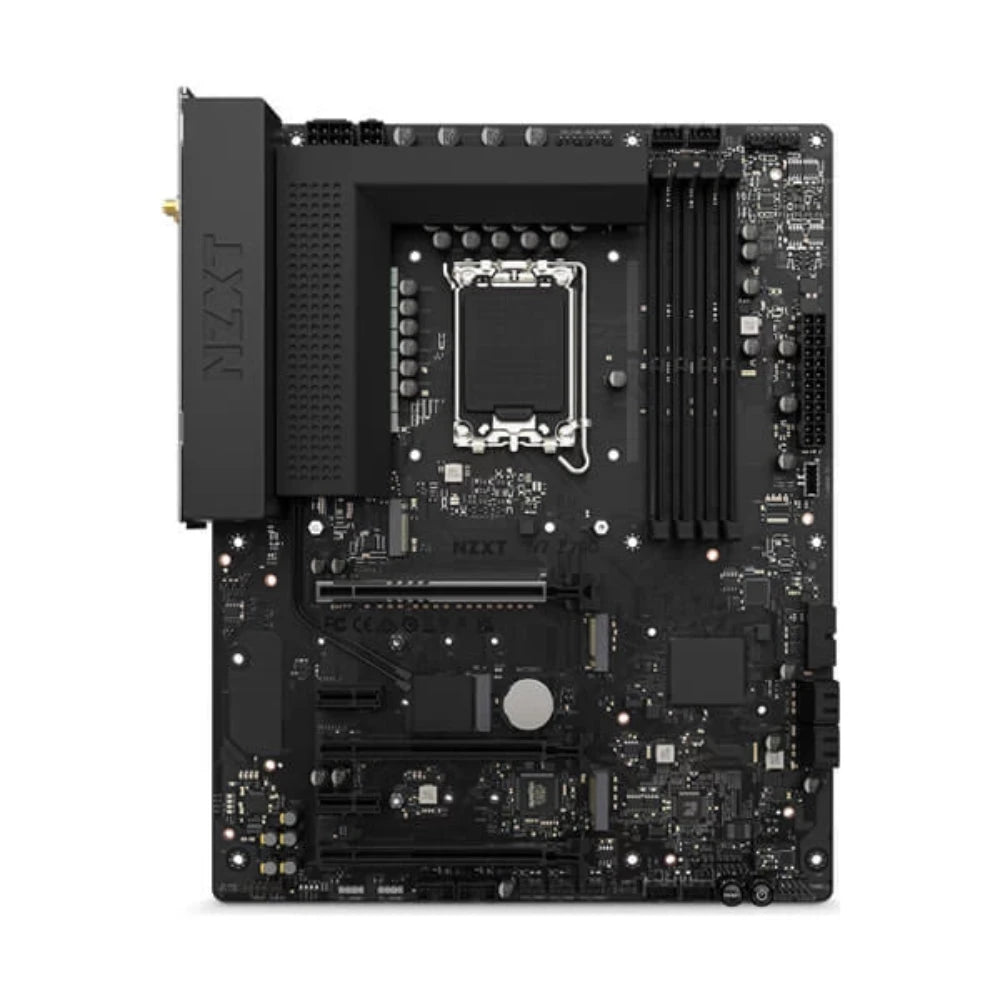

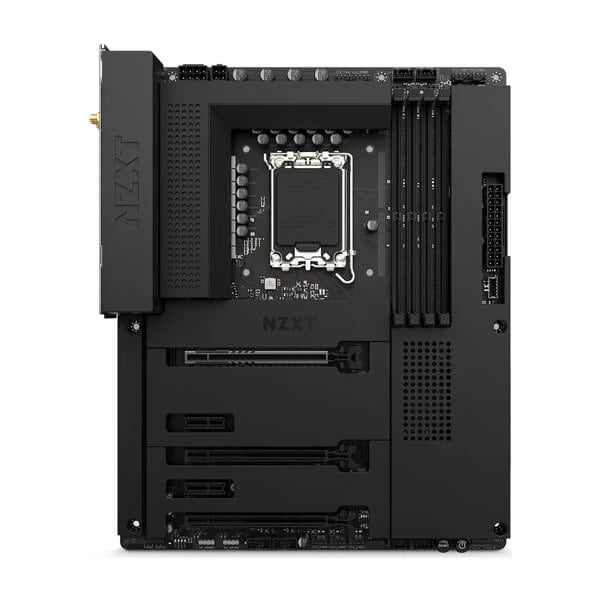

NZXT N7 Z790 Wi-Fi DDR5 ATX Motherboard (Black)
This NZXT motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset. Compatible with Intel® 13th and 12th Generation Core. Supports memory speeds of up to 6000 MHz and Intel® XMP 3.0
Features:
This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.
- 16+1+2 DrMOS Power Phase Design with 2oz Copper PCB

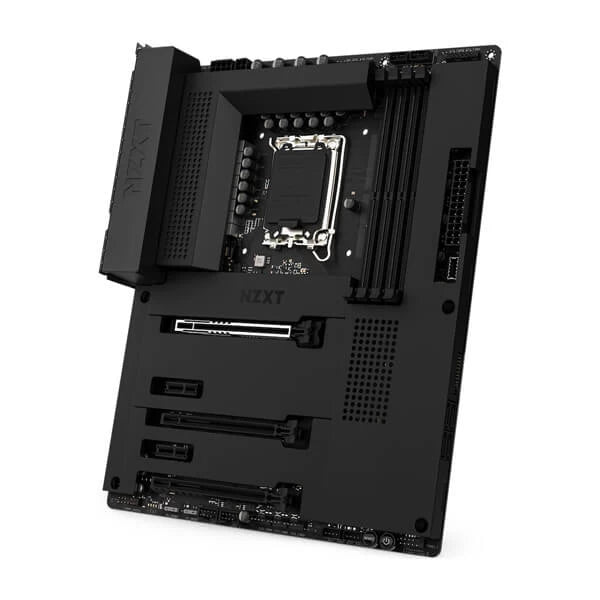

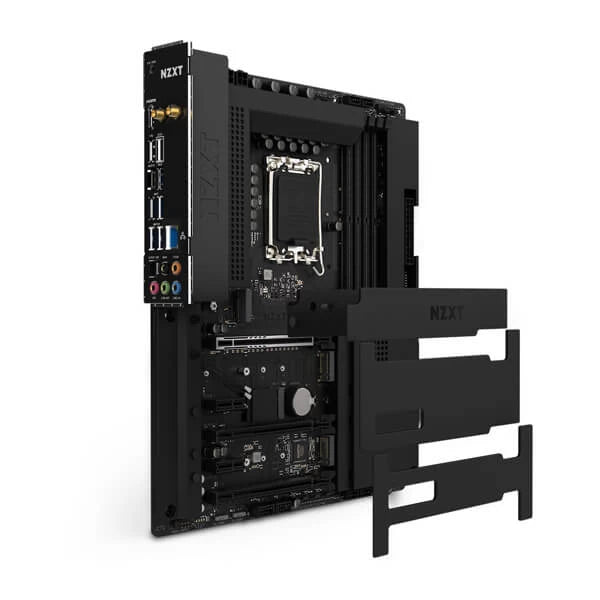

- Full cover in black or white with integrated heat spreader for the top-most M.2 slot
- Numerous presets and custom modes via NZXT CAM software
- Convenient fan profiles within NZXT CAM for seven independent fan channels
- Integrated rear I/O shield and efficient layout for optimal setup
- Compatible with Intel® 13th and 12th Generation Core™ i9, Core™ i7, Core™ i5 processors
- Designed with Intel® Z790 Express Chipset with Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Three M.2 connectors for storage devices
- 8-channel high-definition audio
Specifications:
| CPU & Socket | |
| Intel® Socket LGA 1700 for Intel® 13th and 12th Generation Processors | Intel® Core™ Processors. Please refer to CPU support list. |
| Intel® Hybrid Technology | Supported |
| Turbo Boost Max 3.0 Technology | Supported |
| Intel® Thermal Velocity Boost (TVB) | Supported |
| Intel® Adaptive Boost Technology (ABT) | Supported |
| Wireless | |
| Dual Band Wi-Fi 6E | Supported |
| Bluetooth | V5.2 |
| Audio | |
| Realtek® | ALC1220 Codec |
| Memory | |
| DIMM Slots | 4 |
| Max Memory Support | 128GB, DDR5 |
| Memory Architecture | Dual-Channel |
| OC Frequency | 5000+(O.C.). Please refer to memory QVL. |
| Intel® Extreme Memory Profile (XMP) 3.0 | Supported |

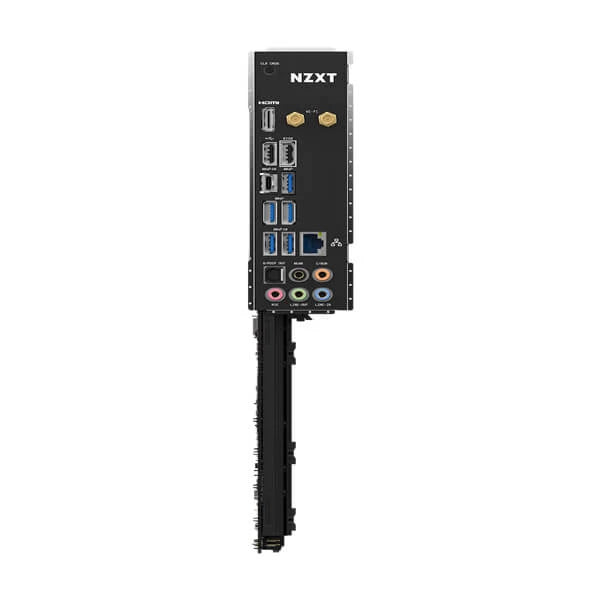

| Rear I/O | |
| Wireless antenna SMA connectors | 2 |
| HDMI™ port | 1 |
| USB 2.0 | 2 |
| USB 3.2 Gen 2x2 Type-C port | 1 |
| USB 3.2 Gen 2 ports | 2 |
| USB 3.2 Gen 1 ports | 3 |
| Clear CMOS button | 1 |
| LAN (RJ45) port | 1 |
| Audio jacks | 5 |
| Optical S/PDIF Out port | 1 |
| Expansion Slots | |
| PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode | 1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode | 2 (Supports NVMe SSD as boot disks) |
| PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2) | 2 (Supports NVMe SSD as boot disks) |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2 | 1 |
| Internal I/O | |
| 24-pin ATX power connector | 1 |
| 8+4-pin ATX 12V power connector | 1 |
| 4-pin CPU_FAN connector | 1 |
| 4-pin AIO_PUMP connector | 1 |
| 4-pin SYS_FAN connectors | 5 |
| NZXT RGB LED connectors | 4 |
| 5V ARGB LED connector | 2 |
| USB 2.0 header (Up to 4 USB 2.0 ports) | 2 |
| USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports) | 1 |
| USB 3.2 Gen2x2 front panel header (For USB Type-C) | 1 |
| Front panel audio connector | 1 |
| Power button | 1 |
| Reset button | 1 |
| POST LEDs | 4 |
| Storage | |
| M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode) | 1 |
| M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode) | 1 |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode) | 1 |
| SATA 6Gb/s ports | 4 |
| Intel® Volume Management Device (VMD) | Supported |
| NVMe SSD as boot disks | Supported |
| LAN | |
| Realtek® | RTL8125BG 2.5G LAN |
| General | |
| Operating System | Windows® 11/10 64-bit |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
