- NZXT N7 B650E (Wi-Fi) Motherboard ( White )
Description

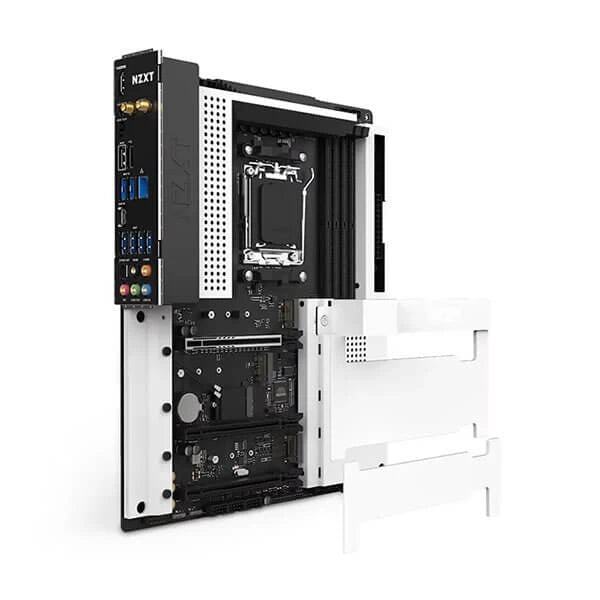

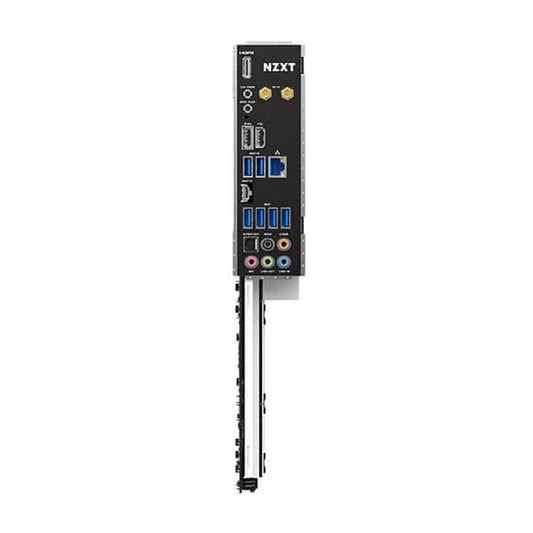

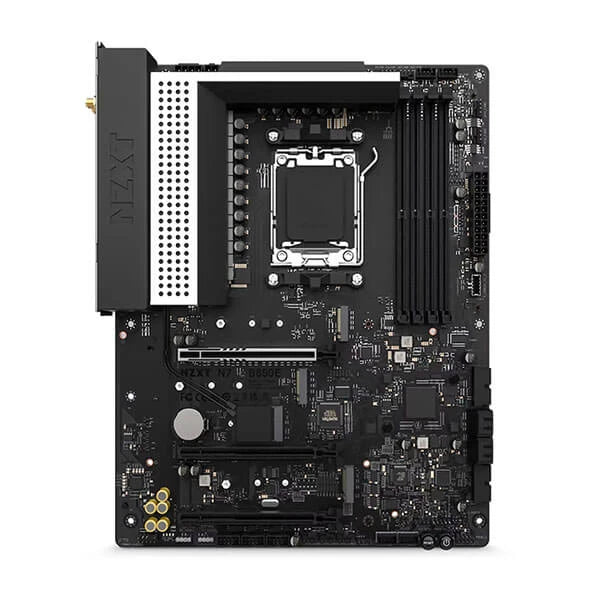

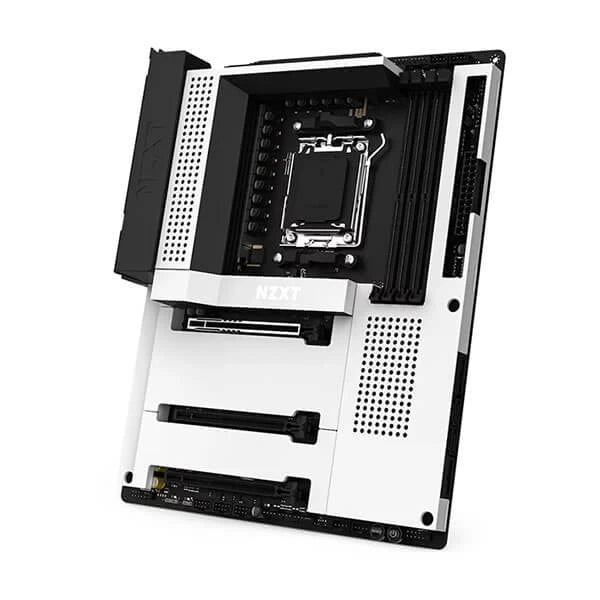

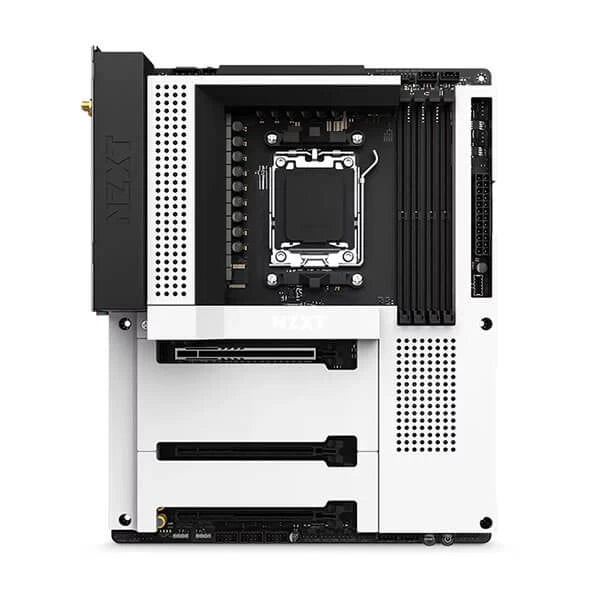

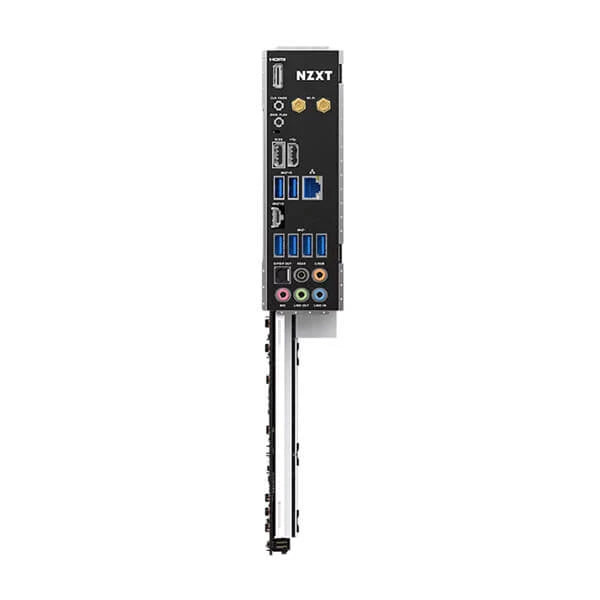

NZXT N7 B650E (Wi-Fi) Motherboard ( White )
Features:
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
- Integrated rear I/O shield and efficient layout
- 16+2+1 Power phase design with 90A Smart Power Stage(SPS)
Specifications:
| Model | N7-B65XT-B1 |
| Color | White |
| Chipset | AMD:B650 |
| Memory |
DIMM Slots:4 Max Memory Support:128GB Memory Architecture:Dual-Channel OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Extreme Memory Profile (XMP):Supported EXTended Profiles for Overclocking (EXPO):Supported |
| CPU | AMD Socket AM5 Ryzen™ 7000 Series Processors:Supported |
| Expansion Slots |
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1 |
| Integrated Graphics |
Integrated AMD RDNA™ 2 graphics:Supported HDMI 2.1 TMD Compatible:1 HDR:Supported HDCP 2.3:max. resolution up to 4K 60Hz |
| Storage |
M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1 M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1 SATA 6Gb/s ports:4 RAID 0/1/10 for SATA storage devices:Supported RAID 0/1/10 for M.2 NVMe storage devices:Supported NVMe SSD as boot disks:Supported |
| LAN | Realtek®:RTL8125BG 2.5G LAN |
| Wireless |
802.11ax Wi-Fi 6E Module:Supported Bluetooth:V5.2 |
| Audio | Realtek®:ALC1220 Codec |
| Rear I/O |
Wireless antenna SMA connectors:2 HDMI™ port:1 USB 2.0:2 USB 3.2 Gen 2 Type-C port:1 USB 3.2 Gen 2 ports:2 USB 3.2 Gen 1 ports:4 Clear CMOS button:1 BIOS Flashback button:1 LAN (RJ45) port:1 Audio jacks:5 Optical S/PDIF Out port:1 |
| Internal I/O |
24-pin ATX power connector:1 8+4-pin ATX 12V power connector:1 4-pin CPU_FAN connector:1 4-pin AIO_PUMP connector:1 4-pin SYS_FAN connectors:5 NZXT RGB LED connectors:4 5V ARGB LED connector:2 USB 2.0 header (Up to 6 USB 2.0 ports):3 USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2 USB 3.2 Gen2 front panel header (For USB Type-C):1 Front panel audio connector:1 Power button:1 Reset button:1 POST LEDs:4 |
| General | System Requirements:NZXT CAM software requires Microsoft Windows® 11/10 operating system. |
| Form Factor | ATX |
| Certifications | FCC, CE, WHQL, ErP/EuP Ready |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
