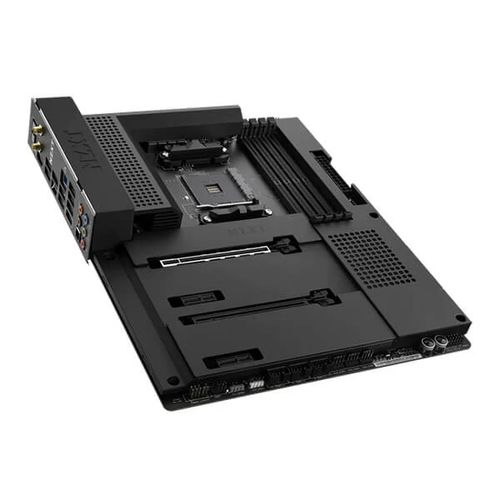

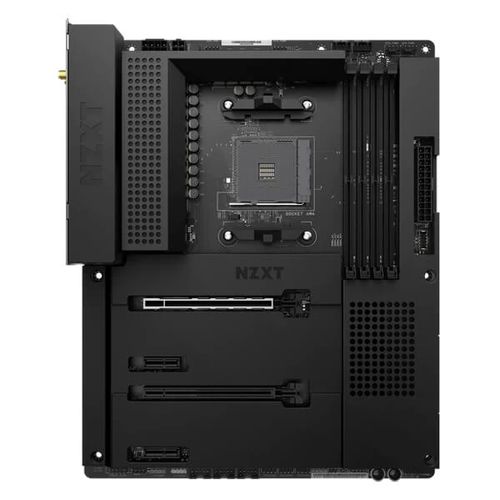

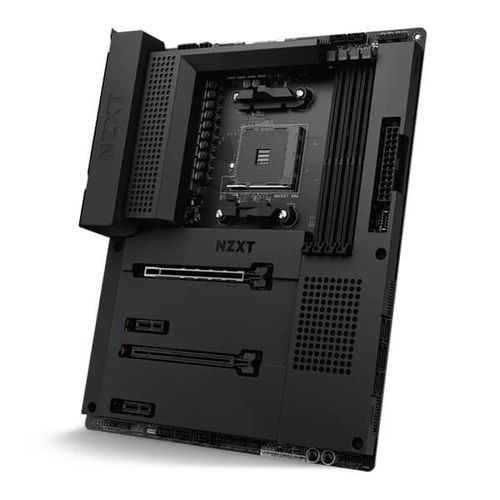

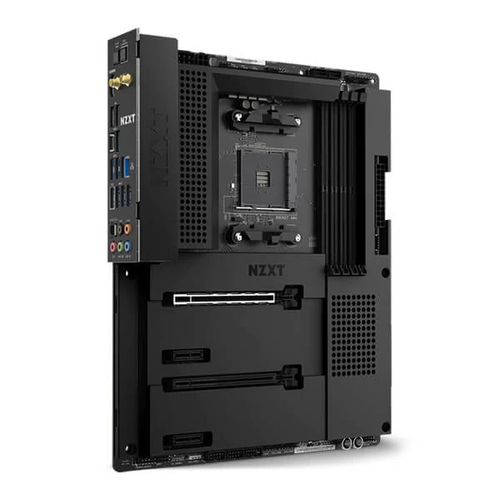

- NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)
Description
Feature of NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)
- WiFi 6E connectivity
- Digital RGB lighting control through NZXT CAM
- Digital fan control for fan profiles within NZXT CAM for seven independent fan channels

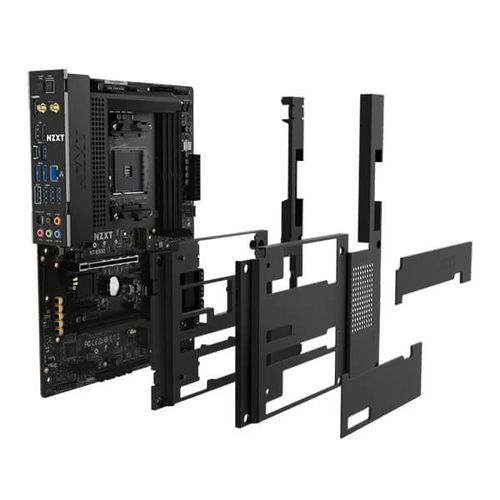

- Integrated rear I/O shield and efficient layout
- Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
- Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
- Two M.2 connectors for storage devices
- Multi-GPU support with AMD CrossFireX™ Technology
- Supports memory overclocking up to 4600+ MHz and XMP
- 8-channel high-definition audio
AMD Gaming Motherboard with Wi-Fi and NZXT CAM Features
NZXT N7 B550 Wifi DDR4 provides everything builders need to get the job done. Featuring Wi-Fi 6E, Bluetooth, and a streamlined board layout, the N7 B550 simplifies the building process. With built-in digital RGB and fan controls, users can create fan curves or control RGB lighting from any manufacturer easily via NZXT CAM.
- Compatible with 3rd Gen AMD Ryzen processors.
- Includes Wi-Fi 6E and Bluetooth V5.2.
- Two M.2 connectors for storage devices.
- Four RGB and seven fan channels powered by NZXT CAM.
Highly Expandable
There is an array of ports and slots to expand your PC. The N7 B550 supports USB-C, two M.2 connectors for storage devices, multi-GPU support with AMD CrossFireX Technology, 5.1-Channel audio, and much more
For AMD Processors
Compatible with 3rd Gen AMD Ryzen processors (3000, 4000, and 5000 Series Processors). Not supported are the AMD Ryzen 5 3400G and Ryzen 3200G processors.
Smart Controls
The N7 B550 has digital RGB and Fan control, allowing intuitive control of four RGB lighting channels and seven fan channels through NZXT CAM. Lighting accessories from all manufacturers are supported.
Specifications of NZXT N7 B550 Wifi DDR4 AMD Motherboard (Matte Black Cover)
| Product Model | N7-B55XT-B1 |
| CPU & Socket |
AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors) - Supported AMD Ryzen™ 5 3400G and Ryzen™ 3200G - Not Supported |
| Chipset | AMD® B550 |
| Memory |
4 x DIMM, Max. 128GB, DDR44666+ MHz - OC Frequency (Vermeer CPUs) 4666+ MHz - OC Frequency (Matisse CPUs)4733+ MHz - OC Frequency (Renoir APUs) 3200/2933/2667/2400/2133 - Base Frequency ECC & non-ECC, un-buffered memory type Dual-channel memory architecture XMP Supported |
| Integrated Graphics |
AMD Radeon™ Vega Series Graphics in Ryzen Series APU - HDMIHDMI™ with max. resolution of 4096x2160@60Hz Maximum shared memory of 16GB with 32GB installed Microsoft PlayReady® Supported |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX™ Technology |
| Storage |
1 x M.2 Type 2242/2260/2280 (x4 mode) - (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0) 1 x M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode) 6 x SATA 6Gb/s - (M2_2 and SATA3_5_6 share lanes) RAID 0/1/5/10 Supported |
| LAN | Realtek® RTL8125BG 2.5G |
| Wireless |
Intel® Dual-Band Wireless - AX210 Wi-Fi 6E 802.11 a/b/g/n/ac/ax Protocol 2.4 / 5 / 6GHz Frequency Bands Supports MU-MIMO |
| Bluetooth | Bluetooth V5.2 |
| Audio |
Realtek® ALC1220 Codec 8-Channel High Definition Audio, 32-bit / 192KHz DAC Nichicon Fine Gold Series Audio Capacitors |

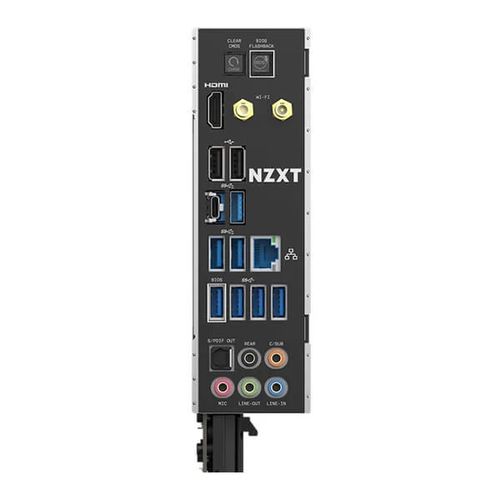

| Rear I/O |
1 x USB 3.2 Gen 2 Type-C 3 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 ports 2 x USB 2.0 ports 1 x HDMI 2.1 2 x Wireless Antenna (2T2R) 1 x LAN (RJ45) Port 1 x 5.1-Channel Audio Jacks 1 x Optical S/PDIF 1 x BIOS Flashback Button 1 x Clear CMOS Button |
| Expansion Slots |
1 x PCIe x16 (x16 mode) - (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0) 1 x PCIe x16 (x4 mode) 2 x PCIe 3.0 x1 |
| Internal I/O |
1 x 24-pin EATX power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin CPU_FAN connector 1 x 4-pin AIO_PUMP connector (Up to 24W) 5 x 4-pin SYS_FAN connectors (Up to 24W)1 x CPU_FAN Connector (Up to 24W) 2 x NZXT RGB LED connectors 1 x 5V Addressable RGB connector 1 x 12V RGB connector1 x M.2 (M Key), Type 2242/2260/2280 - (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode) 1 x M.2 (E Key) (For wireless cards) 6 x SATA 6Gbps Ports 1 x USB 3.2 Gen 2 Header (Type-C) 1 x USB 3.2 Gen 1 Header (Up to 2 ports) 3 x USB 2.0 Header (Up to 6 ports) 1 x Front Panel Audio 1 x Power Button 1 x Reset Button 4 x POST LEDs |
| Operating System | Microsoft® Windows® 10 (64-bit) |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, Specifications, Price are subject to change without notice. |
