Description
Features of NZXT H7 Flow RGB ATX Mid Tower Cabinet ( White )

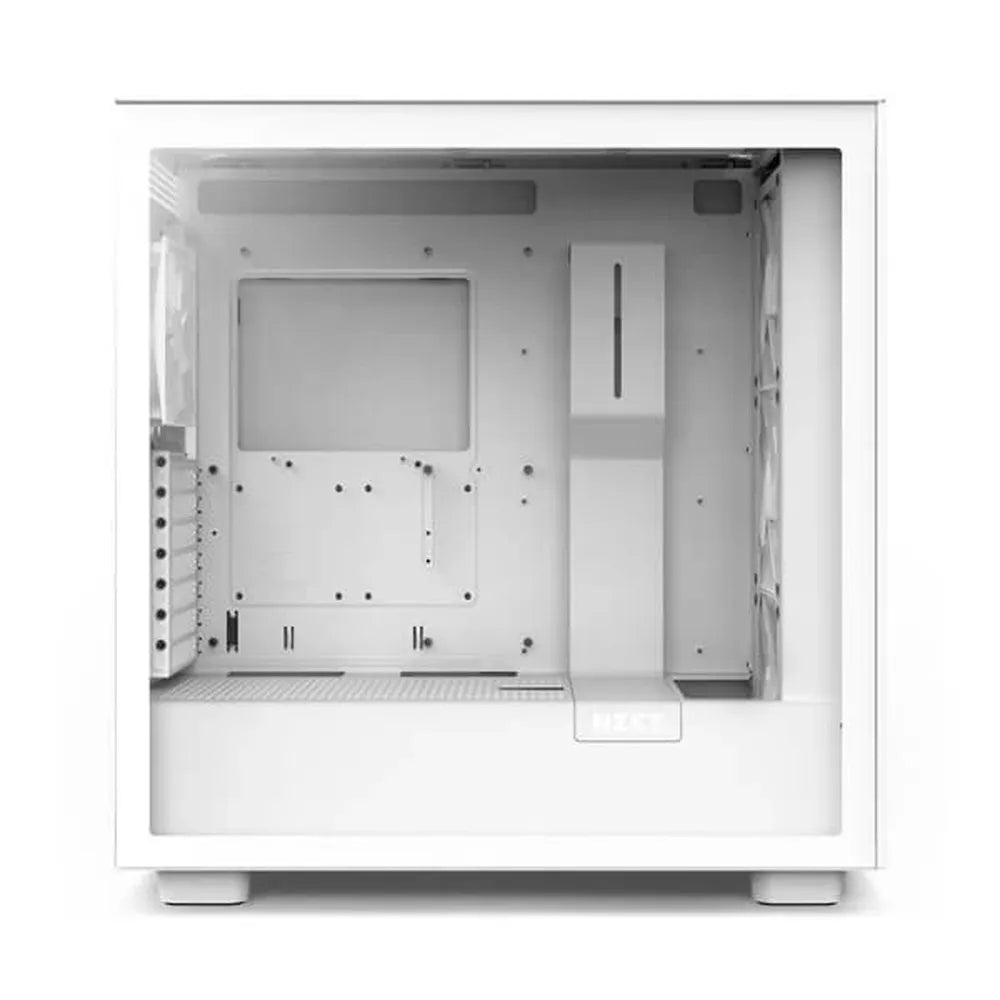

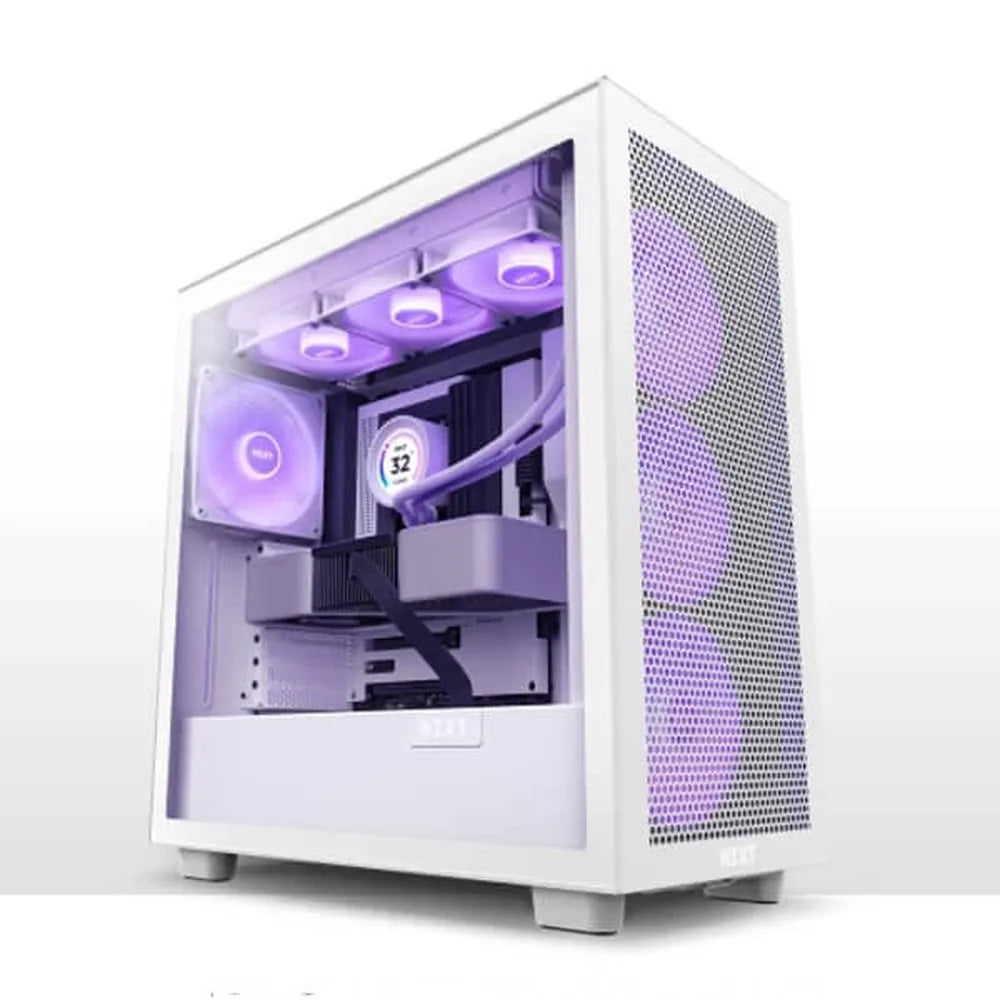

NZXT H7 Flow RGB Cabinet comes with white color design. It is featuring with three pre-installed 140mm RGB Core fans and one F120Q Quiet Airflow fans. Two top-mounted USB 3.2 Type-A ports, one top-mounted USB 3.2 Type-C port.
The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
- Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
- Perforated front & top panels enable maximum thermal performance
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels (tinted panels on black variant only)
- Front & top support radiators up to 360mm
Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard - Supports vertical GPU mounting (Sold Separately)
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
Specification of NZXT H7 Flow RGB ATX Mid Tower Cabinet ( White )
Model Number | CM-H71FW-R1 |
Key Specs | |
Motherboard Support | Mini-ITX, Micro-ATX, ATX |
Enclosure Type | Mid-Tower |
Case Material (Black) | SGCC Steel, Dark Tinted Tempered Glass |
Fan Support | |
Front | 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included) |
Top | 3 x 120mm / 2 x 140mm |
Rear | 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) |
Filters | All Air Intakes |
Dimensions | |
Height (With Feet) | 505mm |
Height (Without Feet) | 480mm |
Width | 230mm |
Depth | 480mm |
Weight | 10.57kg |
Radiator Support | |
Front | Up to 360mm with Push/Pull |
Top | Up to 360mm |
Rear | Up to 140mm |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 185mm |
Max GPU Clearance | Up to 400mm |
Front Radiator Clearance | 60mm |
Cable Management | 18-22mm |
Top Radiator Clearance | 30mm |
PSU Clearance | Up to 200mm |
Fan Specs | |
Model | F140 RGB Core Fan (Case Version) |
Speed | 1200 ± 120 RPM |
Airflow | 61.74 CFM |
Static Pressure | 2.06mm-H2O |
Noise | 29.05 dBA |
Fan Connector | 3-pin |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 2 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static Pressure | 1.05 mm-H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Drive Bays | |
2.5" | 4+2 |
3.5" | 2 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
