- NZXT H7 Elite ATX Mid Tower Cabinet (White)
Description
Features of NZXT H7 Elite ATX Mid Tower Cabinet (White)

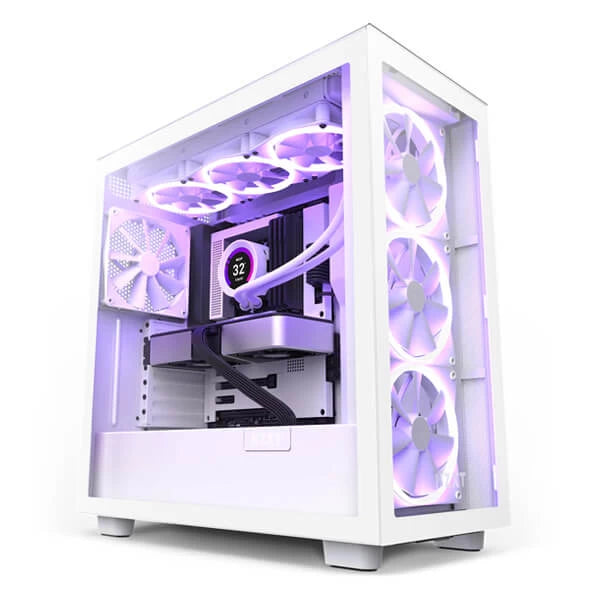

This Nzxt H7 Elite ATX Cabinet is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.
- Perforated top panel
- Intuitive cable management system with wide channels, hooks, & straps

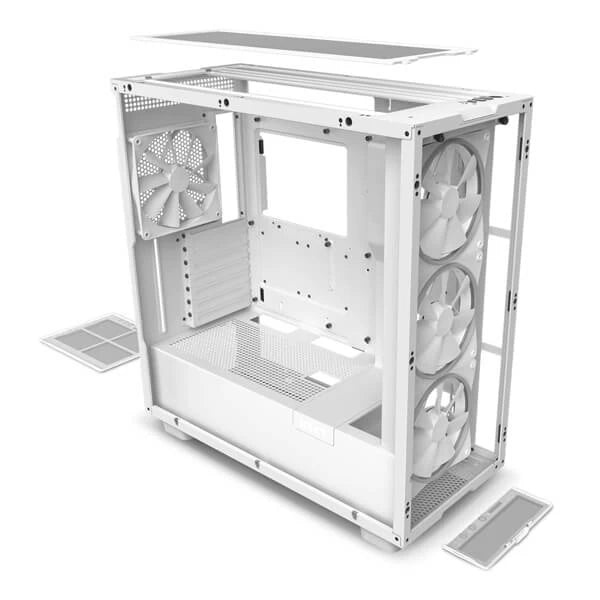

- Tool-less access to front & side panels
- Front & top support radiators up to 360mm
- Three pre-installed F Series RGB 140mm Fans
- One pre-installed 140mm F Series Quiet Airflow Fan
- Supports vertical GPU mounting (Sold Separately)
- Built-in RGB & Fan Controller V2 w/ NZXT CAM
- Tempered glass front panel
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
- Two color options (Matte Black, Matte White)
BETTER THERMALS

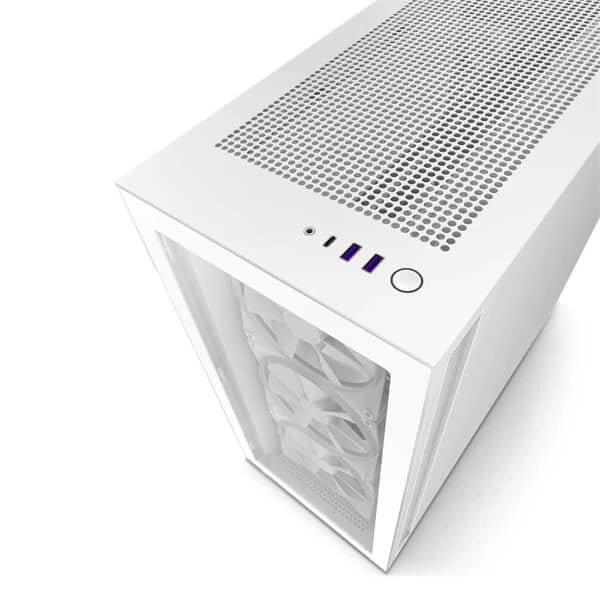

We’ve opened up the top panel to achieve even better thermal efficiency. The perforated panel provides improved ventilation as warm air flows through the top of the chassis.
RADIATORS
The top and front of the case support radiators up to 360mm for maximum cooling support. Three pre-installed RGB fans mean users get RGB cooling right out of the box.
BUILDING SIMPLIFIED

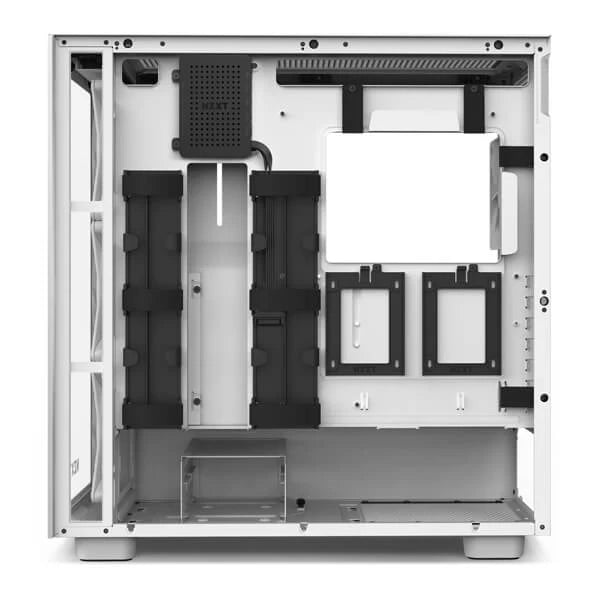

Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks add stability.
A MODERN LOOK
The H7 combines the modern look of the H series with new color options that fit in seamlessly with any aesthetic. Each color is paired with glass tinting that complements the respective chassis.
BETTER WITH CAM
The built-in RGB & Fan Controller allows users to personalize RGB lighting and control fans with NZXT CAM. Mix and match any NZXT RGB lighting accessories and sync them across multiple channels.

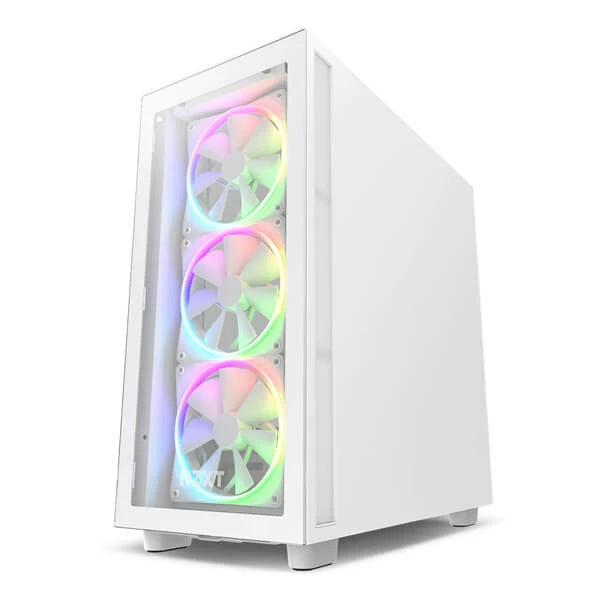

Pre-installed F Series Fans
High-quality cooling right out of the box with included fans.
Building Simplified
The widened cable channels, built-in hooks, and Velcro straps streamline the building process.
Multiple Colorways
The nzxt cpu case provides a versatile canvas to showcase your style with clear glass panels. Also available in all-black and white & black.
Get the affordable cpu case with fan with the huge variety with us!
Specifications of NZXT H7 Elite ATX Mid Tower Cabinet (White)
Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Tempered Glass |
Fan Support | |
Front | 3 x 120mm / 3 x 140mm |
Top | 3 x 120mm / 2 x 140mm |
Rear | 1 x 120mm / 1 x 140mm |
Filters | All Air Intakes |
Dimensions | |
Height | 505mm (With Feet) |
Width | 230mm |
Depth | 480mm |
Weight | 11.36 kg |
Radiator Support | |
Front | Up to 360mm with Push/Pull |
Top | Up to 360mm |
Rear | Up to 140mm |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 185mm |
Max GPU Clearance | Up to 400mm |
Front Radiator Clearance | 60mm |
Top Radiator Clearance | 30mm |
Cable Management | 18-22mm |
Model Number | CM-H71EW-01 (White) |
Fan Specs | |
Model | F140Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 99.56 CFM |
Static Pressure | 1.14 mm-H2O |
Noise | 24.18 dBA |
Fan Connector | 3-pin |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 2 |
USB 3.2 Gen 2 Type-C | 2 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F140 RGB |
Speed | 500 - 1800 RPM |
Airflow | 24.85 - 89.48 CFM |
Static Pressure | 0.94 - 3.39 mm-H2O |
Noise | 20 - 32.5 dBA |
Fan Connector | 4-pin |
RGB and Fan Controller | |
Fan Channels | 3 |
NZXT RGB Connector | 6 (Support up to 120 LEDs) |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Drive Bays | |
2.5" | 4+2 |
3.5" | 2 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
