Description

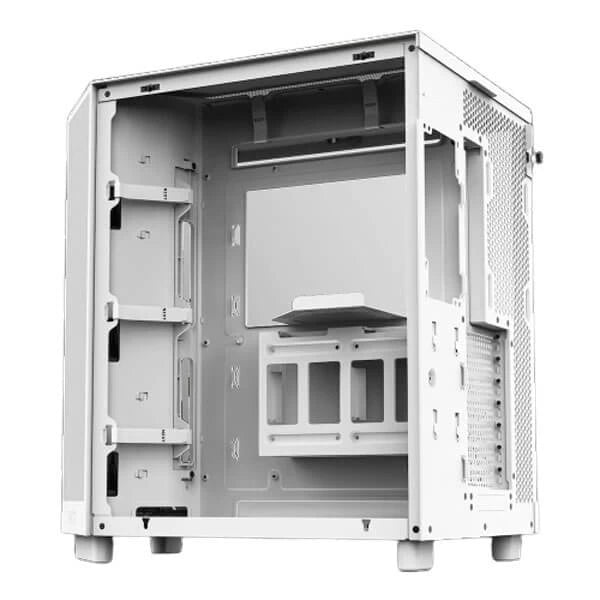

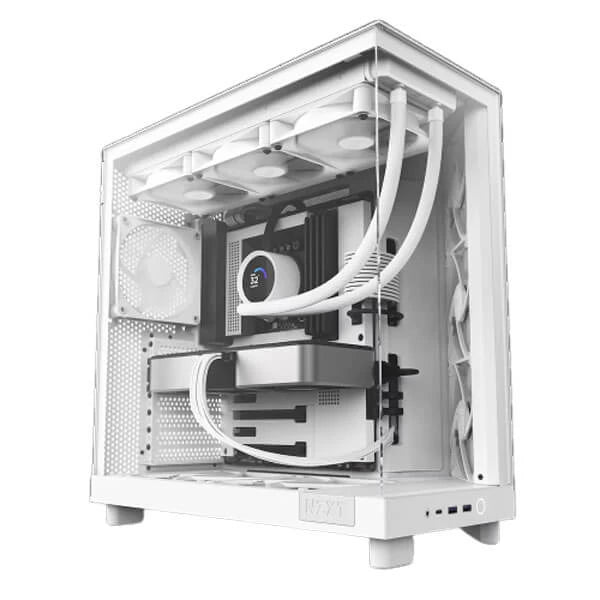

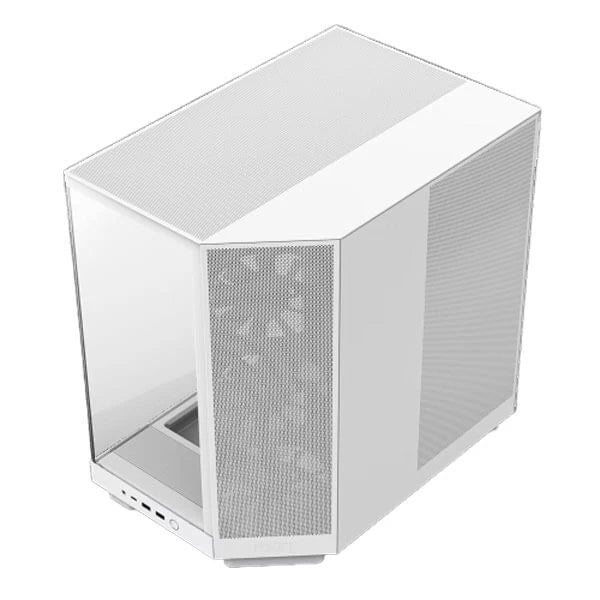

Features of NZXT H6 Flow ATX Mid Tower Cabinet (White)
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the NZXT H6 Flow ATX Cabinet cabinets panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design of nzxt cpu case improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Compact Dual-Chamber
Improves cooling performance and creates an uncrowded aesthetic.

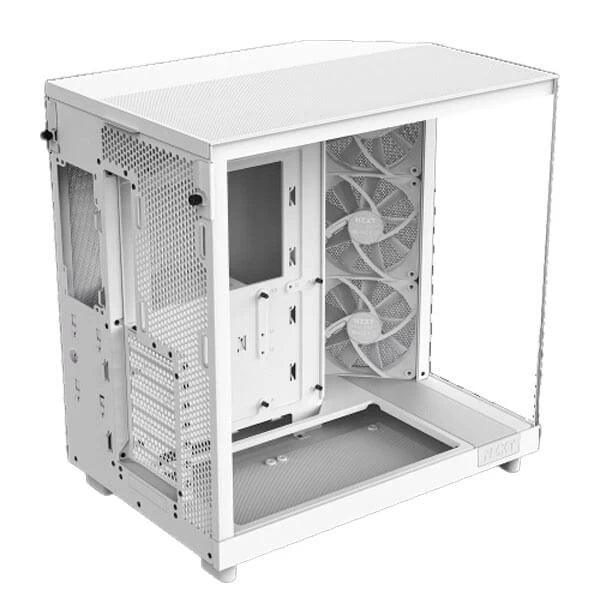

Out-of-the-Box Cooling
3 x 120mm fans are angled for optimal out-of-the-box cooling.
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
Cable Management
Easily manage cables with the wide channels and included straps.

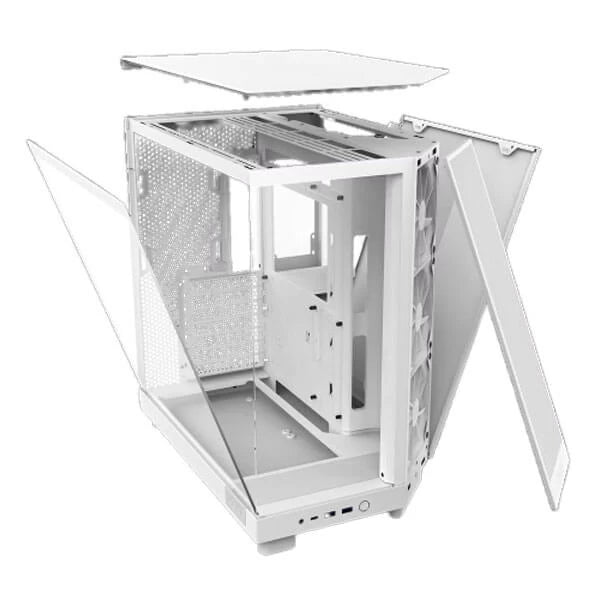

Tool-Free Entry
Access the top and side panels without tools for quick upgrades.
Spacious Support
Up to a 360mm radiator in the top and clearance for a 365mm GPU.
Get the affordable cpu case with fan in the huge variety with us!
Specifications of NZXT H6 Flow ATX Mid Tower Cabinet (White)
Model Number | CC-H61FW-01 |
Key Specs | |
Motherboard Support | ATX, Micro-ATX, Mini-ITX |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only) |
Drive Bays | |
2.5" | 2 |
3.5" | 1 |
Dimensions | |
Height (with feet) | 435 mm / 17.13 in |
Width | 287 mm / 11.3 in |
Depth | 415 mm / 16.34 in |
Weight | 9.4 kg |
Fan Support | |
Front-Right | 3 x 120 mm (3 x F120Q included) |
Top | 3 x 120 mm / 2 x 140 mm |
Bottom | 2 x 140 mm |
Rear | 1 x 120 mm |
Filters | High-Performance Mesh |
Compatibility & Clearance | |
CPU Cooler Height | 163 mm / 6.42 in |
GPU Length | 365 mm / 14.37 in |
PSU Length | 200 mm / 7.87 in |
Cable Management | 91 mm / 3.58 in |
Top Radiator | 30 mm / 1.18 in |
Radiator Support | |
Top | Up to 360 mm |
Rear | Up to 120 mm |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 2 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q Airflow Fan (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static | 1.05 mm - H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
