- NZXT H510i ATX Mid Tower Cabinet With Tempered Glass Side Panel And ARGB LED Strip (White Black)
Description
Features of NZXT H510i (White Black)
Taking it a step up from the H510, the NZXT H510i ATX Cabinet brings even more features to the H Series.
We've made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510 nzxt cpu case
- The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
- Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
- Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
- Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
- *Case version fans and specs vary from retail version
-
Show off your graphic card with a built-in mounting bracket for installing your GPU vertically.
SMARTER (i VERSION ONLY)
The H series features design improvements including a re-designed SSD tray, flush tempered glass mounting and numerous fine
adjustments for a smarter build experience. The new Smart Device V2 includes a faster microprocessor providing NZXT CAM-powered control
of two HUE 2 RGB lighting channels, and three fan channels that support either voltage regulated or PWM fans.
MORE MODERN
With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it's easier than ever to connect smartphones, high-speed external
storage, or the latest peripherals to your PC.
STILL BEAUTIFUL
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
ENJOYABLE BUILDS FOR ALL
Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for
intuitive and easy wiring.

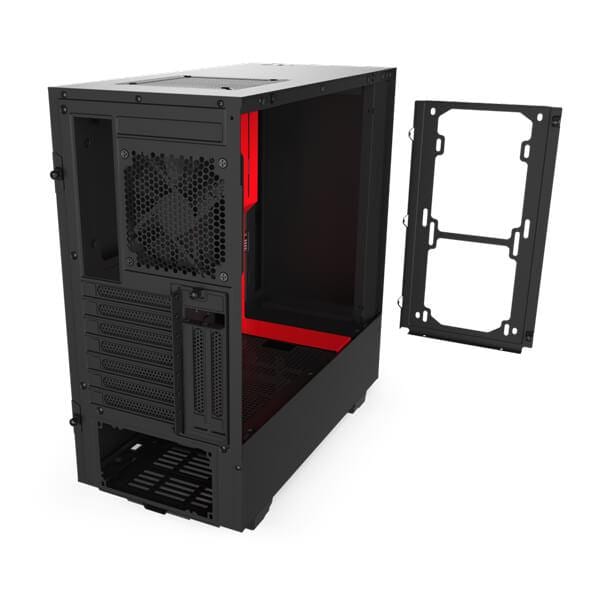

H710 & H510 VERTICAL GPU MOUNT (i VERSION ONLY)
Show off your graphic card. The H710 and H510 comes with mounting for your GPU to be installed vertically.
*PCIe riser card not included.
STREAMLINED COOLING
A front bracket designed for radiators up to 280mm makes installing water-cooling simple. Two Aer F 120mm fans* are included for optimal
internal airflow and the front and PSU intakes include removable filters.
POWERED BY NZXT CAM (i VERSION ONLY)
Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and
fans to create your dream PC.
Get the affordable cpu case with fan with the huge variety with us!
Specifications of NZXT H510i (White Black)
Model Number | CA-H510I-B1 |
Dimensions |
W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
Material(s) | SGCC Steel and Tempered Glass |
Motherboard Support | ATX |
I/O Ports |
Gen 2 USB 3.1 : 1x Type-C Gen 1 USB 3.1 : 1x Type-A 1x Headset Audio Jack Front I/O internal header Gen 2 Internal Header : 1x USB 3.1 Gen 1 Internal Header : 1x USB 3.1 Internal Header : 1x USB 2.0 HD Audio Header : 1x Audio |
Filters | All Air Intakes |
Expansion Slots | 7 |
Smart Device V2 |
3x Fan channels with Max 10W per channel output* 2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans Built-in noise detection module * Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. |
System Requirements |
PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service. |
LED Strips | 2 integrated ARGB LED strip |
Drive Bays |
2.5”: 2 1 3.5”: 2 1 |
Radiator Support |
Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
Fan Support |
Front: 2x 120/ 2x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
Fan Specs |
Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
Clearance |
Cable Management: 19-23mm GPU Clearance: Up to 381mm Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
Warranty | 2 Years |
Note | ***Features, Price and Specifications are subject to change without notice |
