- NZXT H510 (ATX) Mid Tower Cabinet With Tempered Glass Side Panel (Matte White)
Description

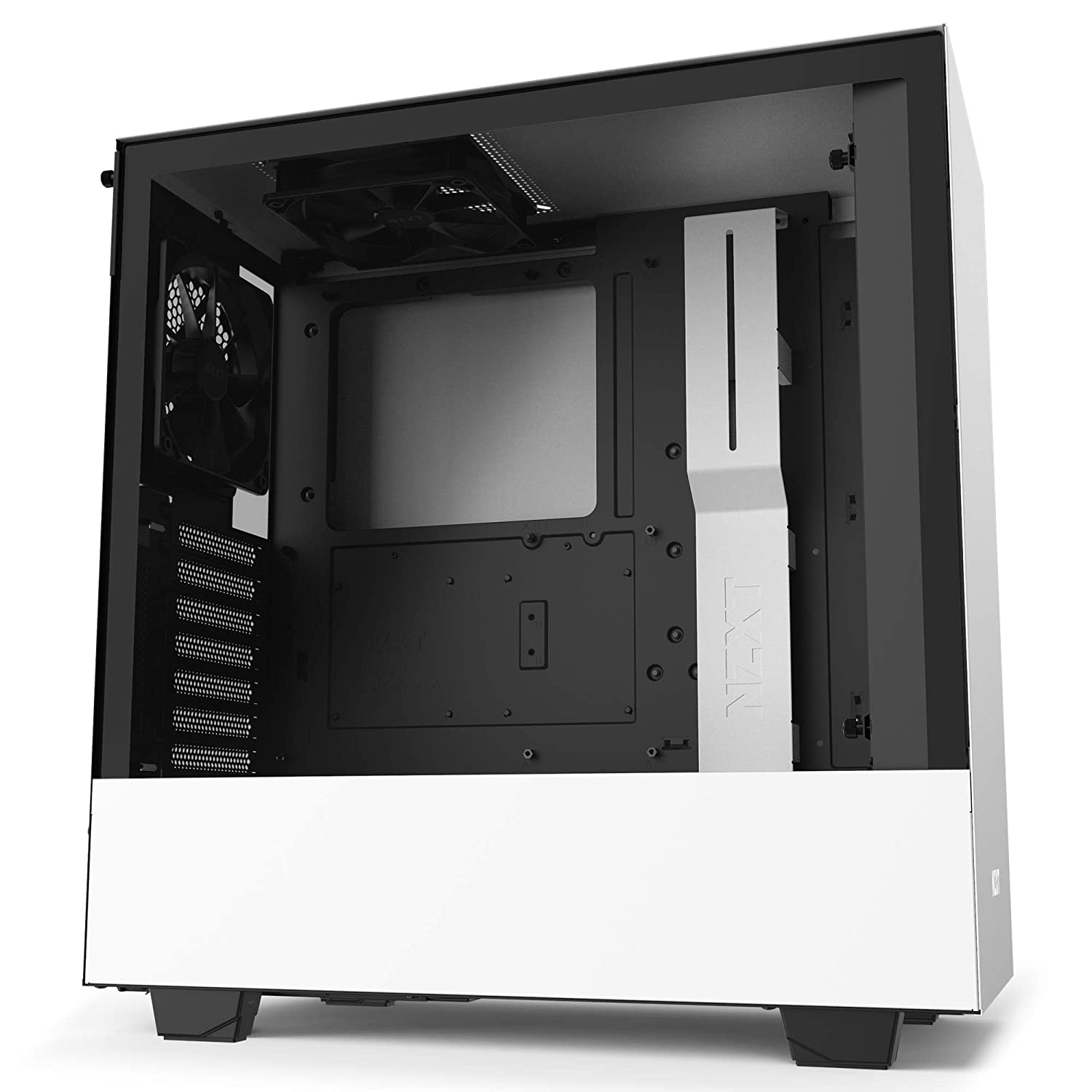

NZXT H510 (ATX) MID-TOWER CABINET WITH TEMPERED GLASS SIDE PANEL (Matte White)
Features:
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC

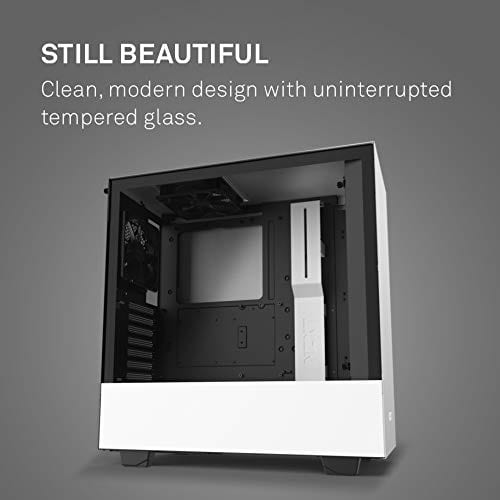

- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.

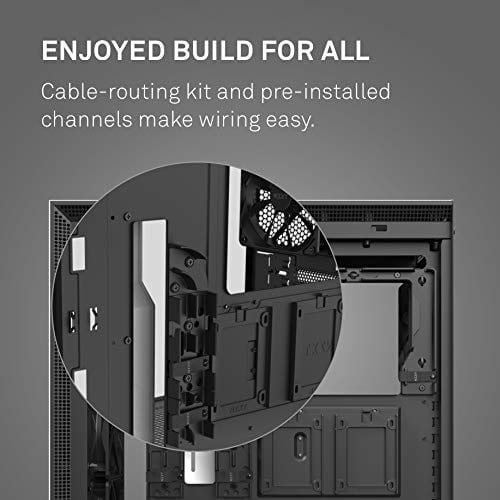

- Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
- Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
Specifications:
| Dimensions |
W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SGCC Steel, Tempered Glass |
| Weight | 6.6 kg |
| Motherboard Support | Mini-ITX, MicroATX, and ATX |
| I/O Ports |
Type-C : 1x USB 3.1 Gen 2 Type-A : 1x USB 3.1 Gen 1 1x Headset audio Jack Front I/O internal header Gen 2 USB 3.1 Internal Header : 1 Gen 1 USB 3.1 Internal Header : 1 1x HD Audio Header |
| Filters | All Air Intakes |
| Included Accessories |
Installation screws 10x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) |
| Drive Bays |
2.5”: 2 1 3.5”: 2 1 |
| Expansion Slots | 7 |
| Radiator Support |
Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
| Fan Support |
Front: 2 x 120/ 2 x 140mm Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included) Rear: 1x 120mm (1 Aer F120 Case Version included) |
| Fan Specs |
Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance |
Cable Management: 19-23mm GPU Clearance: Up to 381mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Note | ***Features, Price and specifications are subject to change without notice. |
