- NZXT H510 Flow Edition Compact ATX Mid Tower Cabinet (Matte White)
Description
Features of NZXT H510 Flow Edition (Matte White)

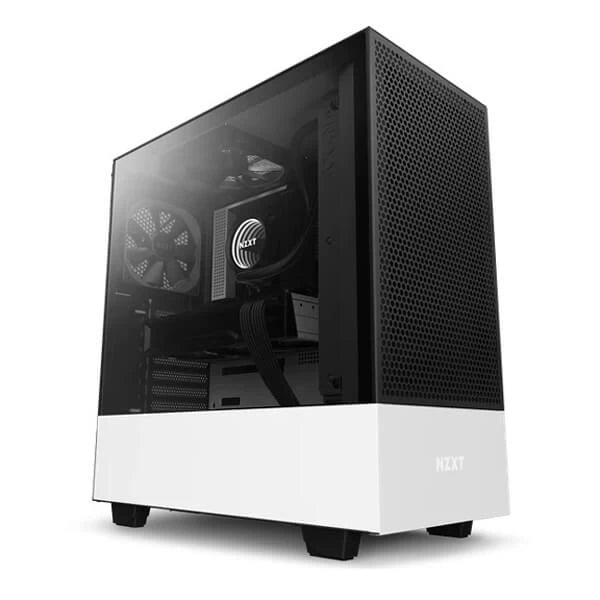

This compact mid-tower is an ideal case for high-performance builds and features a perforated front panel for maximized airflow. The NZXT H510 Flow is easy to build in and offers flexibility for a variety of ATX parts.

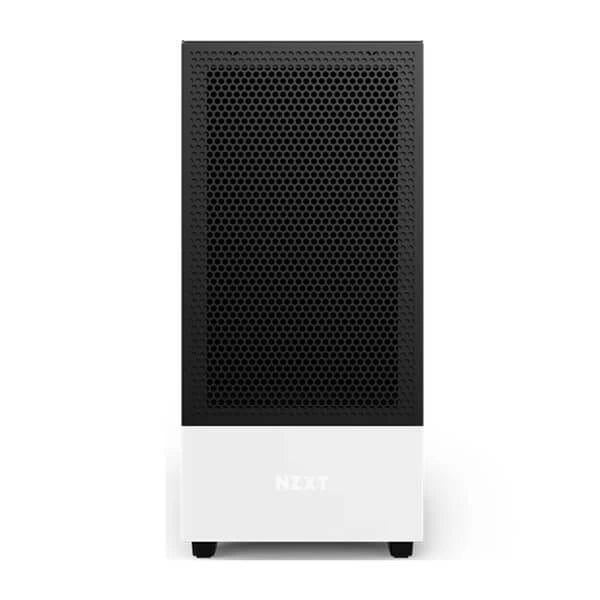

- An optimized perforated top panel delivers increased airflow to your system for improved temperatures

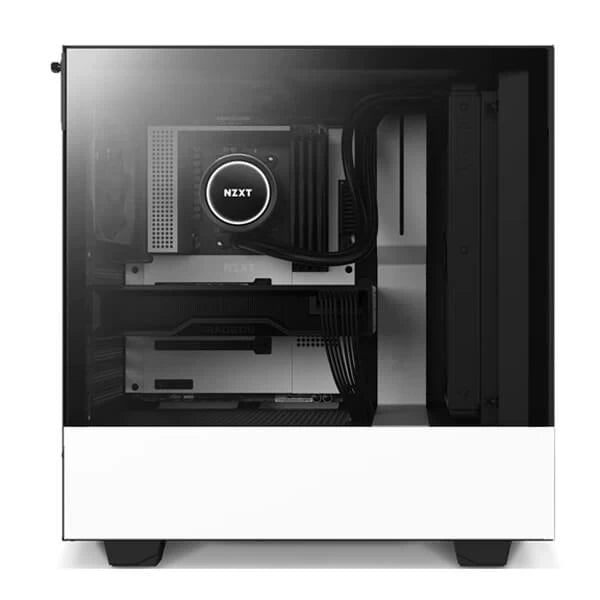

- Iconic cable management bar and uninterrupted tempered-glass side panel

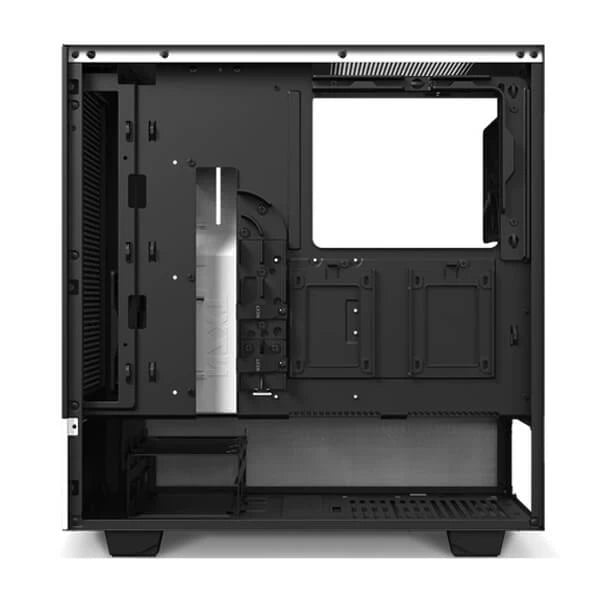

- Cable routing kit with pre-installed channels and straps
- Two Aer F120mm fans and removable filters on all air intakes
- Removable bracket designed for radiators up to 280mm
Specifications of NZXT H510 Flow Edition (Matte White)
Model number | CA-H52FW-01 |
Color | Matte White |
Key Specs |
Motherboard Support: Mini-ITX, MicroATX, ATX Enclosure Type: Compact Mid-Tower Case Material: SGCC Steel, Tempered Glass |
Dimension |
Height: 460 mm / 18.11 inches Width: 210 mm / 8.26 inches Depth: 428 mm / 16.85 inches Weight: 6.6 kg / 14.5 lb |
Front I/O Ports |
USB 3.2 Gen 1 Type-A: 1 USB 3.2 Gen 2 Type-C: 1 Headset Audio Jack: 1 |
Drive Bays |
2.5": 2+1 3.5": 2+1 |
Radiator Support |
Front: 280mm Rear: 120mm |
Included Fans |
Front: 1 x Aer F 120mm (Case Version) Top: - Rear: 1 x Aer F 120mm (Case Version) |
Fan Specs |
Model: Aer F 120mm (Case Version) Speed: 1,200 ± 200RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing Fan Connector: 3-pin |
Fan Support |
Front: 2 x 120mm / 2 x 140mm Top: 1 x 120mm / 1 x 140mm Rear: 1 x 120mm Filters: All air intakes |
Expansion Slots |
Standard: 7 Vertical: 0 |
Compatibility & Clearance |
Max CPU Cooler Clearance: 165mm Max GPU Clearance: 360mm Front Fan & Radiator Clearance: 60mm Cable Management: 19 - 23mm |
Warranty | 2 years |
Note* | Price, feature and specifications are subject to change without notice |
