- NZXT H510 Elite With TG And RGB LED Strip ATX Mid Tower Cabinet (White Black)
Description
Features of NZXT H510 Elite (White Black)

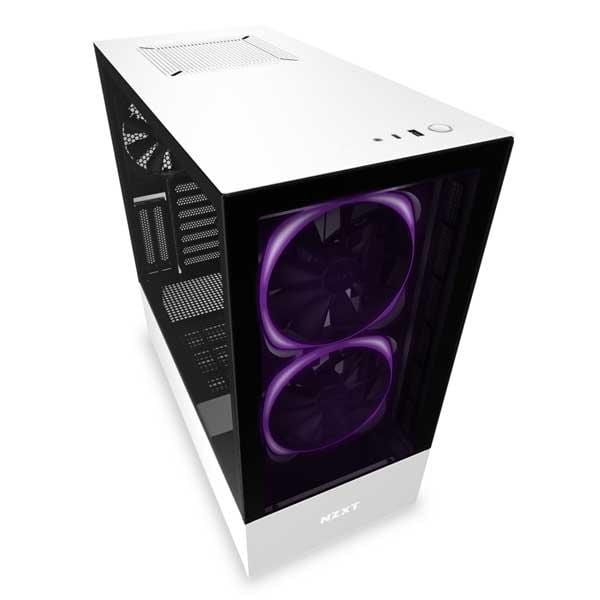

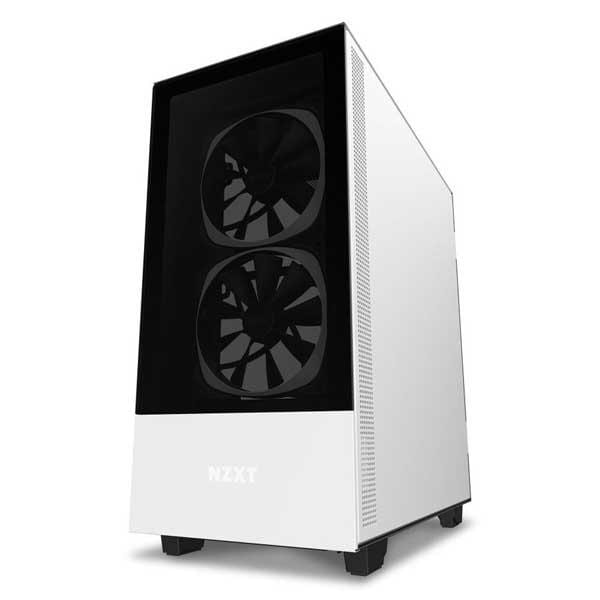

The NZXT H510 Elite compact ATX Cabinet is perfect for your RGB build. Behind the flush-mounted, tempered glass front panel, you’ll discover our renowned Aer RGB 2 fans keeping your components brilliantly cool. Well-engineered airflow, removable radiator mounting bracket, multiple fan filters, vertical GPU mount, a front panel USB-C connector, and an all-steel and tempered glass construction are just some of the key features you’ll get. The nzxt cpu case H510 Elite also includes the NZXT Smart Device V2, powering the built-in RGB light strips and case fans.
- Two tempered glass panels top off your build, perfectly showcasing your RGB build. We’ve included two Aer RGB 2 fans and an RGB LED strip to get you started.

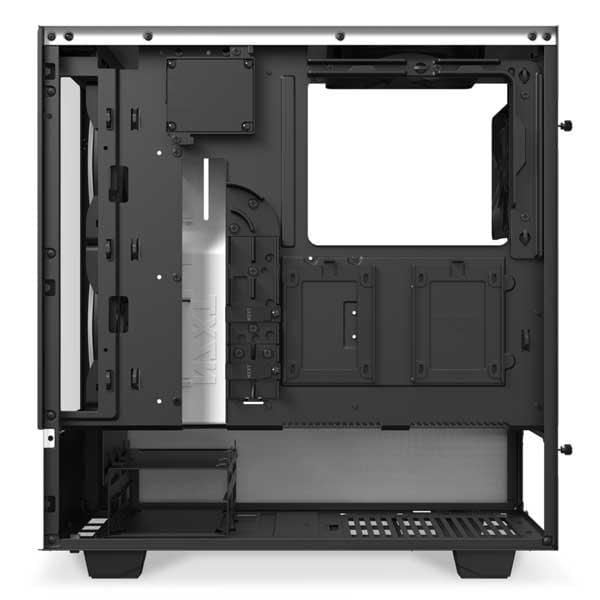

- The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans.
- The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC.
- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build.
- Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
Get the affordable cpu case with fan with the huge variety with us!
Specifications of NZXT H510 Elite (White Black)
| Model Number | CA-H510E-B1 |
| Dimensions |
W: 210mm H: 435mm D: 428mm (without feet) W: 210mm H: 460mm D: 428mm (with feet) |
| Material(s) | SGCC Steel and Tempered Glass |
| Motherboard Support | ATX |
| I/O Ports |
Type-C : 1x USB 3.1 Gen 2 Type-A : 1x USB 3.1 Gen 1 1x Headset Audio Jack |
| Filters | All Air Intakes |
| Expansion Slots | 7 |
| Smart Device |
3x Fan channels with Max 10W per channel output* 2x RGB LED channels, each support up to 4x HUE 2 addressable LED strips or 5x Aer RGB 2 fans Built-in noise detection module *Note : If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port . Do not use low-noise adapters. |
| System Requirements |
PC with open internal USB 2.0 port and Windows® 10 operating system recommended. Internet connection is needed to download CAM. Some CAM features require Internet access, a valid email address and acceptance of our current Terms of Service. |
| LED Strips |
1 integrated ARGB LED strip No additional strips included. |
| Drive Bays |
2.5”: 2 1 3.5”: 2 1 |
| Radiator Support |
Front: 2x 140 or 2x 120mm with Pull Rear: 1x 120mm |
| Fan Support |
Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included) Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included) Rear: 1x 120mm (1x AER F120 Case Version Included) |
| Fan Specs |
Aer RGB 2 (140mm) Speed: 500-1,500 RPM Airflow: 30.39 - 91.19 CFM Noise: 22 - 33 dBA Air Pressure: 0.17 – 1.52mm-H2O Bearing: Fluid Dynamic Bearing Fan Connector 4-Pin PWM |
| Clearance |
Cable Management: 19-23mm GPU Clearance: Up to 368.5mm Vertical GPU Mount Clearance: 40.64mm CPU Cooler: Up to 165mm Front Radiator: 60mm Rear Radiator: 60mm Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel) |
| Warranty | 2 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
