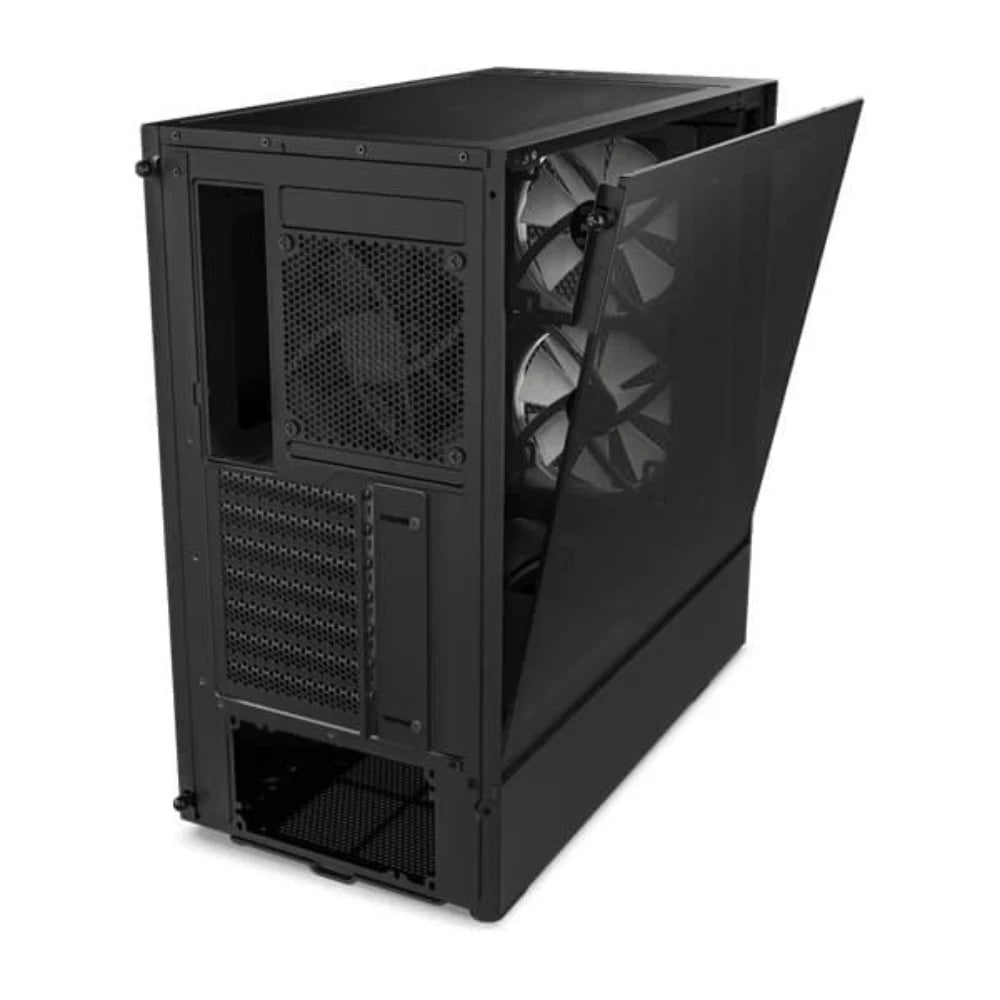

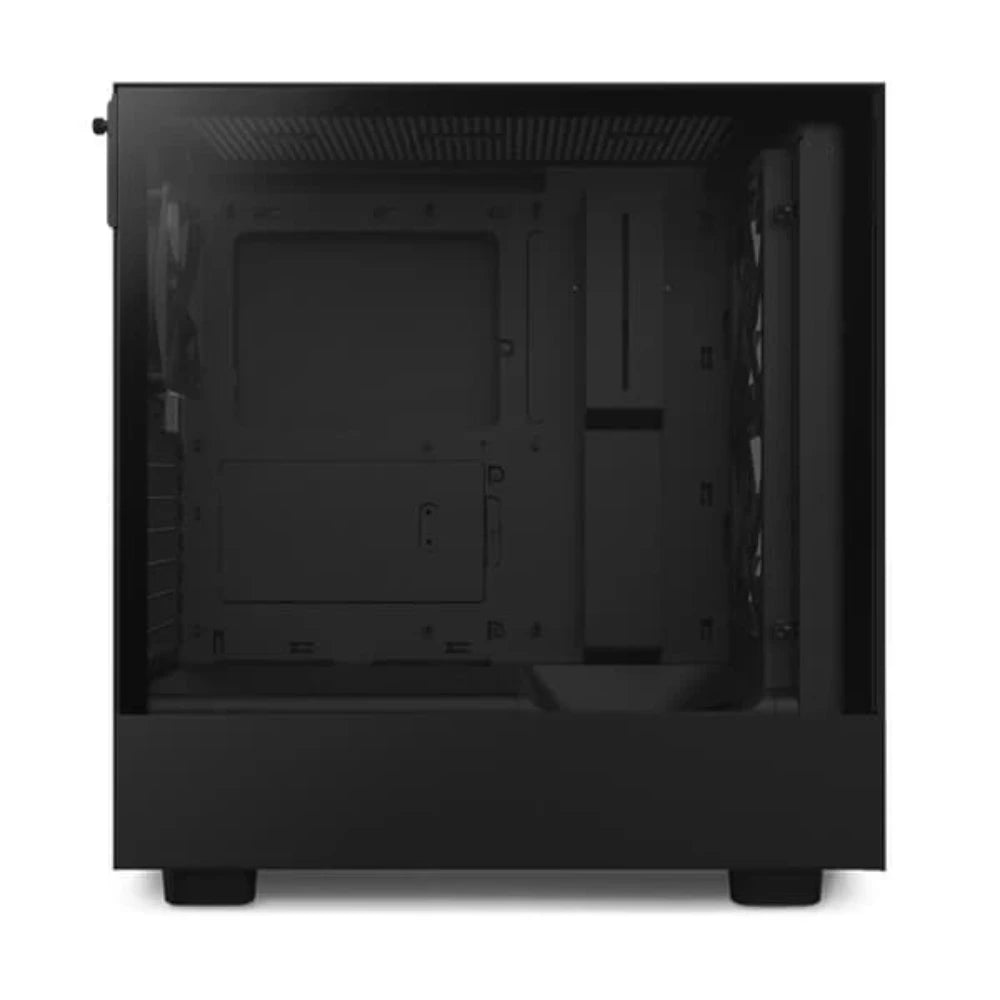

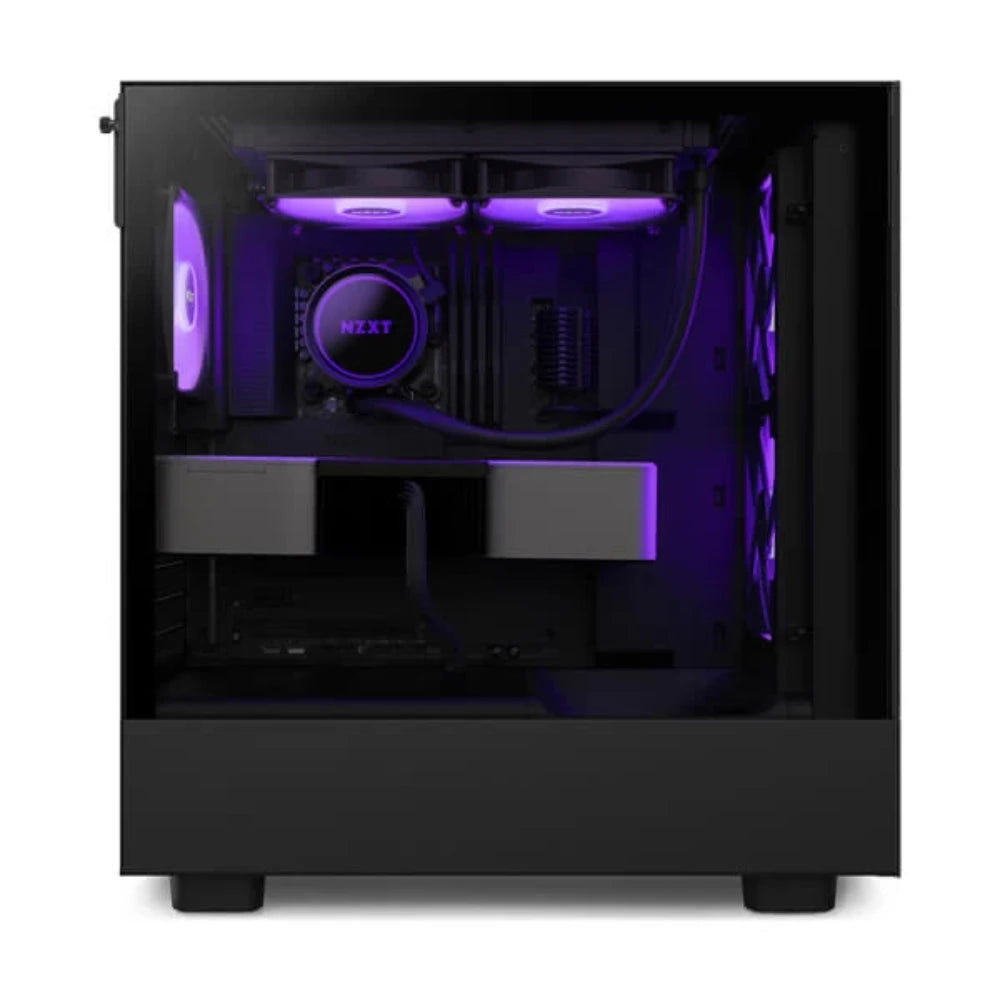

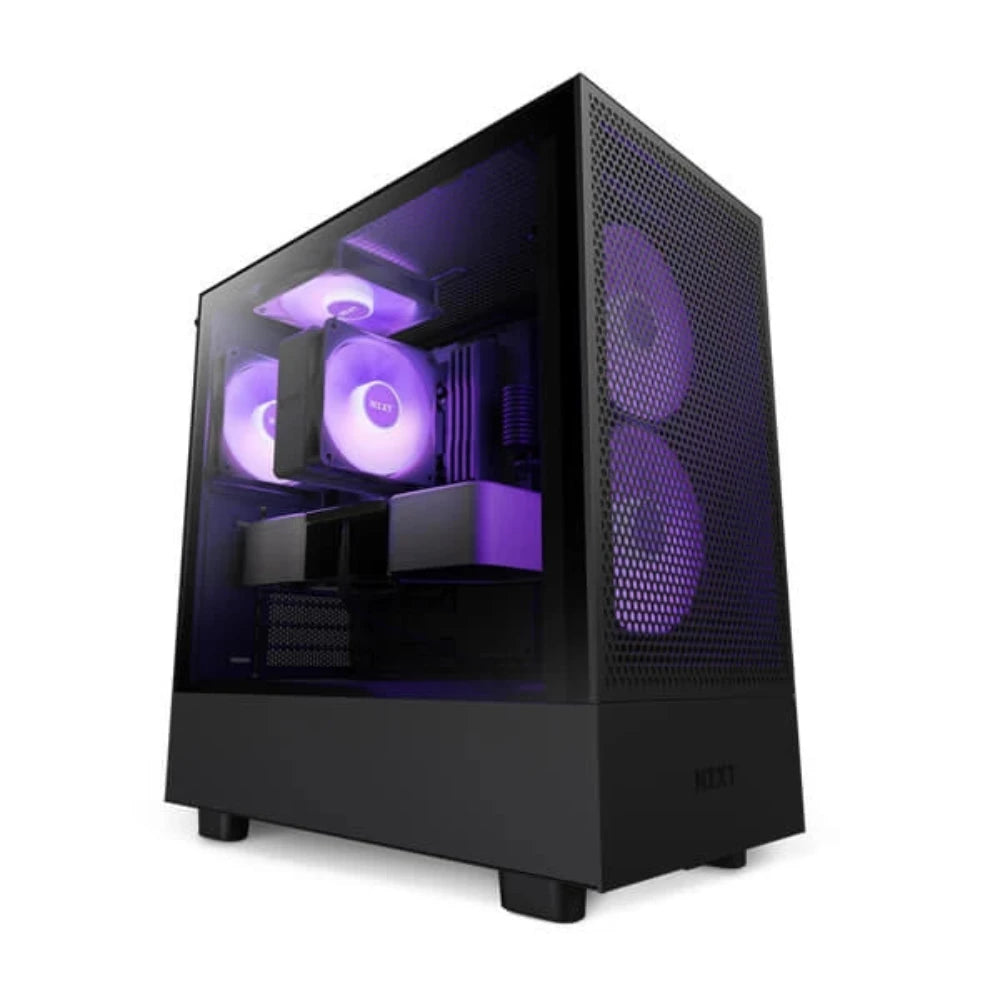

- NZXT H5 Flow RGB ATX Mid Tower Cabinet (Black)
Description
Features of NZXT H5 Flow RGB ATX Mid Tower Cabinet (Black)
The NZXT H5 Flow RGB features two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans so this compact mid-tower stays cooler than cool. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F140 RGB Core fans & two F120Q Quiet Airflow fans
- Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
High Performance AirFlow
Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.
Designed for gaming enthusiasts who wish to show off their components while optimizing airflow, the black NZXT H5 Flow RGB Mid-Tower Case gives builders the best of both worlds while allowing ample customizations for all types of configurations.

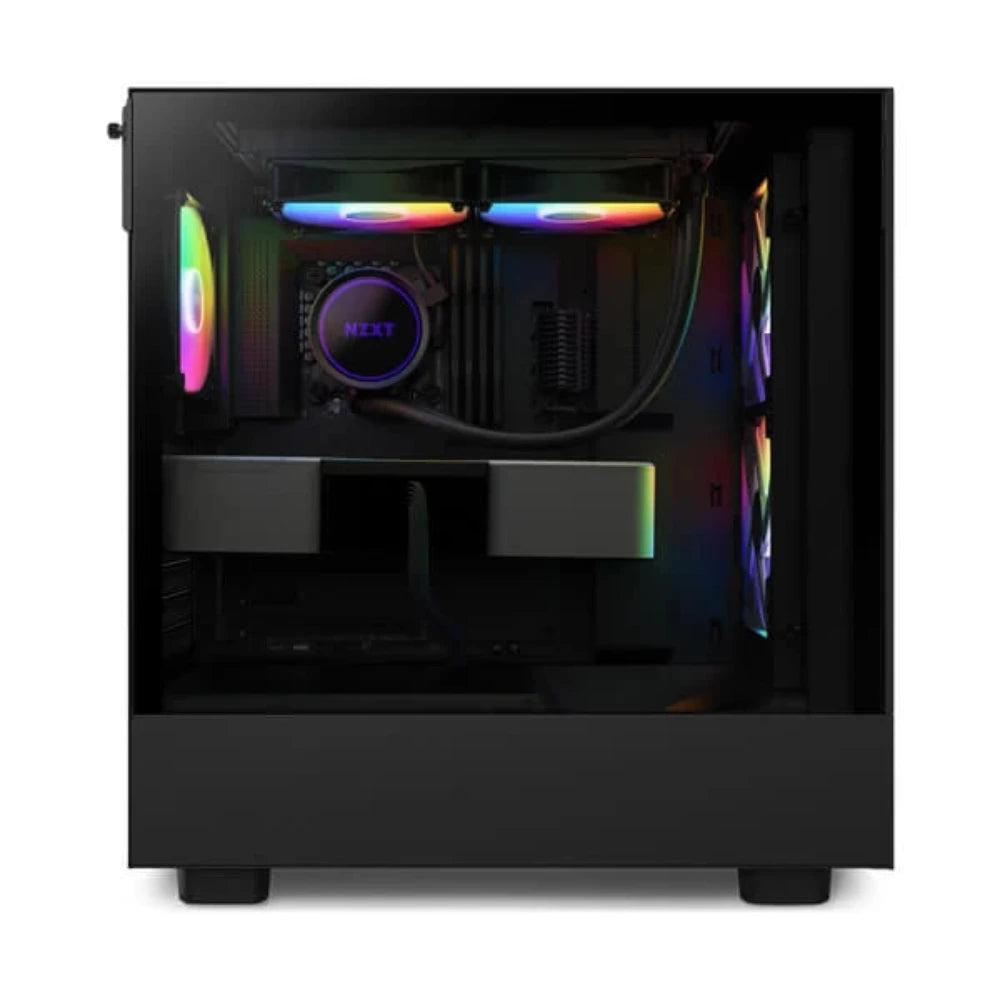

Constructed from SGCC steel, the H5 Flow offers a strong and reliable foundation for your system, allowing you to easily install ATX, Mini-ITX, and Micro-ATX motherboards with ease. A dark tinted tempered glass side panel gives you a picture-perfect view of your build while promoting RGB lighting effects. Liquid cooling support is available, allowing you to install radiators with CPU cooling blocks up to 6.4" in height. With seven full-sized expansion slots, you can install a wide range of graphics cards up to 14.3" long.
Drive Bay Support
Install a wide range of storage drives with support for both 2.5 and 3.5" drives. All drive bays are located behind the motherboard tray, allowing you to install either two 2.5" drives or one 2.5" and one 3.5" drive.
Fan Support
The H5 Flow includes two 120mm F Series Quiet fans that use Fluid-Dynamic Bearings (FDB) to produce up to 78.86 CFM max airflow, keeping your internal components cool.
Radiator Support
Install a wide variety of AiO coolers and custom loops in the H5 Flow. The front of the case can easily handle radiators up to 280mm while the top can support up to 240mm radiators. Additionally, the rear can fit a 120mm radiator.
Connectivity
Located on the top of the H5 Flow is a USB-A 3.2 Gen 1 port along with a single USB-C 3.2 Gen 2 port, giving you up to 5 and 10 Gb/s data transfer speeds, respectively. Additionally, a 3.5mm combo audio jack gives you instant access for various gaming headsets.
Specifications of NZXT H5 Flow RGB ATX Mid Tower Cabinet (Black)
Model Number | CC-H51FB-R1 |
Key Specs | |
Motherboard Support | Mini-ITX, Micro-ATX, ATX |
Enclosure Type | Mid-Tower |
Case Material (Black) | SGCC Steel, Dark Tinted Tempered Glass |
Fan Support | |
Front | 2 x 120mm / 2 x 140mm (2 x F Series RGB Core 140mm (Case Version) included) |
Top | 2 x 120mm |
Rear | 1 x F Series Quiet 120mm (Case Version) included |
Bottom | 1 x F Series Quiet 120mm (Case Version) included |
Filters | All Air Intakes |
Dimensions | |
Height (With Feet) | 464mm |
Height (Without Feet) | 448mm |
Width | 227mm |
Depth | 446mm |
Weight | 7.36 kg |
Radiator Support | |
Front | Up to 280mm |
Top | Up to 240mm |
Rear | Up to 120mm |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 165mm |
Max GPU Clearance | Up to 365mm |
Front Radiator Clearance | 45mm |
Cable Management | Up to 23mm |
PSU Clearance | Up to 185mm |
Fan Specs | |
Model | F140 RGB Core Fan (Case Version) |
Speed | 1200 ± 120 RPM |
Airflow | 61.74 CFM |
Static Pressure | 2.06mm-H2O |
Noise | 29.05 dBA |
Fan Connector | 3-pin |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 1 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q Airflow Fan (Case Version) |
Speed | 1200 ± 120 RPM |
Airflow | 62.18 CFM |
Static Pressure | 1.05 mm-H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Drive Bays | |
2.5" | 1+1 |
3.5" | 1 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
