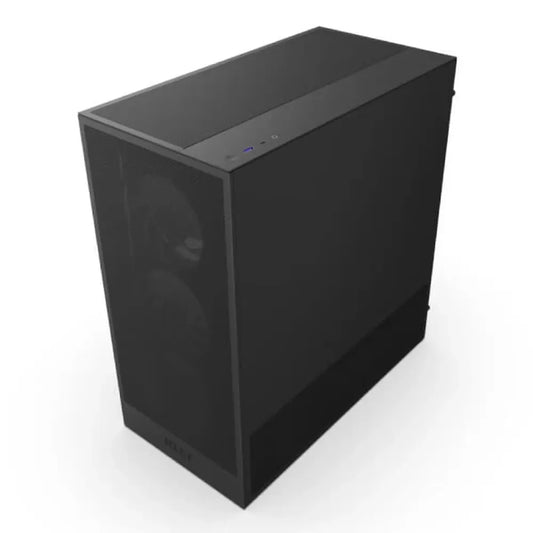

- NZXT H5 Flow RGB 2024 Edition EATX Mid Tower Cabinet (Black)
Description
Feature of NZXT H5 Flow RGB 2024 Edition EATX Mid Tower Cabinet
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow RGB
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
*Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications of NZXT H5 Flow RGB 2024 Edition EATX Mid Tower Cabinet
| Model | H5 Flow RGB |
| P/N | CC-H52FB-R1 |
| Color | Black |
| Key Specs | |
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel,Dark Tinted Tempered Glass (Black) |
| Dimensions | |
| Height (with feet) | 465 mm / 18.31 in |
| Width | 225 mm / 8.86 in |
| Depth | 430 mm / 16.93 in |
| Weight | 7.63 kg / 16.82 lb |
| Compatibility & Clearance | |
| CPU Cooler Height | Up to 170 mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 28.7 mm |
| Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 55 mm |
| Front Ports | |
| USB 3.2 Type-A | 1 |
| USB 3.2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 2 |
| 3.5" | 1 |
| Fan Support | |
| Front | 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) |
| Top | 2 x 120 mm / 2 x 140 mm |
| Bottom | 2 x 120 mm |
| Rear | 1 x 120 mm (1 x F120Q Case Version included) |
| Radiator Support | |
| Front | Up to 360 mm |
| Top | Up to 240 mm (280mm with low-profile memory only) |
| Fan Specs | |
| Model | F360 RGB Core (Case Version) |
| Speed | 1,700 ± 200 RPM |
| Airflow | 50.1 CFM |
| Static | 1.27 mm-H₂O |
| Noise | 23.3 dBA |
| Fan Connector | 3-pin |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static | 1.05 mm-H₂O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
| Warranty | 2 Years |
| Note |
*** Images are for Representation purposes only *** Features, Price, Specifications are subject to change without notice. |
