- NZXT H5 Flow ATX Mid Tower Cabinet (White)
Description
Features of NZXT H5 Flow ATX Mid Tower Cabinet (White)
The H5 Flow ATX Cabinet features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.

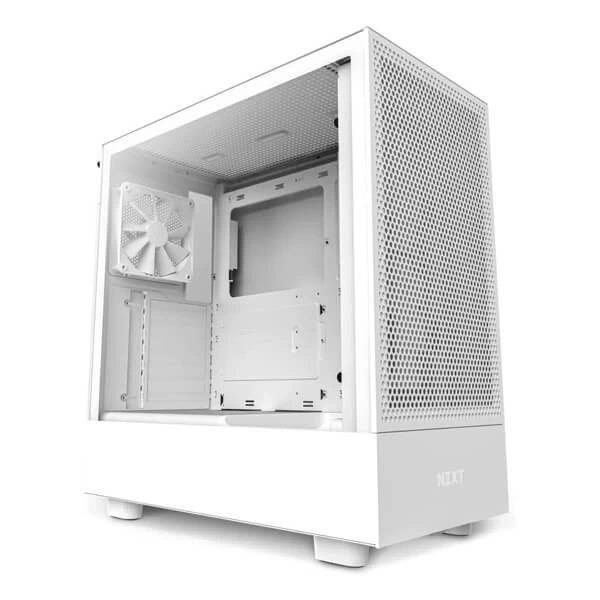

- Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation

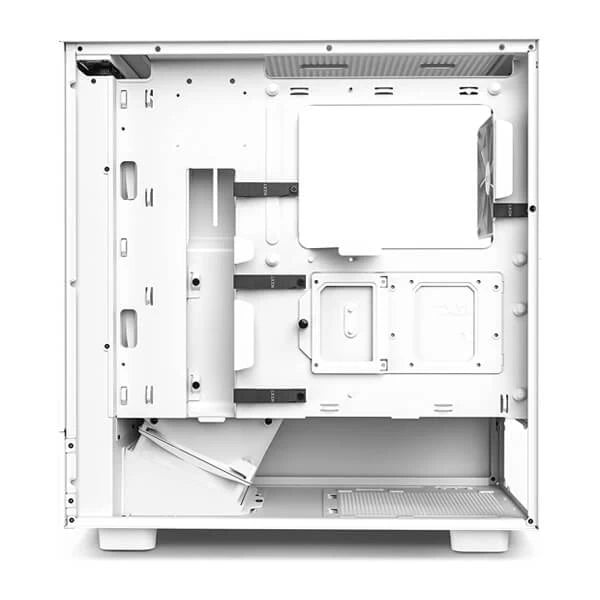

- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F120Q fans
Fan Capacity
nzxt cpu case fans mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
High Performance AirFlow
Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.
Spacious Cooling Support
Up to 280mm radiator support in the front, 240mm top and 120mm in the rear. Fits up to 6 fans including the dedicated GPU fan.
Dedicated GPU Fan
An angled 120mm fan draws air from below the case to provide direct cooling for your power-hungry graphics card.
Get the affordable cpu case with fan with the huge variety with us!
Specifications of NZXT H5 Flow ATX Mid Tower Cabinet (White)
Key Specs | |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Tempered Glass |
Dimensions | |
Height | 464mm (With Feet) |
Width | 227mm |
Depth | 446mm |
Weight | 7.01 kg |
Drive Bays | |
2.5" | 1+1 |
3.5" | 1 |
Fan Support | |
Front | 2 x 120mm / 2 x 140mm |
Top | 2 x 120mm |
Rear | 1 x F Series Quiet 120mm (Case Version) included |
Bottom | 1 x F Series Quiet 120mm (Case Version) included |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 165mm |
Max GPU Clearance | Up to 365mm |
Front Radiator Clearance | 45mm |
Cable Management | Up to 23mm |
Radiator Support | |
Front | Up to 280mm |
Top | Up to 240mm |
Rear | Up to 120mm |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 1 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static | 1.05 mm - H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Warranty | 2 Years |
Note |
*** Features, Price, Specifications are subject to change without notice.
|
Reviews ( 0 )
Frequently asked questions
1. Which NZXT H5 is best?
What is the best NZXT H5 depends on the requirements of your system. This NZXT H5 Flow has been made to ensure optimal airflow. It has an open front panel with perforations and an exclusive fan to provide GPU cooling. In contrast, the NZXT H5 Elite, on the other hand, is focused on design with a front panel made of tempered glass as well as RGB lighting. If you're looking to improve cooling performance the H5 Flow is typically regarded as the better option. If you're looking for an aesthetically appealing build then H5 Elite H5 Elite might be a better choice. Think about your cooling needs as opposed to aesthetics.
2. What is the price of NZXT H5 Flow?
The price of the NZXT H5 Flow is based on the seller and the region. At EliteHubs, you can buy it for around Rs. 7000, which is fairly affordable. Prices may vary, so check with retailers to get the most up-to-date pricing.
3. Does NZXT H5 Flow have good airflow?
Yes that's right, this NZXT H5 Flow has been built with the best airflow in the back of your mind. Its perforated front panels allow an unrestricted air flow as well as an angled fan that is designed for cooling its GPU directly. This design greatly enhances thermal efficiency when compared to cases that have rigid fronts. The location of the fans as well as the overall structure of the case have been designed to increase the flow of air. This case is highly recommended for its cooling capacities.
4. Is the NZXT H5 Flow a good case?
The NZXT H5 Flow is widely regarded as a great case, specifically for those who value the flow of air and the ease of building. Its easy-to-use design, plenty of space for managing cables and efficient cooling makes it a well-loved choice for builders of PCs. Quality of construction is excellent and its clean minimalist design is appealing to a wide range of. The reviews frequently praise its thermal efficiency and its ease of use. If you're looking for an enclosure that is simple to construct and helps keep your electronics cool it is an excellent option.
5. Is this NZXT H5 Flow have fans?
Yes, the NZXT H5 Flow usually comes with two fans pre-installed. One fan is 120mm located at the bottom of the case that is angled to an airflow direct towards the GPU. The other is a 120mm one that is located in the back to provide exhaust. The fan configuration may differ in accordance with regional versions or bundles offered by retailers therefore it is recommended to verify the specifications of the retailer.
6. How to remove NZXT H5 Flow front panel?
Removal of the NZXT H5 Front Panel of the Flow is typically an untool-based process. In most cases, you can grab the panel's bottom and then pull it outwards. It is fitted with retention clips therefore a gentle, but firm pull is needed. Don't pull too much force. Make sure the cables remain free of the panel prior to removal. Attaching the panel back to it's similarly easy. Just place the clips in the slots that correspond to them on the case and then push the panel back until it snaps.
7. Are NZXT H5 fans quiet?
The sound level of NZXT fans may vary based on the model used and speed. In general, NZXT fans are designed to be able to manage noise and performance levels. A majority of their fans are renowned for their quiet operation, particularly when operating at low RPMs. However, when they are running at higher speeds and under the load of a heavy load, they may be audible. The level of noise also depends on the airflow of the case and the overall configuration of the system.
8. What is the GPU length of NZXT H5 Flow?
The NZXT H5 Flow can support GPUs that have lengths up to 360mm. This space can accommodate the installation of the majority of top-of-the-line graphics cards that are currently available. But, make sure to double-check the exact dimension of the GPU and ensure that they match the specifications of the case. It is also crucial to note that front-mounted radiators can limit the permitted GPU length.
