- NZXT H5 Flow ATX Mid Tower Cabinet (Black)
Description
Features of NZXT H5 Flow ATX Mid Tower Cabinet (Black)

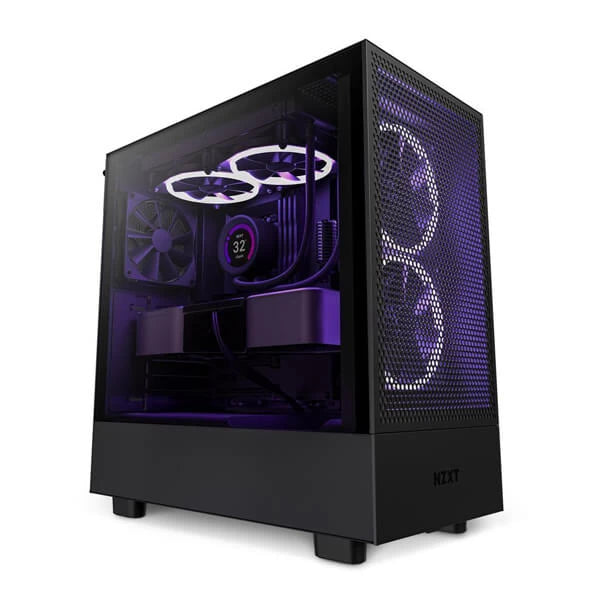

The NZXT H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow ATX Cabinet is an ideal chassis for most builds.
- NZXT H5 Flow has Dedicated fan on bottom inside panel is angled to cool GPU
- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F120Q fans
Fan Capacity
nzxt cpu case fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
High Performance AirFlow

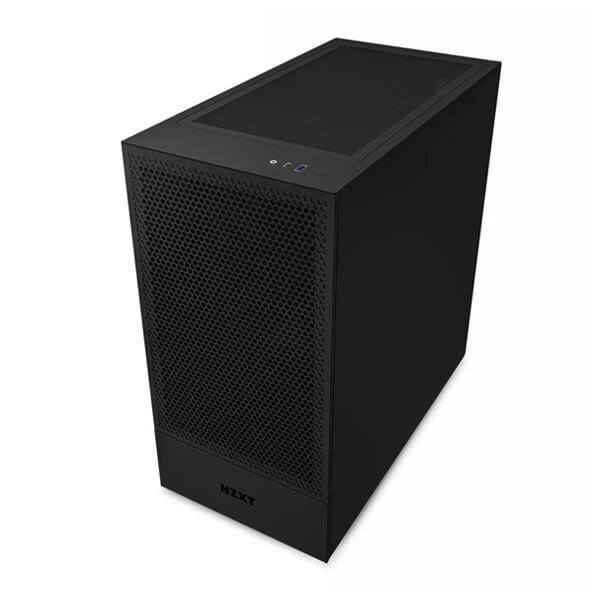

Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.
Get the affordable cpu case with fan in the huge variety with us!
Specifications of NZXT H5 Flow ATX Mid Tower Cabinet (Black)
Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Tempered Glass |
Dimensions | |
Height | 464mm (With Feet) |
Width | 227mm |
Depth | 446mm |
Weight | 7.01 kg |
Drive Bays | |
2.5" | 1+1 |
3.5" | 1 |
Fan Support | |
Front | 2 x 120mm / 2 x 140mm |
Top | 2 x 120mm |
Rear | 1 x F Series Quiet 120mm (Case Version) included |
Bottom | 1 x F Series Quiet 120mm (Case Version) included |
Compatibility & Clearance | |
Max CPU Cooler Clearance | Up to 165mm |
Max GPU Clearance | Up to 365mm |
Front Radiator Clearance | 45mm |
Cable Management | Up to 23mm |
Radiator Support | |
Front | Up to 280mm |
Top | Up to 240mm |
Rear | Up to 120mm |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 1 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Fan Specs | |
Model | F120Q (Case Version) |
Speed | 1200 ± 240RPM |
Airflow | 62.18 CFM |
Static | 1.05 mm - H2O |
Noise | 25.1 dBA |
Fan Connector | 3-pin |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Warranty | 2 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
