- NZXT H1 Version 2 ITX Mini Tower Cabinet ( Matte Black )
Description
Features of NZXT H1 Version 2
The H1 allows you to get the most out of a small package. Pre-routed cables, a 750W PSU, support for the latest GPUs, and PCIe Gen 4 make the build powerful and simple.
- 140mm AIO liquid cooling
- nzxt cpu case CAM enabled fan controller
- SFX 750W Gold PSU included
- Chassis size accommodates latest NVIDIA 30 series & AMD 6000 series graphics cards
- Pre-routed cables and downward-facing motherboard I/O for a clean, simplified appearance.
- PCIe 4.0 Extender supporting maximum 25Gbps high-speed transmission
POWERFULLY SMALL

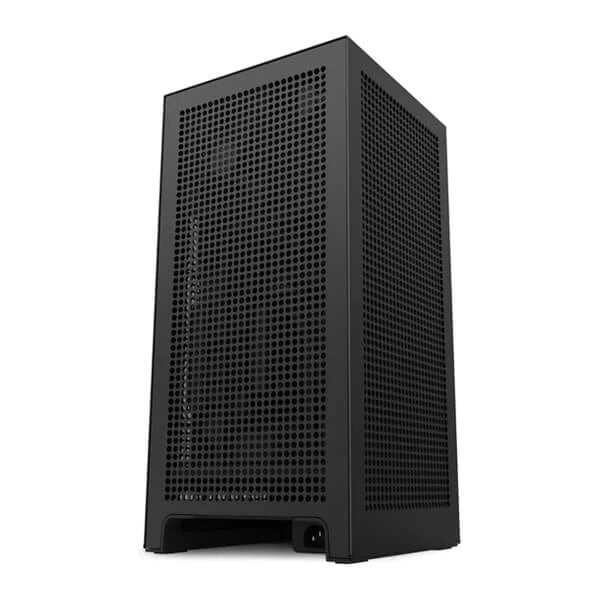

The compact vertical design of NZXT H1 VERSION 2 mini pc cabinet provides a small footprint while maintaining support for most full-sized GPUs on the market.
A SIMPLE BUILD
The tool less SSD tray and riser card are incredibly simple to install. In addition to pre-routed cables, the motherboard I/O faces down, routing all cables through the bottom of the case.
INTEGRATED COMPONENTS

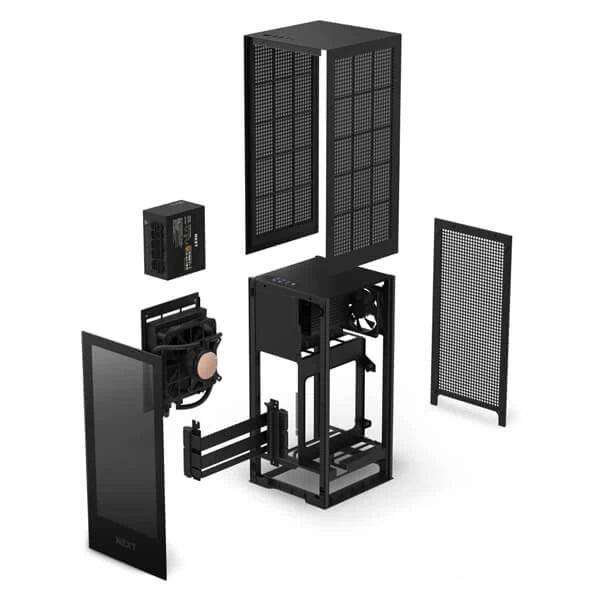

Integrated power supply and AIO liquid cooler provide a better build experience, along with pre-routed cables. An integrated PCIe Riser card is also included for vertical GPU mounting.
ELEGANT AIRFLOW
The NZXT H1 VERSION 2 MINI-ITX dual-chamber airflow is thermally designed to allow the CPU, GPU, and PSU to pull in fresh air, and exhaust hot air without affecting temperatures of neighbouring components.
VERSION 2 EXCLUSIVE
The increased chassis size provides support for larger GPUs. Other upgrades include upgraded PSU wattage, an added fan controller, and an PCIe Gen4 Riser.
Specifications of NZXT H1 Version 2
Motherboard Support | Mini-ITX |
Case Material | SGCC Steel, Tempered Glass |
Dimensions | |
Height | 405 mm / 15.9 inches |
Width | 196 mm / 7.7 inches |
Depth | 196 mm / 7.7 inches |
Weight | 7.6 kg / 16.7 lb |
Fan Specs | |
Quantity | 1 (RF-92RC1-B1) |
Speed | 600 - 1800 ± 200 RPM |
Airflow | 28.64 CFM |
Static Pressure | 1.1 mm-H₂O |
Noise | 23 dBA |
Fan Connector | 4-pin |
Model Number | CS-H11BB |
Compatibility & Clearance | |
Max GPU Clearance | 324mm |
Max GPU Thickness | 58mm |
Memory Height | 46mm |
Power Supply Specs | |
Form Factor | SFX (PS-7G1B) |
Modular | Full |
Wattage | 750W |
Compliance Standard | Complies with SFX12V v3.42 ATX12V v2.52 & EPS12V v2.92 |
Energy Efficiency | 80 Plus Gold |
Fan | 92mm FDB Silent Fan |
MTBF | 100,000 hours at 25°C. excluding the DC Fan |
Protection | OPP, OVP, UVP, OCP, OTP, SCP |
Front I/O Ports | |
USB 3.2 Gen 1 Type-A | 2 |
USB 3.2 Gen 2 Type-C | 1 |
Headset Audio Jack | 1 |
Expansion Slots | |
Standard | 2 |
Drive Bays | |
2.5" | 2 |
3.5" | - |
PCIe Extender Cable | |
Form Factor | X16 |
Compatibility | PCIe 4.0 Compatible |
Cable Length | 330 ± 5 mm |
Compatible Socket & CPU | |
Intel | Socket LGA 1700, 1200/115X |
AMD | AMD Socket AM4 |
Radiator | |
Dimensions | 139 x 174 x 28 mm |
Material | Aluminum |
Pump | |
Dimensions (D x H) | 65 x 26 mm |
Motor Speed | 4200 ± 10%RPM |
Power | 12V DC, 0.35A |
Fan Controller | |
Channel | 2 |
Controller Method | PWM |
Input | 12V DC |
Output | 12V DC |
Fan Specs | |
Quantity | 1 (Aer P140mm PWM fan) |
Speed | 500 - 1,800 ± 300RPM |
Airflow | 27.27 - 98.17 CFM |
Static Pressure | 0.21 - 2.71 mm-H₂O |
Noise | 21 - 38 dBA |
Fan Connector | 4-pin |
Warranty | 3 Years on case, riser card, and AIO 10 Years on PSU |
Note | *** Features, Price, Specifications are subject to change without notice. |
