Description
Features Of NZXT C550 550W 80+ Bronze Semi Modular
The C550 brings 550W Power Supply of reliable power to your battlestation and is ideal for users who require less power for their builds. The C550 brings 550 watts of reliable power to your battle station
Overview :

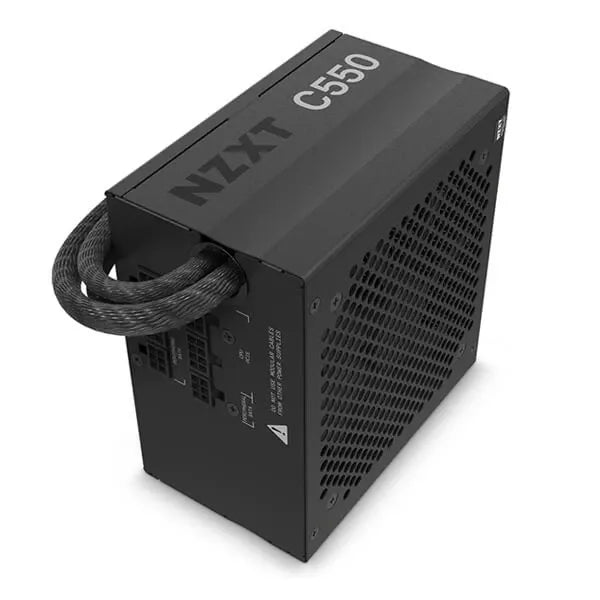

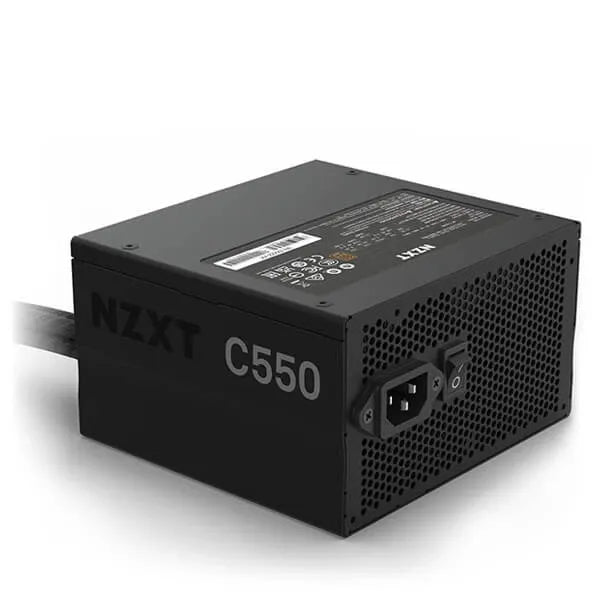

Power your creative, productive, and entertainment experiences by including the NZXT C550 550W 80 PLUS Bronze Semi-Modular ATX Power Supply in your computer build. Designed primarily for relatively low power systems, this standard semi-modular ATX power supply delivers up to 550W across one +12V rail with a power 80 PLUS Bronze energy efficiency rating of up to 83% at full load. The built-in 120mm, 1200 rpm fluid-dynamic fan helps to maintain optimal temperatures under intense workloads.
80 PLUS Bronze
This NZXT Power Supply features 80 PLUS Bronze certification and is rated to deliver up to 83% energy efficiency rating at 100% load.
Device Support
Cables are included to power up to four PCIe devices, six SATA drives, and three 4-pin peripherals such as fans.
Get the best 80 Plus Bronze computer smps price from us today!
Specifications Of NZXT C550 550W 80+ Bronze Semi Modular
KEY SPECS | |
Dimensions | W 150mm x L 140mm x H 86mm |
Material(s) | Steel, PCB and plastic |
Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
AC Input Rating | 100V-240V 8A-4A 50Hz-60Hz |
GENERAL | |
Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / |
Hazardous Materials | RoHS & China RoHS |
DC OUTPUT RATING | |
Voltage | 3.3V / +5V / +5VSB /+12V / -12V |
Max Load | 20A / 20A / 2.5A / 45.5A / 0.3A |
Voltage Regulation | ±5% / ±5% / ±5% / ±5% / ±10% |
Ripple & Noise | < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p |
Output Power (watt) | 110 / 110 / 12.5 / 546 / 3.6 |
Total | 550 |

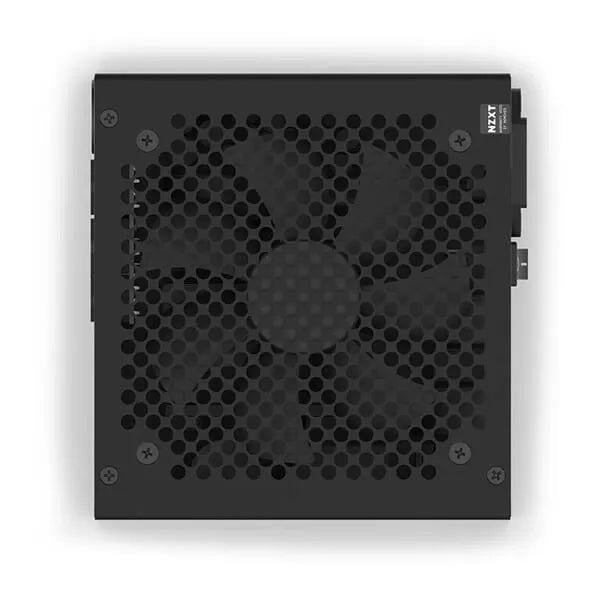

FAN SPECS | |
Dimensions | 120 x 120 x 25 (mm) |
Speed | 2400 ±10% RPM |
Airflow | 72.90 CFM |
Noise | <44 dBA |
Bearing | FDB (Fluid Dynamic Bearing) |
ENERGY EFFICIENCY | |
Rating | 80 Plus Bronze |
10% loading | 82% |
20% loading | 83% |
50% loading | 87% |
100% loading | 83% |
OPERATION | |
PF Correction | Active@0.96 |
MTBF | 100,000 hours |
Operation Temperature | 0 to 40°C |

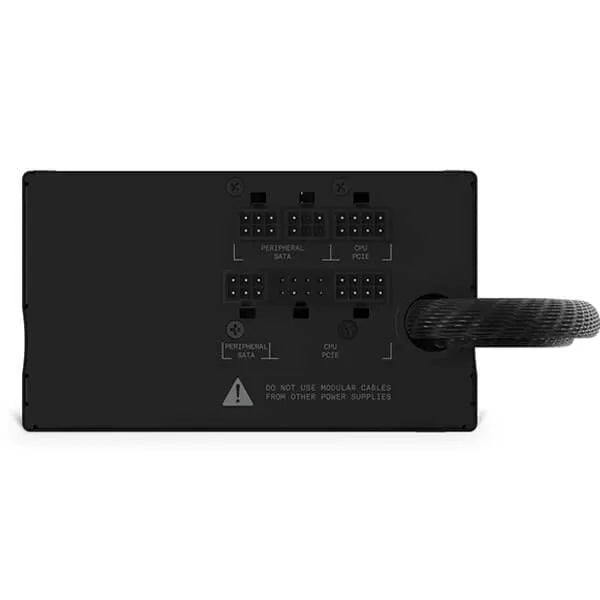

OUTPUT CONNECTOR(S) | |
24-pin ATX Power | 1 |
4+4-pin CPU power | 2 |
6+2-pin PCIe power | 4 |
SATA Power | 6 |
Peripherals | 3 |
Warranty | 5 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
