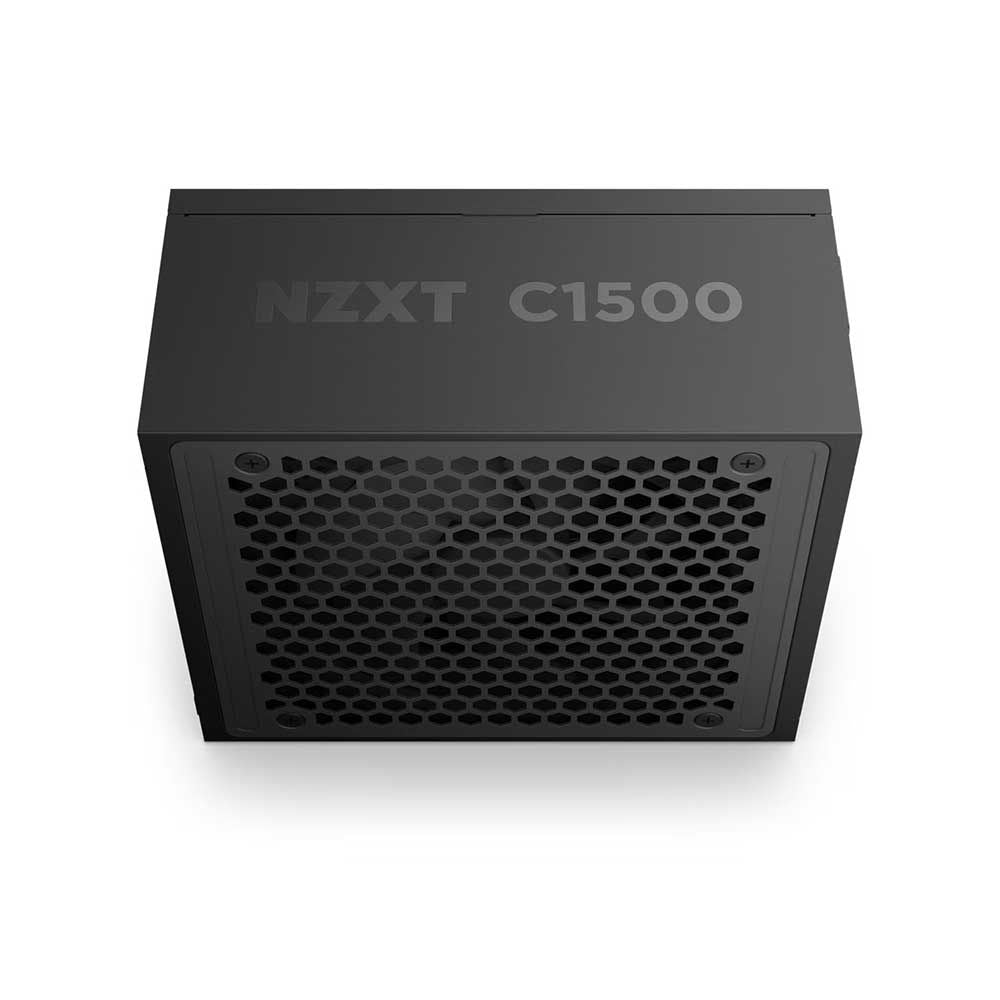

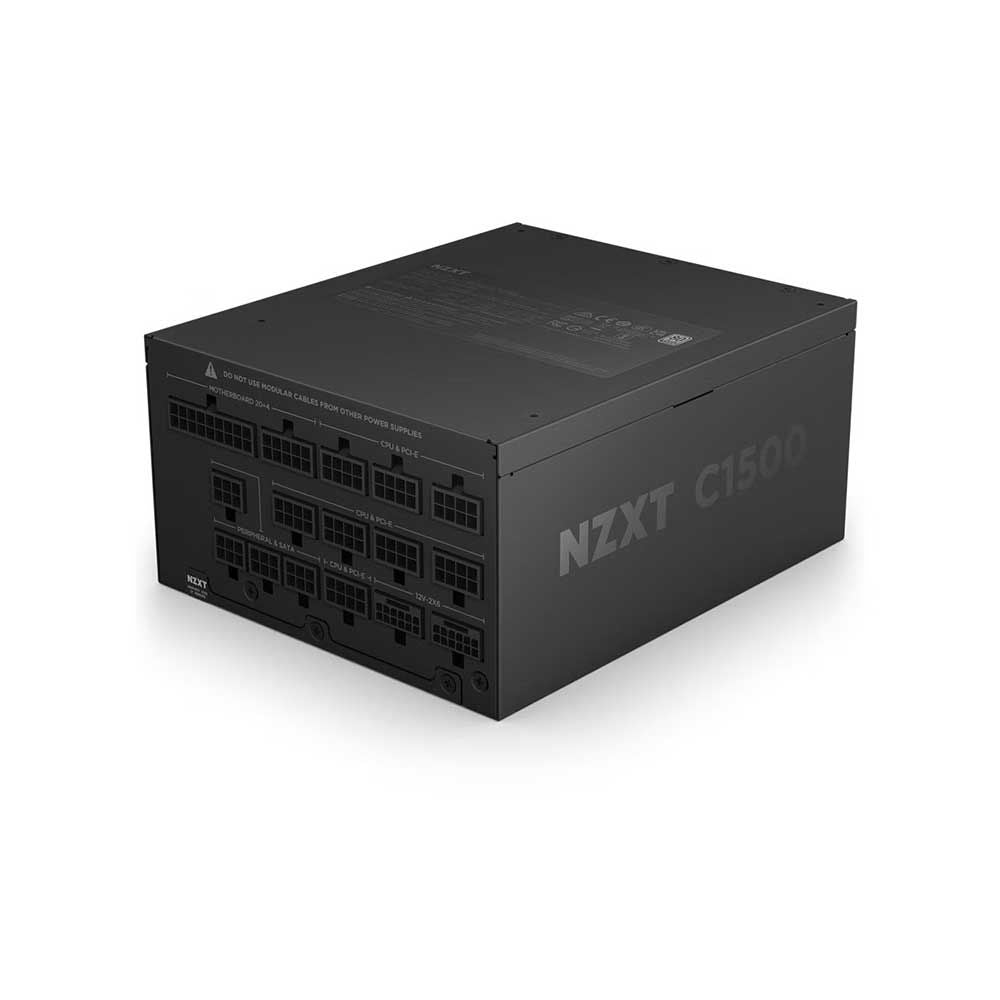

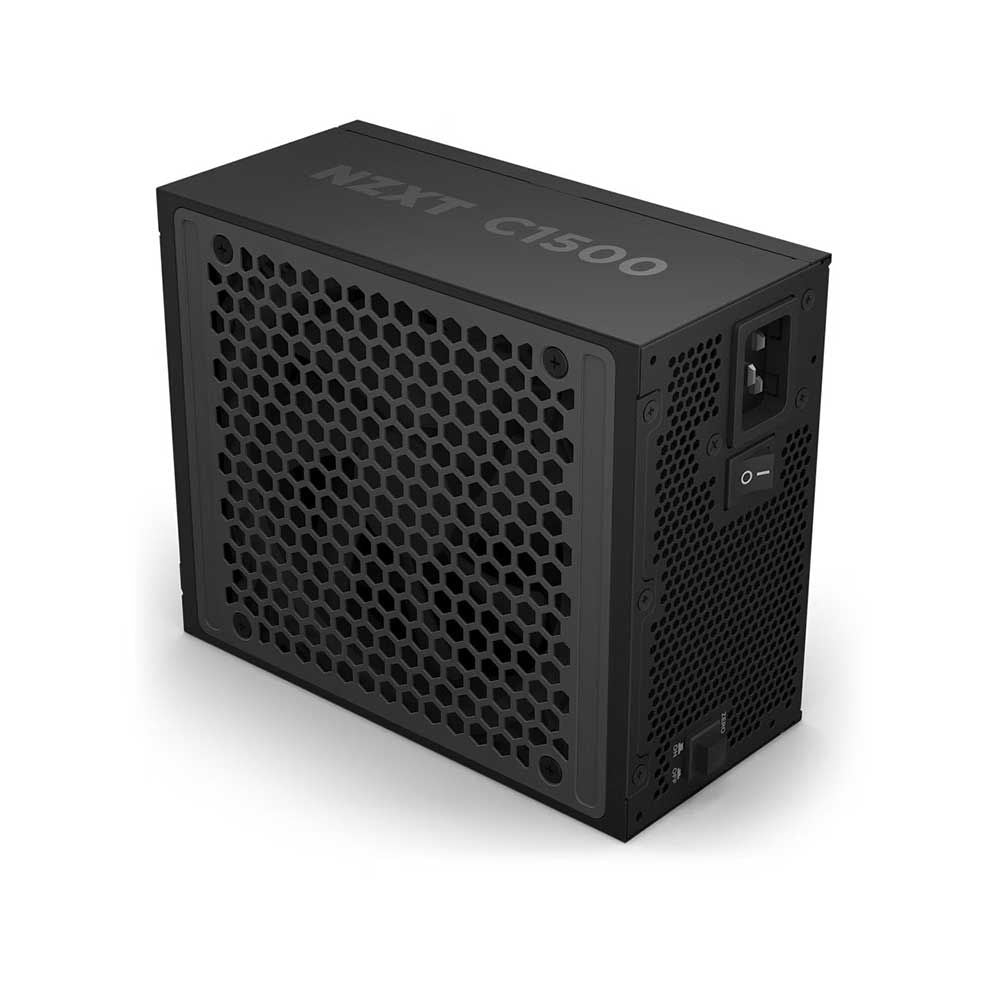

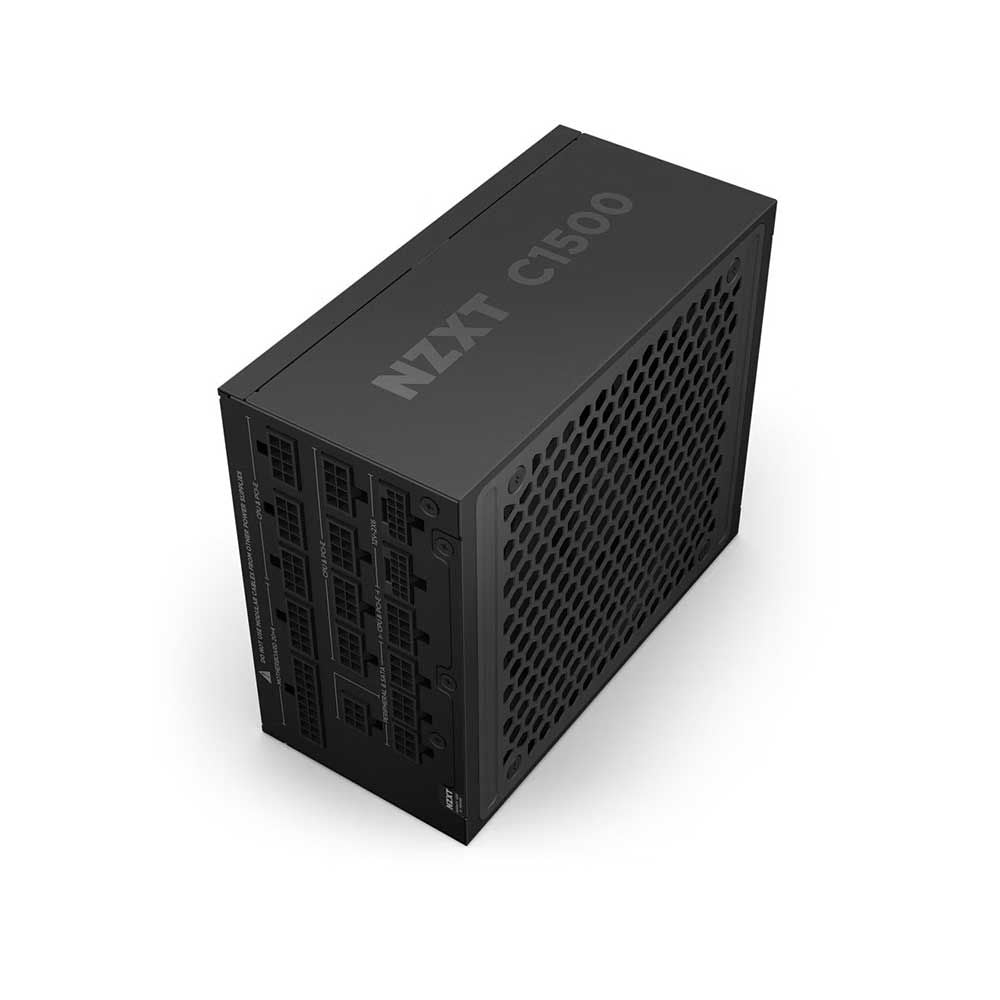

- NZXT C1500 1500W 80+ Platinum Fully Modular ATX 3.1 Power Supply
Description
Features of NZXT C1500 1500W 80+ Platinum Fully Modular ATX 3.1 Power Supply
The NZXT C1500 Platinum 1500w Power Supply offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2x6 PCIe 5.1 cables, each capable of delivering over 600 watts to power-hungry GPUs.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
Future-Proof Power
ATX 3.1 and PCIe 5.1 compliance supports current and future high-performance GPUs and CPUs.
Dual PCIe 5.1 Connectors
Equipped with two 16-pin 12V-2x6 cables to power GPUs drawing more than 600 watts.
Digital Power
Enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
Exceptional Efficiency
Exceeding 80 Plus Platinum standards, the 94% efficiency lowers power usage and ensures quieter, cooler operation.
Magnetic Levitation Fan
NZXT Power Supply 140mm fan uses air-suspended blades to minimize noise, extend lifespan, and boost airflow.
Built with Quality
Constructed using all 105°C Japanese capacitors for unmatched reliability.
Fully Modular Design
Simplifies cable management by allowing connection of only necessary cables.

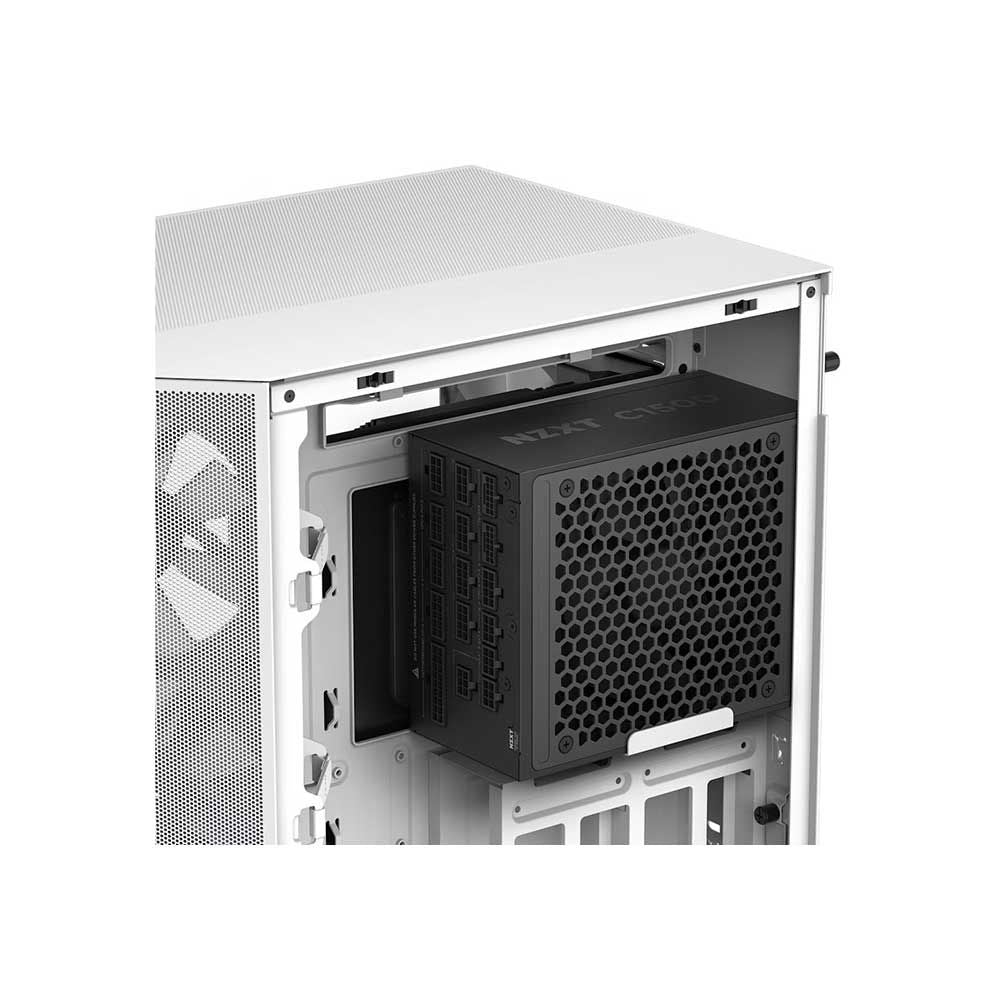

Space-Saving Size
Compact 180mm form factor optimizes case space while promoting improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
Specifications of NZXT C1500 1500W 80+ Platinum Fully Modular ATX 3.1 Power Supply
| Model: | PA-5P1BB-UK |

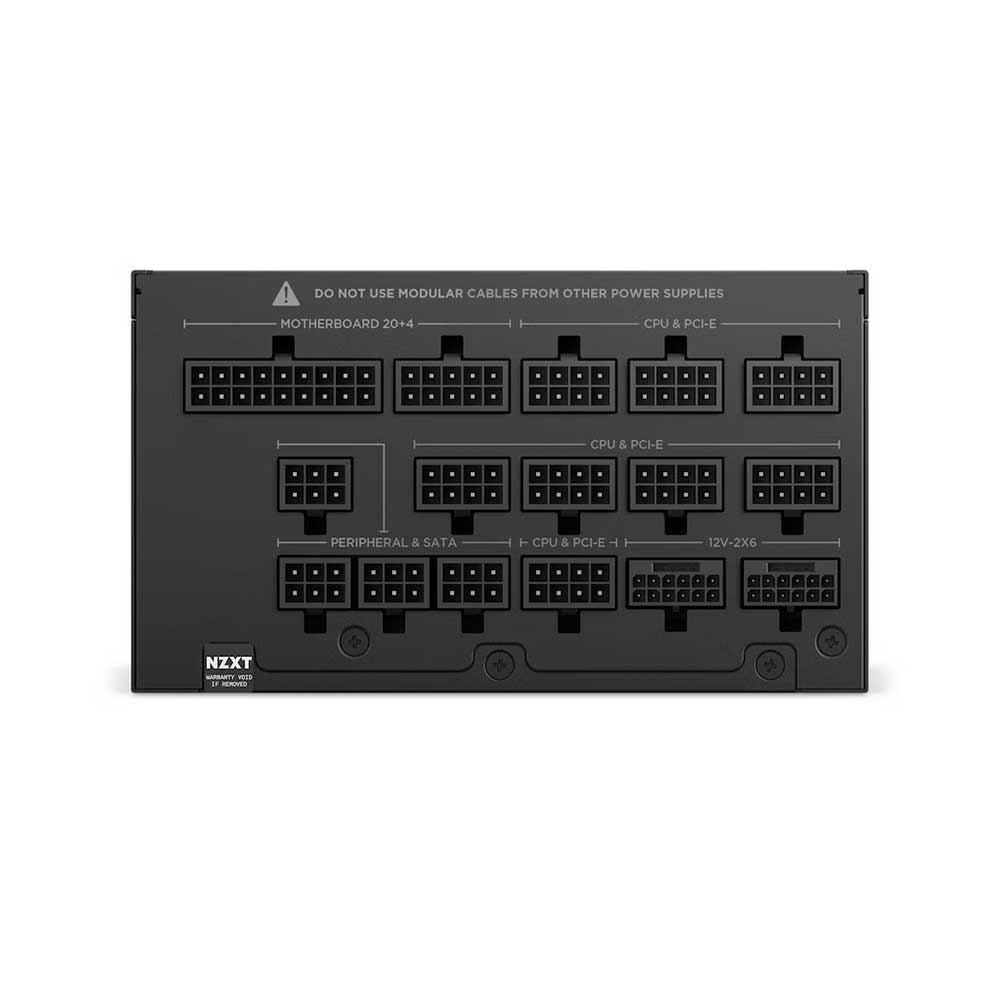

| Output Connectors | |
| 24-pin ATX Power Cable: | 1 |
| 4+4-pin CPU Power Cable: | 1 |
| 8-pin CPU Power Cable: | 1 |
| 6+2-pin PCIe Power Cable: | 6 |
| 16-pin (12+4) 12V-2x6 PCIe Cable: | 2 |
| SATA Cable: | 12 |
| Peripherals Cable: | 4 |
| Electrical Features | |
| PF Correction: | Active @0.99 |
| Protections: | OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) |
| Cable Specs | |
| 24-pin ATX Power Cable: | 600mm with nylon sleeving |
| 4+4-pin CPU Power Cable: | 700mm with nylon sleeving |
| 8-pin CPU Power Cable: | 700mm with nylon sleeving |
| 6+2-pin PCIe Power Cable: | 650mm with nylon sleeving |
| 16-pin (12+4) 12V-2x6 PCIe Cable: | 650mm with nylon sleeving |
| SATA Cable: | 500 + 150 mm with nylon sleeving |
| Peripherals Cable: | 500 + 150 mm with nylon sleeving |
| AC Input Rating | |
| 100 - 240Vac: | 15A-9A 50Hz-60Hz |
| 200 - 240Vac: | 9A 50Hz-60Hz |
| DC Output Rating | |
| 3.3V / +5V: | 22A (120W) |
| 12V: | 125A (1500W) |
| 5Vsb: | 3A (15W) |
| Total: | 1500W (115-240Vac) / 1300W (100-115Vac) |
| Energy Efficiency | |
| Rating: | 80 Plus Platinum |
| 10% loading: | 92% @115Vac |
| 20% loading: | 94% @115Vac |
| 50% loading: | 93.8% @115Vac |
| 100% loading: | 90.8% @115Vac |
| Fan Specs | |
| Dimensions: | 140 x 140 x 25 mm |
| Speed: | 2500 ± 10% RPM |
| Airflow: | 125 CFM (Tpy.) |
| Noise: | 41.0 dBA max |
| Bearing: | Magnetic Levitation Bearing (ML) |
| Operation | |
| MTBF: | 100,000 hours |
| Temperature: | 0 - 50 °C |
| Dimensions | |
| Width: | 5.91 in / 150 mm |
| Height: | 3.39 in / 86 mm |
| Depth: | 7.09 in / 180 mm |
| General | |
| Material(s): | Steel, PCB and Plastic |
| Compliance Standard: | ATX12V v3.1 / EPS12V v2.92 |
| Warranty: | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. ***Images are for representation purpose only |
