NOCTUA NH-U12S Redux High Performance Single Tower CPU Air Cooler (Black)

Features of NOCTUA NH-U12S Redux High Performance Single Tower CPU Air Cooler (Black)

Noctua NH-U12S Redux High Performance CPU Cooler with LGA 1700 socket

True to the spirit of Noctua redux line, the NH-U12S redux is a streamlined, accessibly priced version of the iconic NH-U12S that has established itself as a benchmark for slim, highly compatible 120mm CPU coolers. The redux version uses the same proven heatsink layout that guarantees 100% compatibility with tall RAM modules as well as excellent case and PCIe compatibility. Thanks to the popular NF-P12 redux-1700 PWM fan with automatic speed control, it provides high performance under load and runs whisper-quiet at idle. At the same time, Noctua’s renowned, professional SecuFirm2™ mounting system and the pre-applied NT-H1 thermal compound make installation child’s play. Backed up with Noctua’s trusted 6-year manufacturer’s warranty, the NH-U12S redux is a smart, affordable choice for a quiet, high-quality 120mm cooler.

Cooler Specification

Socket compatibility Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP78), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM4

Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 45 mm
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 71 mm
Weight (with fan) 710 g
Material Nickel plated Copper (base and heat-pipes), aluminium (cooling fins)
NSPR 129
Max. TDP see NSPR
Fan compatibility 120x120x25

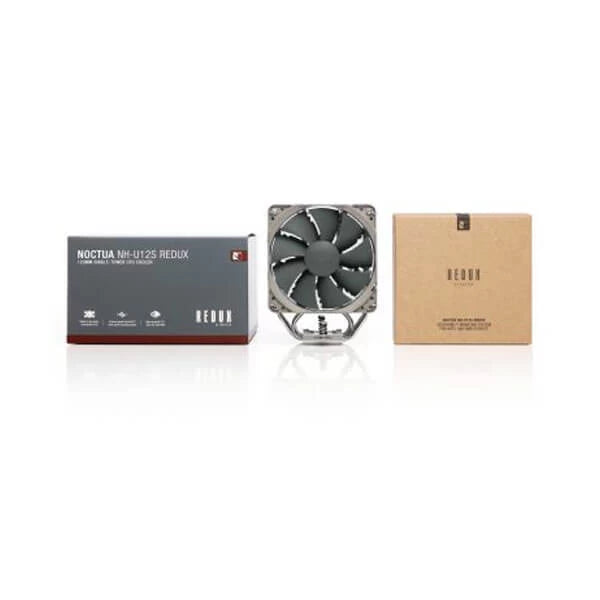

Scope of delivery
NH-U12S redux heatsink
NF-P12 redux-1700 PWM fan
4x NA-AVP1 chromax.grey anti-vibration pads
Fan mounting clips (one pair)

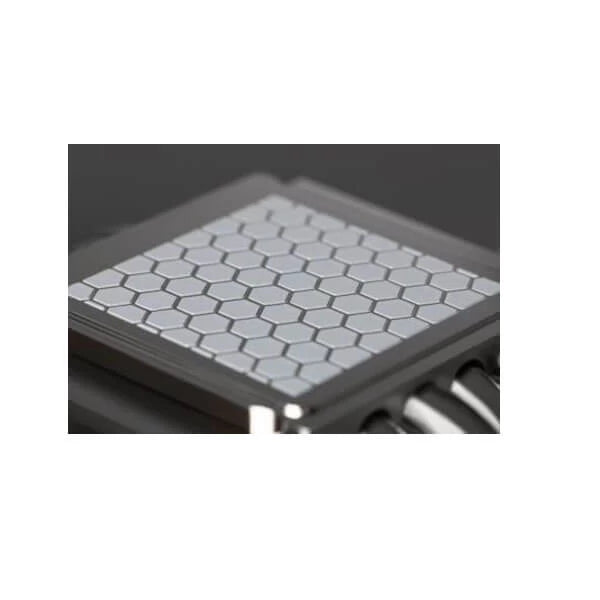

NT-H1 high-grade thermal compound (pre-applied)
SecuFirm2™ mounting kit
Warranty 6 Years

FAN Specification

Model NF-P12 redux-1700 PWM
Bearing SSO
Max. rotational speed (+/- 10%) 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
Max. airflow 120,2 m³/h
Max. acoustical noise 25,1 dB(A)
Voltage range 12 V
MTTF > 150.000 h

Specifications of NOCTUA NH-U12S Redux High Performance Single Tower CPU Air Cooler (Black)
