NOCTUA NH-P1 Single Tower CPU Air Cooler

Features of NOCTUA NH-P1 Single Tower CPU Air Cooler

The NOCTUA NH-P1 is Noctua’s first passive CPU cooler and has been custom-designed for fanless operation from the ground up: in enclosures with good natural convection, its six heatpipes and thick, widely spaced heatsink fins enable it to cool modern high-end CPUs with low to moderate heat dissipation completely passively. For further enhanced performance or semi-passive setups that only spin up their fans when necessary, the NH-P1 can be outfitted with a low-speed, ultra-quiet 120mm fan such as the NF-A12x25 LS-PWM. Topped off with the professional Torx-based SecuFirm2+ mounting system, Noctua’s award-winning NT-H2 thermal compound and a 6-year manufacturer’s warranty, the NH-P1 is the ideal cornerstone for premium-grade fanless or semi-passive builds.

Note: While the NH-P1 provides first-rate performance for a passive cooler, it is not suitable for overclocking or CPUs that create high heat loads.

Please note that the TDP (Thermal Design Power) rating or amount of heat dissipation that the cooler can handle not only depends on the chassis and various other factors such as ambient temperature or other components inside the system, but also generally varies from CPU model to CPU model.

Please also note that the NH-P1 strictly requires either a fanless PC case with good natural convection, an open benchtable-type setup or a PC case with fans in order to achieve its full performance. If necessary, Noctua recommends adding a near-inaudible 120mm fan like the NF-A12x25 LS-PWM to the heatsink for improved performance headroom.

Designed for passive cooling from the ground up

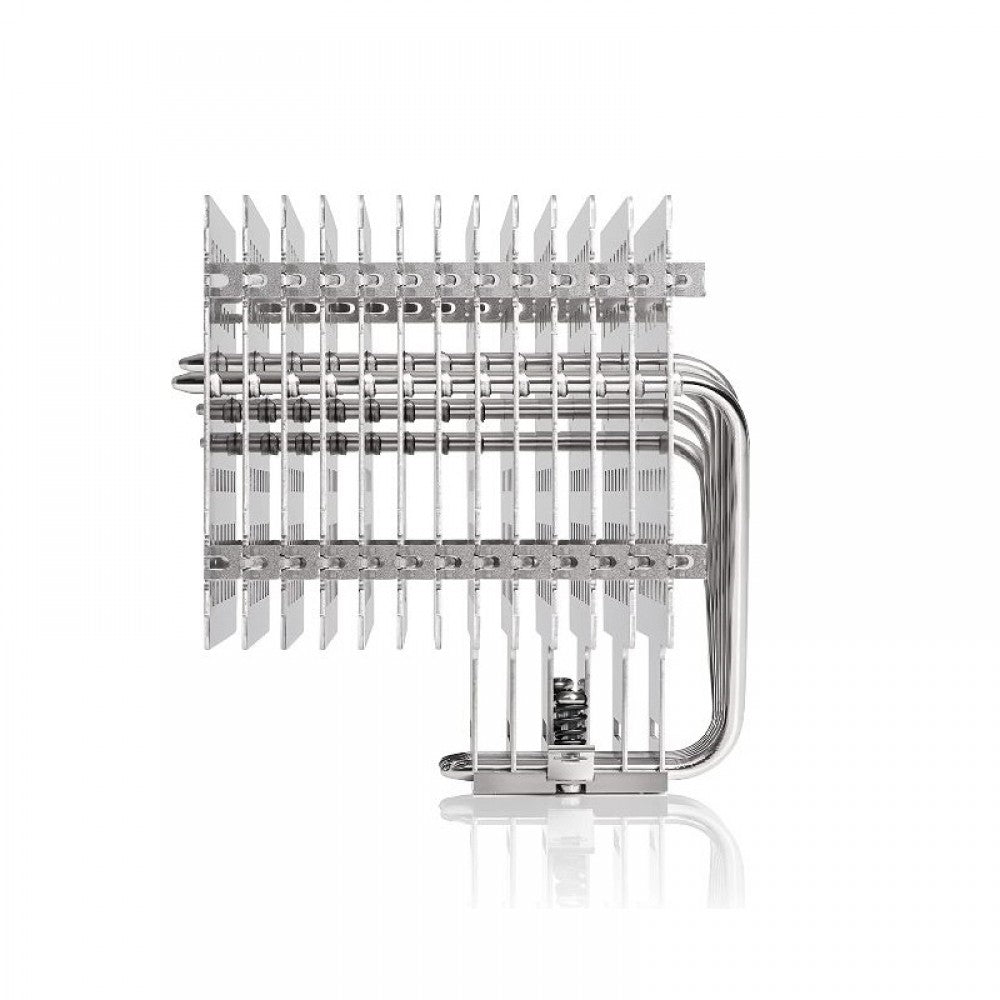

The NH-P1 isn’t just a regular heatsink without a fan: it has been designed for fanless operation from the ground up, featuring much thicker, much more widely spaced fins in order to achieve both the mass and the minimal airflow resistance that are required in order to excel in natural convection cooling.

Fanless cooling for high-end CPUs

In fully optimised fanless systems, the NH-P1 is capable of cooling high-end CPUs with low to moderate heat dissipation using natural convection only. This makes it ideal for powerful builds that have no moving parts and run absolutely silent.

Increased performance headroom with extra fan

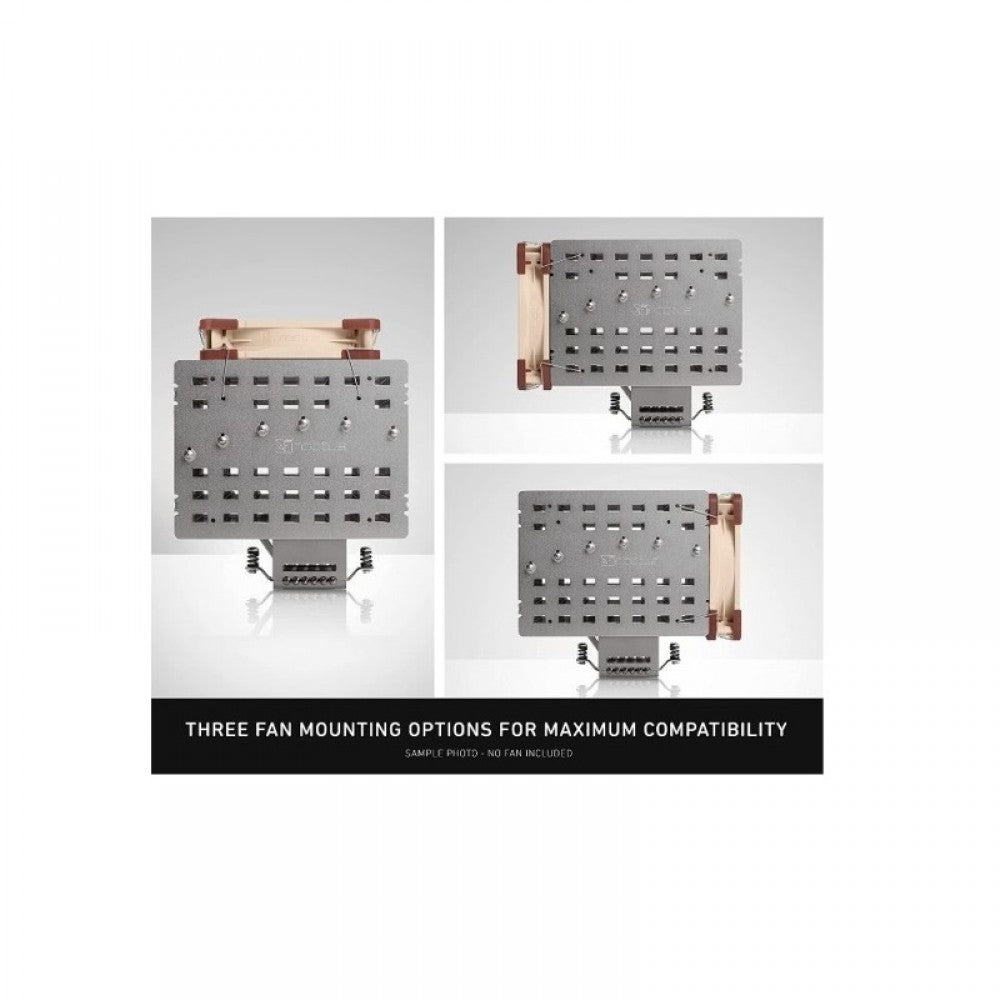

The NH-P1 can be fitted with an extra 120mm fan such as the near inaudible NF-A12x25 LS-PWM in order to increase its maximum dissipation capacity significantly, ideal for short spikes of higher heat loads or semi-passive systems that only start their fans when necessary!

No noise, less dust, 100% fail-proof

Fanless cooling doesn’t only have the advantage of being completely silent: if you’re relying on natural convection only and don’t have case fans pushing air through a case, less dust will accumulate in filters or inside the system. Last but not least, with no moving parts such as fans or pumps that could possibly fail, the NH-P1 is as fail-proof as it can be.

Asymmetrical layout for optimal PCIe compatibility

As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-P1 is offset towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboards.

100% RAM clearance on LGA1200 and AM4

Due to its asymmetric design, the NH-P1 does not overhang the RAM slots on Intel LGA1200, LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, it overhangs the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 45mm in height.

SecuFirm2+™ Torx-based multi-socket mounting system

Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Torx-based, the professional SecuFirm2+ version with its included screwdriver provides even better handling and durability. Socket support includes Intel LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1.

Compatibility with past and future sockets

Thanks to Noctua’s SecuFirm™ ecosystem, the NH-P1 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-P1 a safe long-term investment.

NT-H2 next-gen thermal compound

In high-end passive cooling, every degree counts. This is why the NH-P1 includes a tube of Noctua’s next-generation NT-H2 thermal compound that provides even better performance than the award-winning NT-H1, allowing you to achieve the best possible passive cooling results.

Soldered interface between heatpipes and fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-P1’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua CPU coolers, the NH-P1 is built to the highest standards and comes with a full 6-year manufacturer’s warranty.

Specifications of NOCTUA NH-P1 Single Tower CPU Air Cooler
