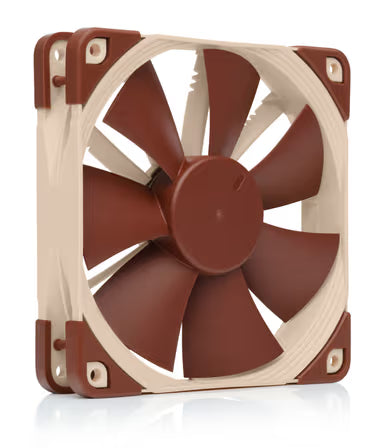

- NOCTUA NF-F12 PWM 120mm Non RGB Cabinet Fan ( Brown )
Description
Features of NOCTUA NF-F12 PWM 120mm Non RGB Cabinet Fan ( Brown )
Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.
Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf Impeller
Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.
Stepped Inlet Design
Noctua’s Stepped Inlet Design is an advanced aerodynamic design measure first introduced with the NF-F12 fan. By adding turbulence to the fan’s influx, the Stepped Inlet Design facilitates the transition from laminar to turbulent flow. This measure has an effect similar to the dimple structure of a golf ball in so far as it leads to better flow attachment to the frame, which allows the impeller to suck in more air and hence improves overall airflow efficiency.
In addition to these aerodynamic benefits, the Stepped Inlet Design also reduces tonal intake noises caused by laminar inflow due to it being transformed to turbulent flow, which produces a more broadband noise profile. This way, the Stepped Inlet Design helps to refine the fan’s acoustic qualities by letting it blend into the background noise more easily and making it more agreeable to the human ear.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
SSO2 Bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Low-Noise Adaptor
The NF-F12 is supplied with a (L.N.A.) that reduces the maximum fan speed from 1500 to 1200rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.
Ultra-Low Power Consumption
The NF-F12 draws only 0.6W, which is more than 50% less than many fans in the same speed range. This doesn't only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-F12 after 5 years of continuous use.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150,000 hours and comes with a full 6-year manufacturer's warranty.
Specification of NOCTUA NF-F12 PWM 120mm Non RGB Cabinet Fan ( Brown )
| Model No | NF-F12 |
| Size (Form factor) | 120 x 120 x 25 mm (square) |
| Speed range | 0 – 1500 rpm |
| Airflow (max.) | 93.4 m³/h (54.97 CFM) |
| Acoustical noise (max.) | 22.4 dB(A) |
| Static pressure (max.) | 2.61 mm H₂O |
| Rated voltage | 12 V |
| Input power (typical) | 0.4 W |
| Connector | 4-pin |
| Colour | Brown |
| Warranty | 6 years |
