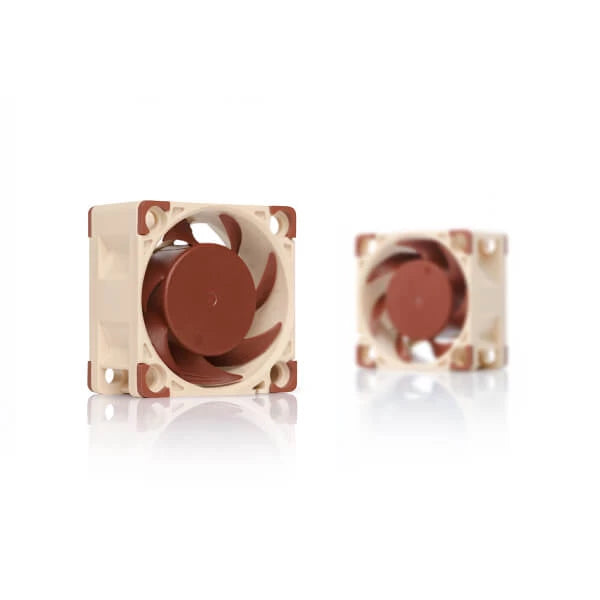

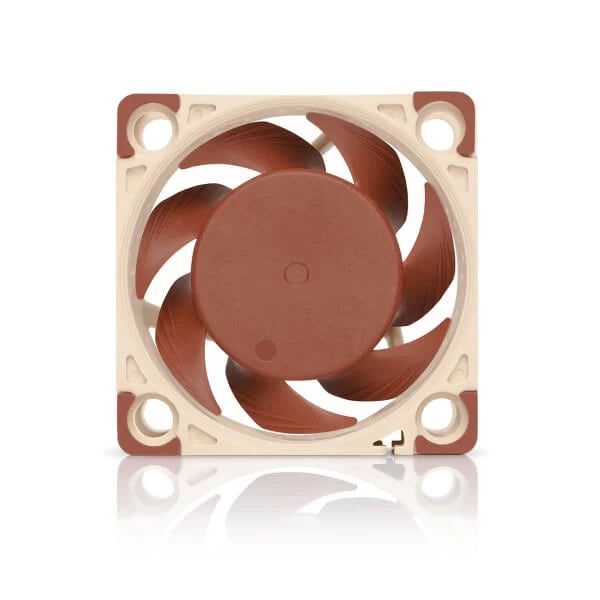

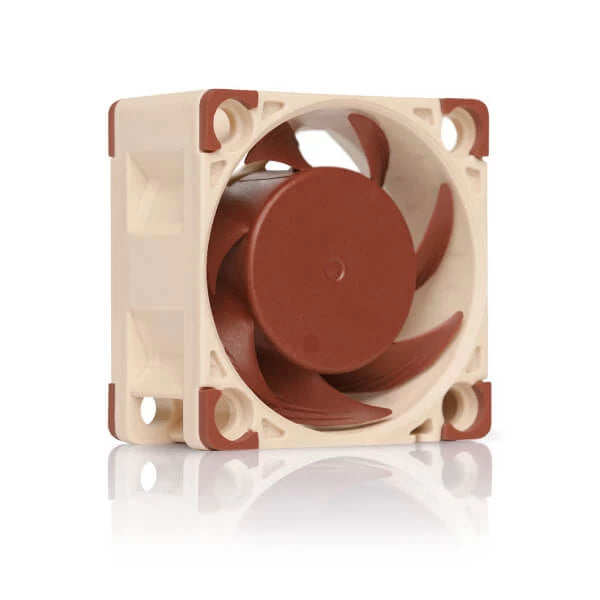

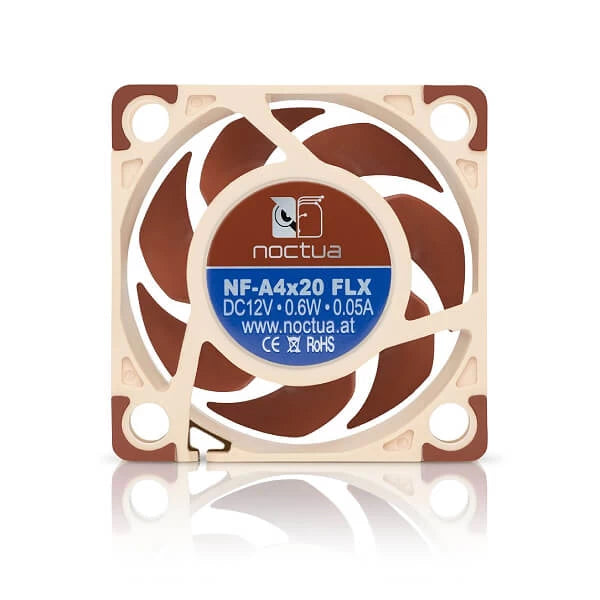

NOCTUA NF-A4x20 FLX 40mm Non-RGB Cabinet Fan (Single Pack)

Features of NOCTUA NF-A4x20 FLX 40mm Non-RGB Cabinet Fan (Single Pack)

1. 40x20mm size
2. Flow Acceleration Channels
3. AAO frame
4. Stepped Inlet Design
5. Inner Surface Microstructures
6. Integrated Anti-Vibration Pads
7. Smooth Commutation Drive 2
8. SSO2 bearing
9. 3 speed settings for full flexibility
10. Extensive cabling options

40x20mm size
Compared to Noctua’s award-winning NF-A4x10, the NF-A4x20 is twice as thick, which allows for increased static pressure performance and makes the NF-A4x20 ideal for demanding applications with high flow resistance.

Flow Acceleration Channels
The NF-A4x20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

Smooth Commutation Drive 2
The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.

SSO2 bearing
The NF-A4x20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

3 speed settings for full flexibility
Providing 5000, 4400 and 3700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A4x20 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

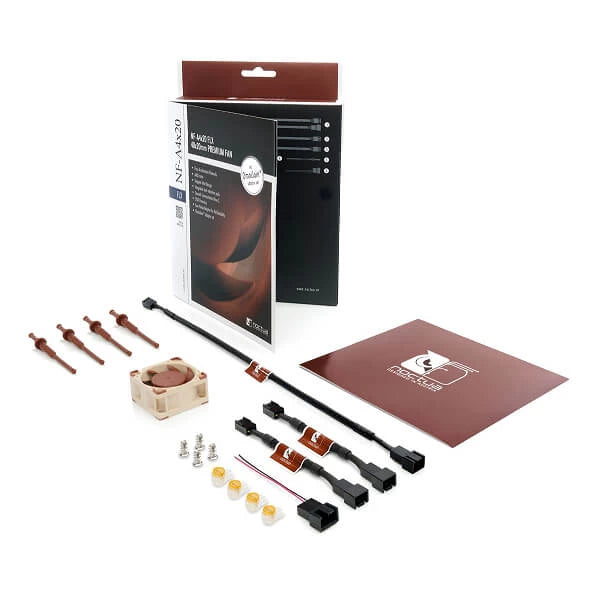

OmniJoin™ adaptor set
Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x20 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x20 to proprietary fan headers!

Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows the connection of the fan directly to the power supply.

6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x20 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.
