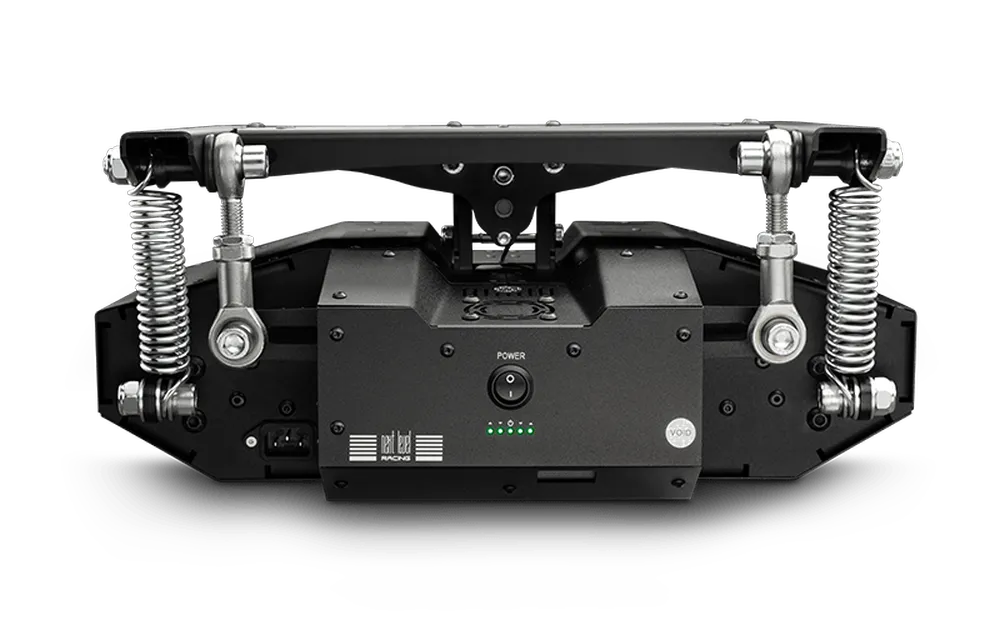

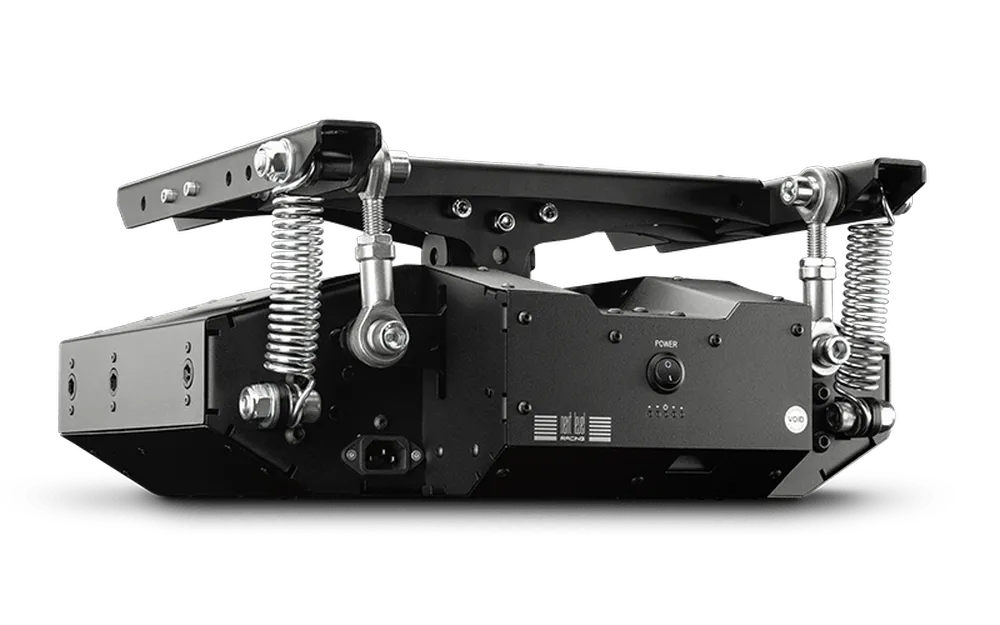

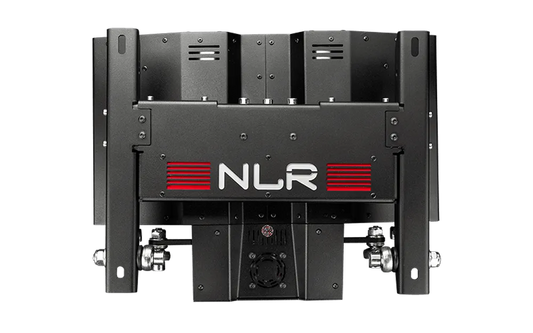

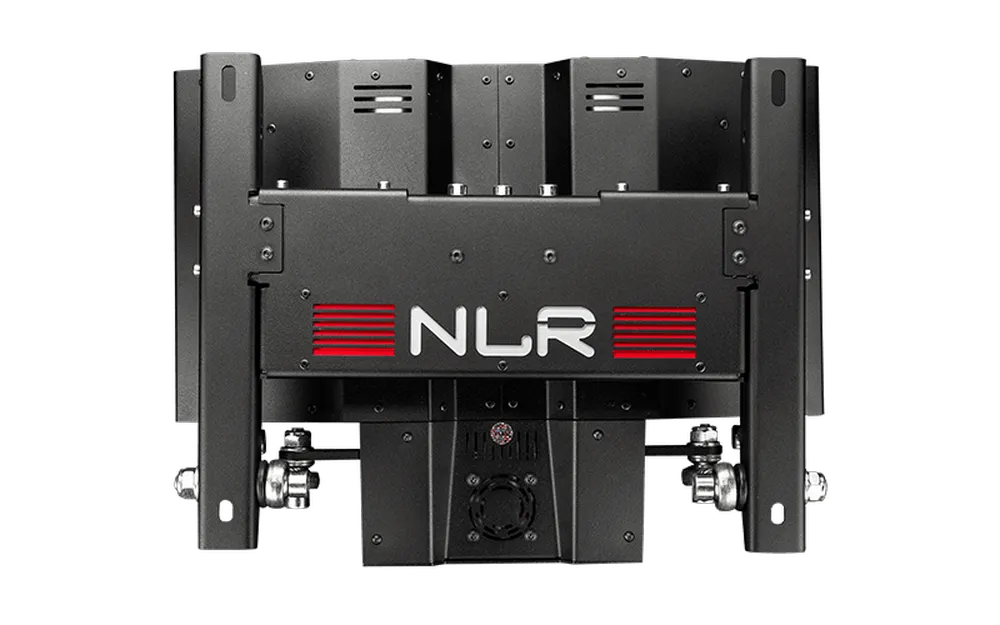

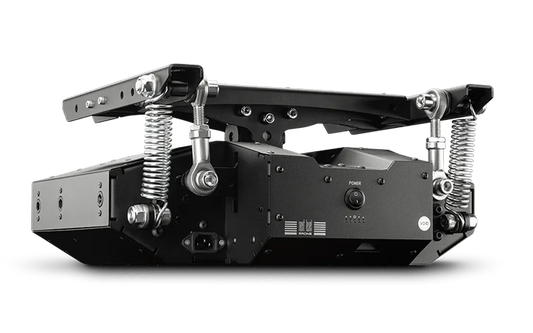

NEXT LEVEL Racing Motion Platform V3 (NLR-M001V3)

Features of NEXT LEVEL Racing Motion Platform V3 NLR-M001V3 (39)

The Next Level Racing® Motion Platform V3 is designed purely for customers wanting the ultimate immersion and the most realistic simulation experience available. The Next Level Racing® Motion platform V3 puts you on the racetrack or flight tarmac with incredible precision, realism and immersion. Combine the Next Level Racing® Motion Platform V3 with any VR headset on the market for an incredible simulation experience.

European made, professional platform designed in collaboration with world leading commercial motion engineers

Specially designed for just the seat to move as common world’s most advanced and high end motion simulators including CXC Simulations©

Incredibly fast, yet smooth realistic movements using professional motion cueing profiles and software engine

The most compact design in the world yet it’s incredibly powerful - it can fit within the space of your existing cockpit without any additional space required

Can support up to 130 kg or 285 lb users

Simple to use with dedicated click and play Next Level Racing® Platform Manager Software compatible with all major racing and flight titles on PC with simple USB plug in

VR Headway technology built into the Platform Manager Software

Passive and active cooling method with adaptive fan speed control to ensure the platform can even be used for more demanding purposes such as commercial centres and events whilst not overheating

Electromagnetic motor shaft brakes ensures zero movement of the platform when the system is switched off.

Built in power source, including an active PFC function to protect from short circuit/overload/overvoltage and overheating.

Acoustical panels inside to reduce noise of operation even lower than the V1 and V2 which were both known for being quietest platforms on the market

Quality European Manufacturing and backed with a 2-year warranty

Max Angular Displacement for Pitch & Roll : +- 10°

Max Speed : 20°/s, Max Acceleration : 360°/s2

Power Source : 110-240VAC 50-60HZ

Max Power Consumption : 350W

Max User Weight : 130 Kg

Ambient Temperatures : -20° to +60°C

Full Performance Temperatures : +5°C to +35°C

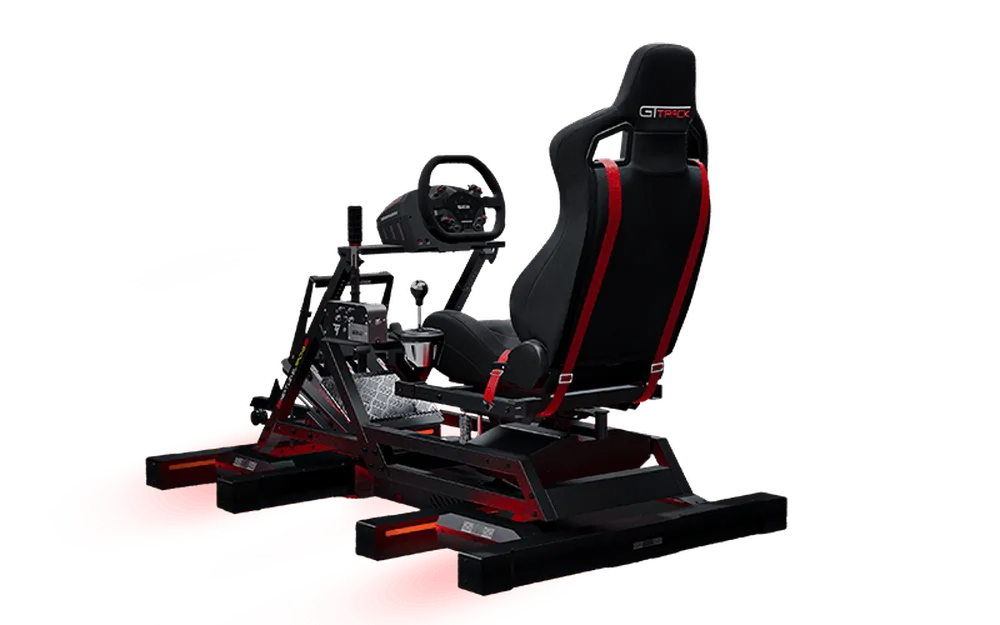

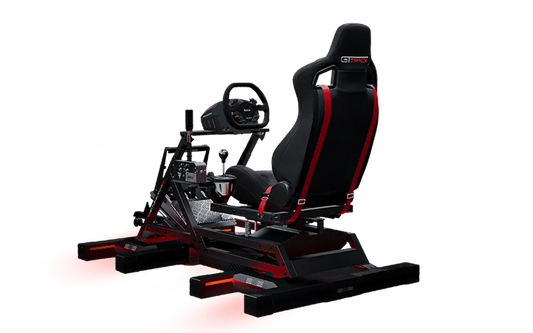

Direct bolt on to all Next Level GTultimate and Flight Simulators. (Designed to easily adapt to other cockpits)

Product Weight – 25 kg or 55 lbs

Boxed Dimensions – 52 x 49 x 26 cm or 21” x 19” x 10”

Boxed Weight – 28 kg or 62 lbs

Part Number NLR-M001V3
