Description
Feature of MSI Z490-A Pro DDR4
- Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector
- Supports 9th / 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 4400(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Set Core Power Free: Core Boost, 8 4 pin CPU power connector, Core Boost, DDR4 Boost
- Audio Boost: Reward your ears with studio grade sound quality.
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Intel® LAN:Premium network solution from Intel® for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
- Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboard’s heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboard’s heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
LIGHTNING GEN 4 SUPPORT, READY 4 THE FUTURE !!!
MSI Z490-A pro DDR4 motherboards adopt tons of components, enhanced layout placement, and PCB design dedicated to PCI-E Gen 4 solution, ensuring higher bandwidth and faster transfer speeds stability, ready 4 the future!
Specifications of MSI Z490-A Pro DDR4
PROCESSOR | Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket |
CHIPSET | Intel® Z390 Chipset |
MEMORY |
4 x DDR4 memory slots, support up to 128GBSupports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Supports Dual Channel mode |
SLOTS |
2 x PCIe 3.0 x16 slots 4 x PCIe 3.0 x1 slots 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only |
ONBOARD GRAPHICS |
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x DisplayPort, supports a maximum resolution of 4096x2304@60Hz |
MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
STORAGE |
Intel® Z390 Chipset 6 x SATA 6Gb/s ports 1 x M.2 slot (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory ReadyThe SATA2 will be unavailable when installing M.2 SATA device into M.2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
RAID |
Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
Intel® Z390 Chipset 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel) 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details. |
AUDIO |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
LAN | 1 x Intel® I219-V Gigabit LAN controller |
INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x M.2 slots (1 M-Key slot,1 E-Key slot) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 1 x Serial Port connector 1 x Clear CMOS jumper 1 x Parallel port connector 1 x TPM module connector 1 x thunderbolt Add-on card connector 1 x Front OC button connector |

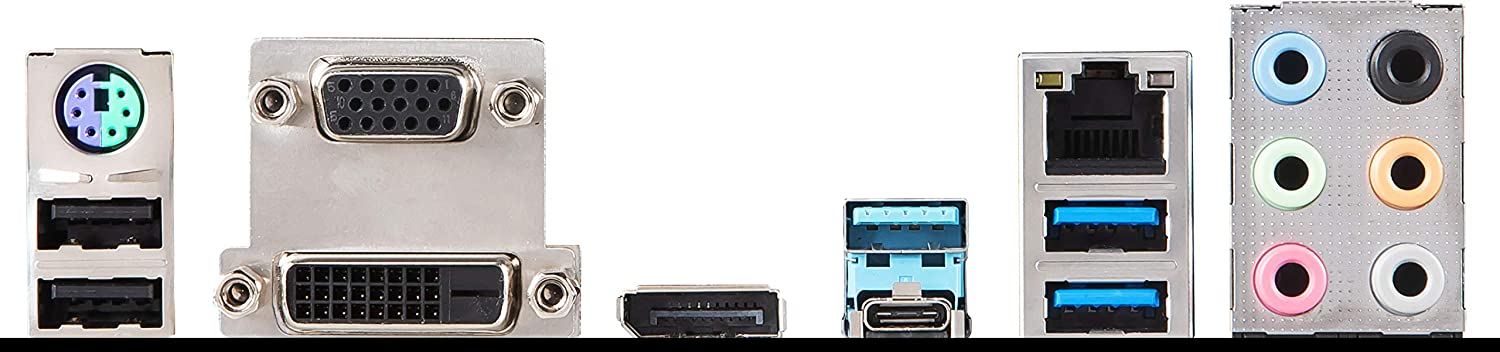

BACK PANEL PORTS |
PS/2 Combo VGA USB 3.1 Gen2 Type A C LAN HD Audio Connectors USB 2.0 DVI-D Displayport USB 3.1 |
DIMENSIONS |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
MOUNTING | 9 mounting holes |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
