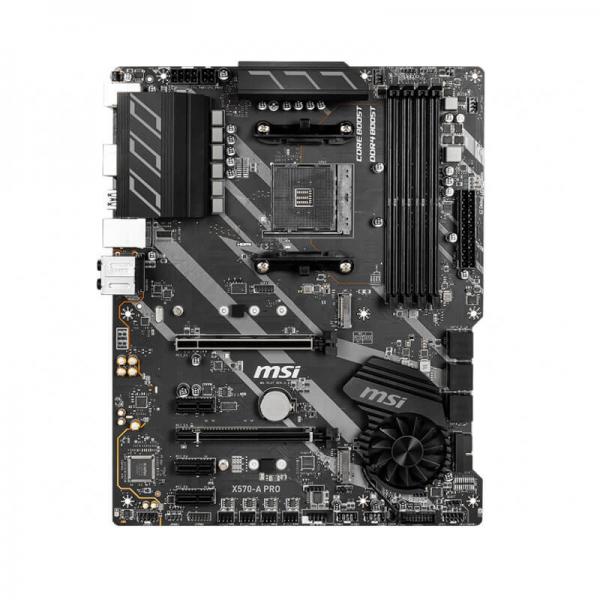

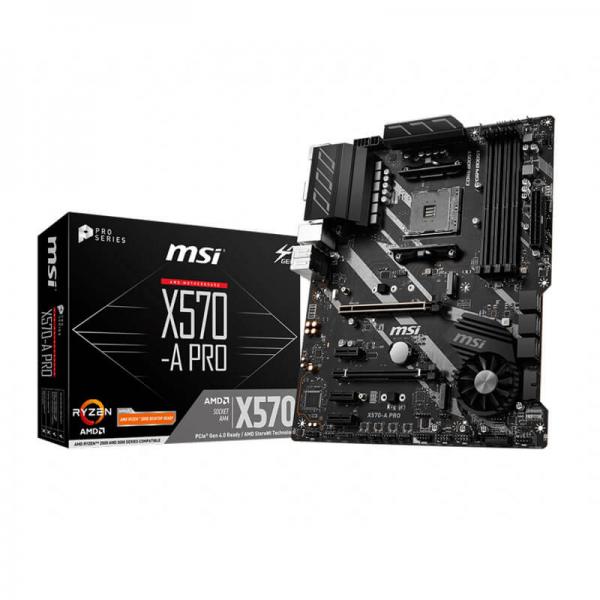

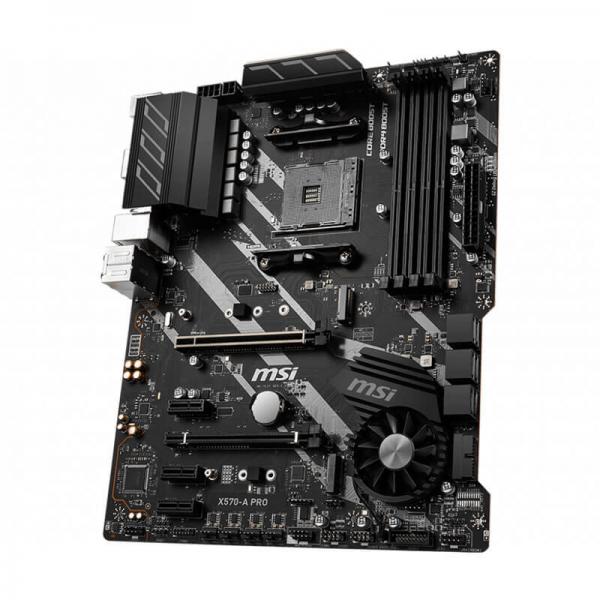

- MSI Z570-A pro DDR4 AMD Motherboard
Description
Feature of MSI Z570-A pro DDR4
- Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
- Supports 4 DIMMs, Dual Channel Memory DDR4
- Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
- Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Core Boost, 8 4 pin CPU power connectors, DDR4 Boost
- Audio Boost 4 with NAHIMIC: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
- AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds
DIY FRIENDLY
MSI Z570-A pro DDR4 motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
STAY COOL AND SUSTAIN PERFORMANCE
X570-A Pro has Cooling is essential for a high performance PC to sustain intense workloads. X570-A PRO features a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.
TROUBLESHOOTING FRIENDLY DESIGN
MSI X570-A Pro motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup.
ENHANCED PERFORMANCE
MSI X570-A Pro motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
FAST AND FUTURE-READY STORAGE
Connect any ultra-fast storage device and get into the game sooner.
Specifications of MSI Z570-A pro DDR4
| PROCESSOR | Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4 |
| CHIPSET | AMD® X570 Chipset |
| MEMORY |
4 DDR4 memory slots, support up to 128GB (depending on the processor)3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODEDual channel memory architecture Supports non-ECC UDIMM memory ports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer to Compatibility for more information on compatible memory |
| SLOTS |
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1)3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 2nd Gen AMD Ryzen™ support PCIe 3.0 x16 mode Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) 3 x PCIe 3.0 x1 slots PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. The speeds may vary for different devices |
| ONBOARD GRAPHICS |
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors Maximum shared memory of 2048 MB |
| MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
| STORAGE |
6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)M2_1 slot (from AMD® Processor)Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (from AMD® X570 Chipset)Supports PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® Processor 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
| LAN | 1 x Realtek® 8111H Gigabit LAN Controller |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs |

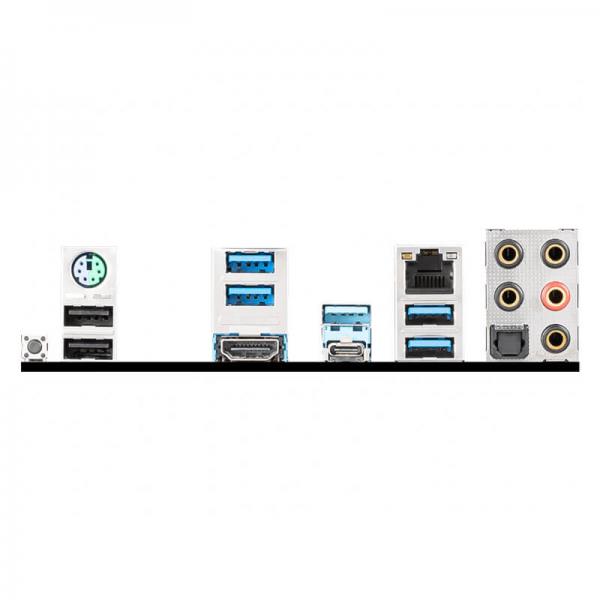

| BACK PANEL PORTS |
Keyboard / Mouse USB 3.2 Gen1 Type-A LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Ports HDMI Port USB 3.2 Gen2 Ports (Type-A C) USB 3.2 Gen1 Type-A Ports Optical S/PDIF out |
| DIMENSIONS |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
