- MSI X399 Gaming Pro Carbon Ac DDR4 AMD Motherboard
Description
Feature of MSI X399 Gaming Pro Carbon DDR4
- Supports AMD® RYZEN™ THREADRIPPER™ Series Processors
- Support 8 DIMMs, Quad Channel DDR4 3600 (OC)
- Designed for Extreme Performance: 10 3 power phase, DIGITALL POWER Design
- MYSTIC LIGHT: 16.8 million colors / 17 effects controlled in one click. MYSTIC LIGHT SYNC support both RGB and RAINBOW LED strip
- 3D Printing Support: exchangeable cover and 3D X-MOUNTING screws
- Lightning Fast Game experience: 3x TURBO M.2 with M.2 Shield, LIGHTNING USB 3.1 GEN2
- VR READY and VR BOOST: Best virtual reality game experience without latency, reduces motion sickness. Supports Nahimic VR
- AUDIO BOOST 4 with NAHIMIC 2 : Reward your ears with studio grade sound quality for the most immersive gaming experience
- DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost
- GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 4-Way NVIDIA SLI™ & 4-Way AMD Crossfire™
- WHQL certified for Windows 10
Specifications of MSI X399 Gaming Pro Carbon DDR4
PROCESSOR | Supports 1st and 2nd Gen AMD® RYZEN™ THREADRIPPER™ Series Processors for SocketTR4 |
CHIPSET | AMD® X399 Chipset |
MEMORY |
8 x DDR4 memory slots, support up to 128GB Quad channel memory architecture1 Supports DDR4 3600 (OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2800(OC)/ 2667(OC)/ 2400/ 2133 MHz2 Supports ECC UDIMM memory Please refer the DIMM Slots section for more details. For the latest information about memory, please visit Msi official website |
SLOTS |
2x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 2x PCIe 3.0 x8 slots (PCIE_3, PCIE_6) 2x PCIE 2.0 x1 Slots |
MULTI-GPU |
Supports 4-Way NVIDIA® SLI™ Technology Supports 4-Way AMD® CrossFire™ Technology |
STORAGE |
AMD® X399 Chipset 8 x SATA 6Gb/s ports AMD® RYZEN THREADRIPPER Series Processors 3 x M.2 ports (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices Supports PCIe 3.0 x4 NVMe storage |
RAID |
AMD® X399 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
USB |
ASMedia® ASM3142 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel AMD® X399 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD® CPU 8 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1 x Intel® I211 Gigabit LAN controllers |
WIFI & BLUETOOTH |
Intel® Dual Band Wireless-AC 8265 card Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.. Supports Dual Mode Bluetooth® 2.1, 2.1 EDR, 3.0, 4.0, BLE, 4.2 |
INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector1 8 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 4 x 4-pin system fan connectors 2 x Front panel connectors 1 x Front panel audio connector 2 x RGB LED connector 1 x TPM module connector 1 x LED demo connector 1 x Rest Button 1 x Power Button 1 x OC Button 1 x Chassis Intrusion connector 1 x clear CMOS header Provides additional power to PCIe x16 slots |

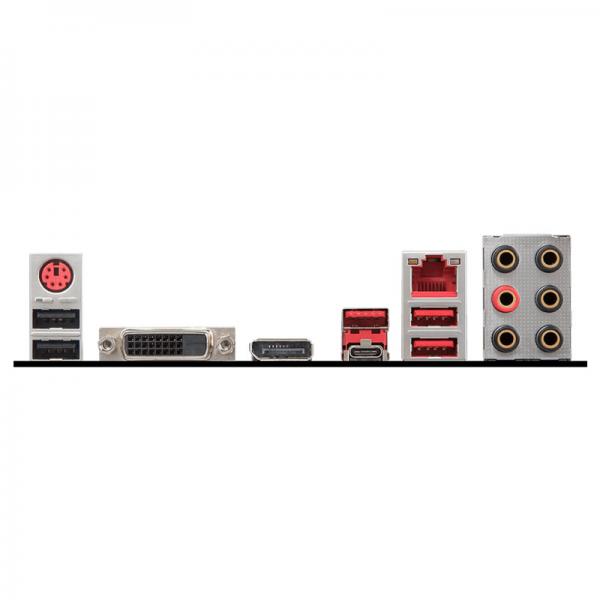

BACK PANEL PORTS |
Clear CMOS Button Keyboard / Mouse USB 3.1 Gen1 USB 3.1 Gen1 Intel® Gigabit LAN Golden Audio Connectors Flash BIOS Button USB 2.0 / Flash BIOS Button USB 3.1 Gen2 Type-A/C Optical S/PDIF-Out |
DIMENSIONS |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
MOUNTING | 9 mounting holes |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
